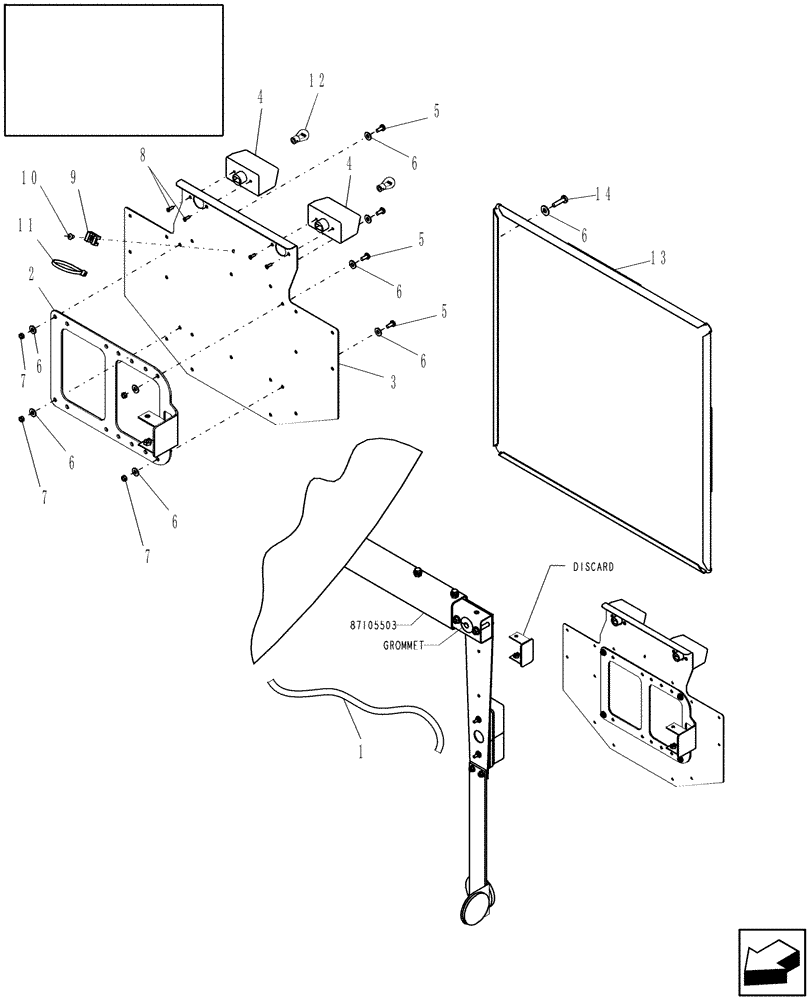

Запчасти Case IH 8010 (55.404.34) - LIGHTING, LICENSE PLATE - EU (55) - ELECTRICAL SYSTEMS

1

87108347

WIRE HARNESS

License Plate Illumination, EU

1шт.

2

87284856

BRACKET

1шт.

3

87001317

RETAINING PLATE

Mounting, License

1шт.

4

84067964

NUMBER PLATE LAMP

Includes: Ref 12

2шт.

5

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

4шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

7

86508813

NUT,M5, Cl 8

4шт.

8

9835804

SCREW,Oval HD, M3.5 x 1.3 x 13mm

4шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

1шт.

10

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

1шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

12

86616250

BULB,12V, 5W

2шт.

13

84607381

PLATE

1шт.

France Only

1шт.

14

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.
