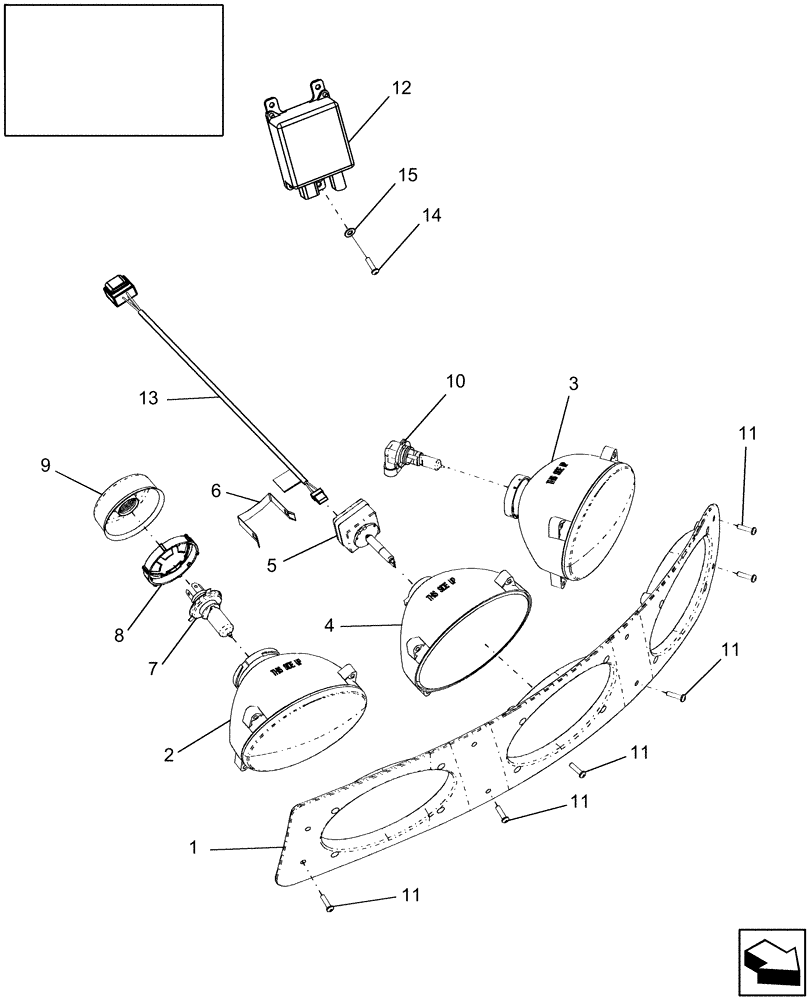

Запчасти Case IH 8010 (55.404.12) - HID CAB ROOF LIGHTS (55) - ELECTRICAL SYSTEMS

1

86975104

BEZEL

L.H., Fixed Cab Light - SHOWN

1шт.

1

86975551

BEZEL

R.H., Fixed Cab Light

1шт.

2

87106352

HEADLAMP,Halogen, 12V, 55W, Clear

INNER

1шт.

3

87106353

HEADLAMP,Halogen, 12V, 55W, Clear

OUTER

1шт.

4

87106354

HEADLAMP

CENTER

1шт.

5

87722023

BULB,HID, 85V, 35W

HID - CENTER

1шт.

6

87106287

CLIP

Locking

1шт.

7

87283179

BULB,H4, 12V, 60/55W

H4-12V - INNER

1шт.

8

87106302

COLLAR

1шт.

9

87106301

SEAL

1шт.

10

87106291

BULB

9005-12V - OUTER

1шт.

11

87106305

SCREW

12шт.

12

87106306

BALLAST

1шт.

Prior To PIN HAJ202923

1шт.

12

87475204R

REMAN ELECT CONTROL

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Both AXIAL-FLOW COMBINE, Reman for New PN 87106306

1шт.

12

87475204C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

87722022

BALLAST

1шт.

PIN HAJ202923 & After

1шт.

13

87108021

WIRE HARNESS

HID Cab Roof Lights

1шт.

Prior To PIN HAJ202923

1шт.

13

87722021

WIRE HARNESS

HID Cab Roof Lights

1шт.

PIN HAJ202923 & After

1шт.

14

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

6шт.

15

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

6шт.
