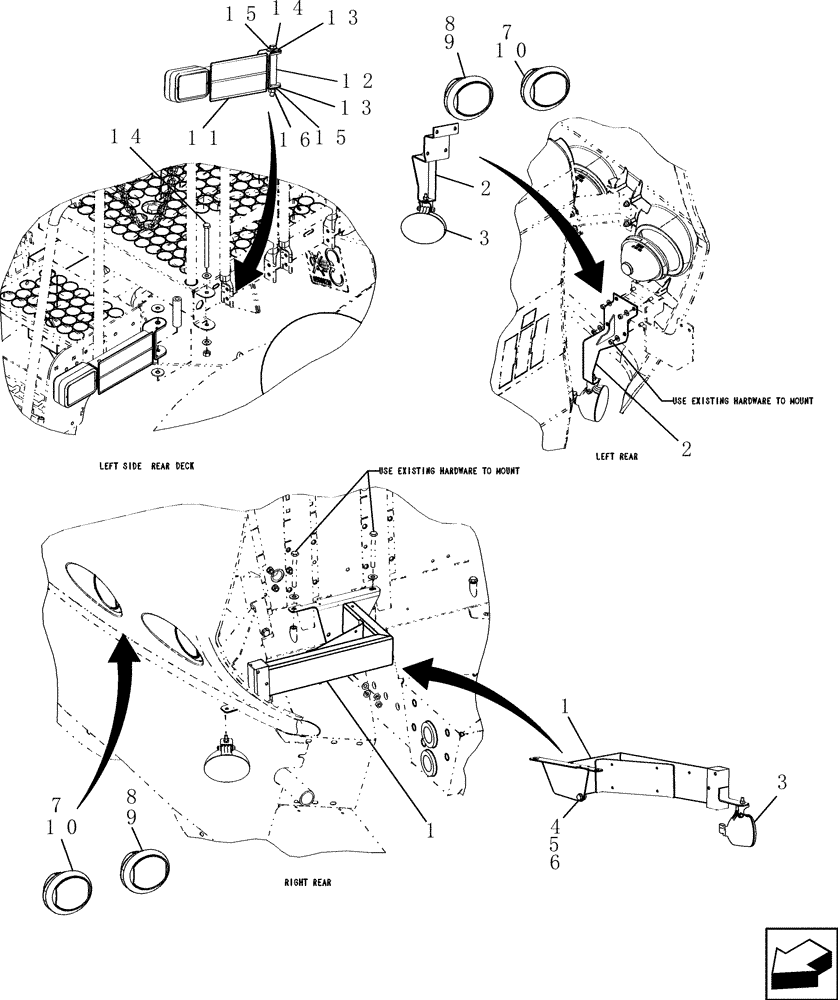

Запчасти Case IH 8010 (55.404.10) - LIGHTS, REAR - STANDARD FOR NA, AUSTRALIA, RUSSIA - 7010/8010 (55) - ELECTRICAL SYSTEMS

1

87284252

SUPPORT

R.H.

1шт.

2

87280783

SUPPORT

L.H.

1шт.

3

87284332

WORK LAMP,Halogen, 12V, 50W, Clear

Rear; Includes: Bulb

2шт.

3

139119A1

BULB,#886, 12V, 50W

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

5

100016

NUT,M10 x 1.5, Cl 8

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

86995359

LAMP

Rear, Red

2шт.

8

86995360

LAMP

Rear, Amber

2шт.

9

87106261

BULB,12V

3156

2шт.

10

87106262

BULB

3157

2шт.

11

87283298

WARNING LIGHT

L.H. Platform

1шт.

12

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

1шт.

13

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

14

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

1шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

9706685

NUT,M12 x 1.75, Cl 8

1шт.
