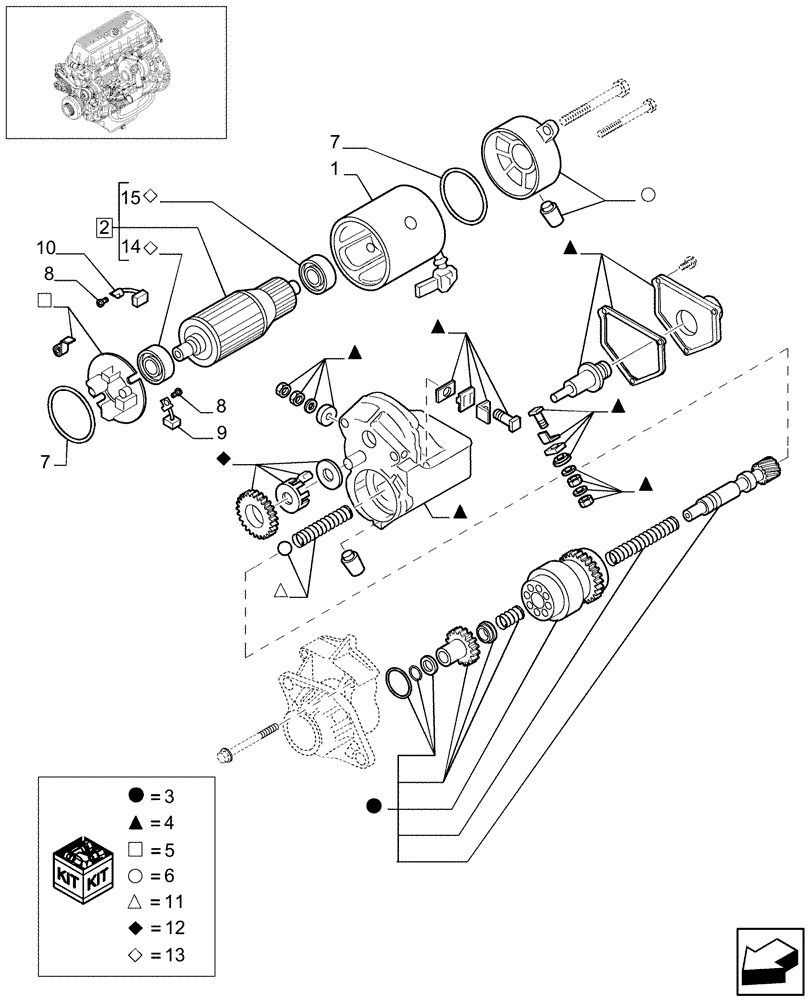

Запчасти Case IH 8010 (55.201.04) - STARTER MOTOR BREAKDOWN - 8010/9010 (55) - ELECTRICAL SYSTEMS

1

42471438

STATOR

Winding

1шт.

2

42471439

ARMATURE

KIT

1шт.

3

42471440

KIT, STARTER MTR REP

1шт.

4

42471441

KIT, STARTER MTR REP

1шт.

5

42471442

KIT, STARTER MTR REP

1шт.

6

42471443

HOUSING

1шт.

7

42471444

O-RING

2шт.

8

42471445

SCREW

4шт.

9

42471446

BRUSH, COMMUTATOR

BRUSH

2шт.

10

42471447

BRUSH, COMMUTATOR

BRUSH

2шт.

11

42471378

KIT, STARTER MTR REP

1шт.

12

42471450

KIT, STARTER MTR REP

1шт.

13

42471451

KIT, STARTER MTR REP

1шт.

13

42546503

BEARING

1шт.

14

42471541

BEARING

1шт.

15

42546522

BEARING

1шт.
