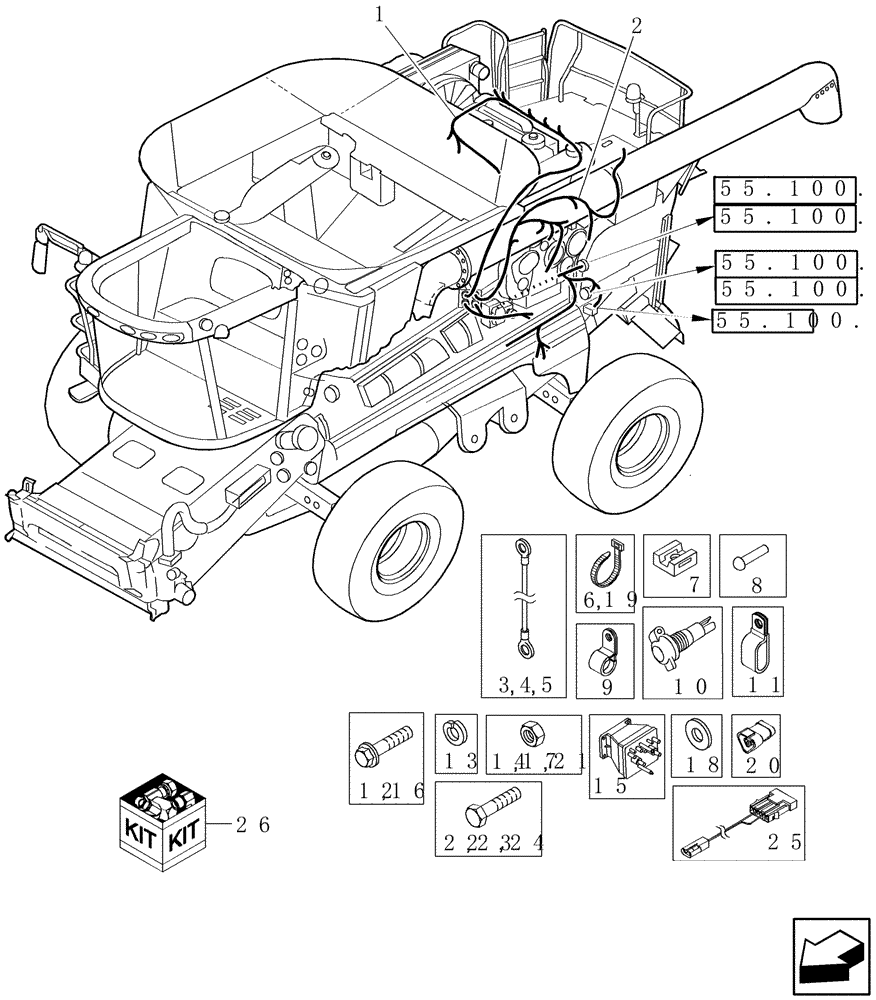

Запчасти Case IH 8010 (55.100.34[01]) - ENGINE & GEARBOX HARNESS - 8010 (55) - ELECTRICAL SYSTEMS

1

87053777

WIRE HARNESS

Engine

1шт.

2

87563575

WIRE HARNESS

Gearbox

1шт.

Prior To PIN HAJ202001

1шт.

2

87624237

WIRE HARNESS

Gearbox

1шт.

PIN HAJ202001 & After

1шт.

3

86611285

ELECTRICAL WIRE

WIRE White

1шт.

4

86611286

ELECTRICAL WIRE

WIRE Red

1шт.

5

86611287

CABLE,490mm L

WIRE Black

1шт.

6

86566989

CABLE TIE,208mm L

CABLE STRAP

26шт.

7

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

7шт.

8

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

7шт.

9

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

10

82002966

POWER SOCKET,M18 x 1

AUX

1шт.

11

87000220

HOSE CLAMP

1шт.

12

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

389120

RELAY

Reversing

1шт.

16

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

1шт.

18

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

6шт.

20

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

21

9706690

NUT,M8 x 1.25, Cl 8

4шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

23

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

25

87284207

WIRE HARNESS

Fixed Speed Feeder Adapter

1шт.

26

87633941

DIA KIT, HARVESTER

Control Pressure Relocation

1шт.

For Units Built Prior To 1/1/07

1шт.

Relocates Pressure Transducer From Control Pressure Manifold To Regulator Valve

1шт.
