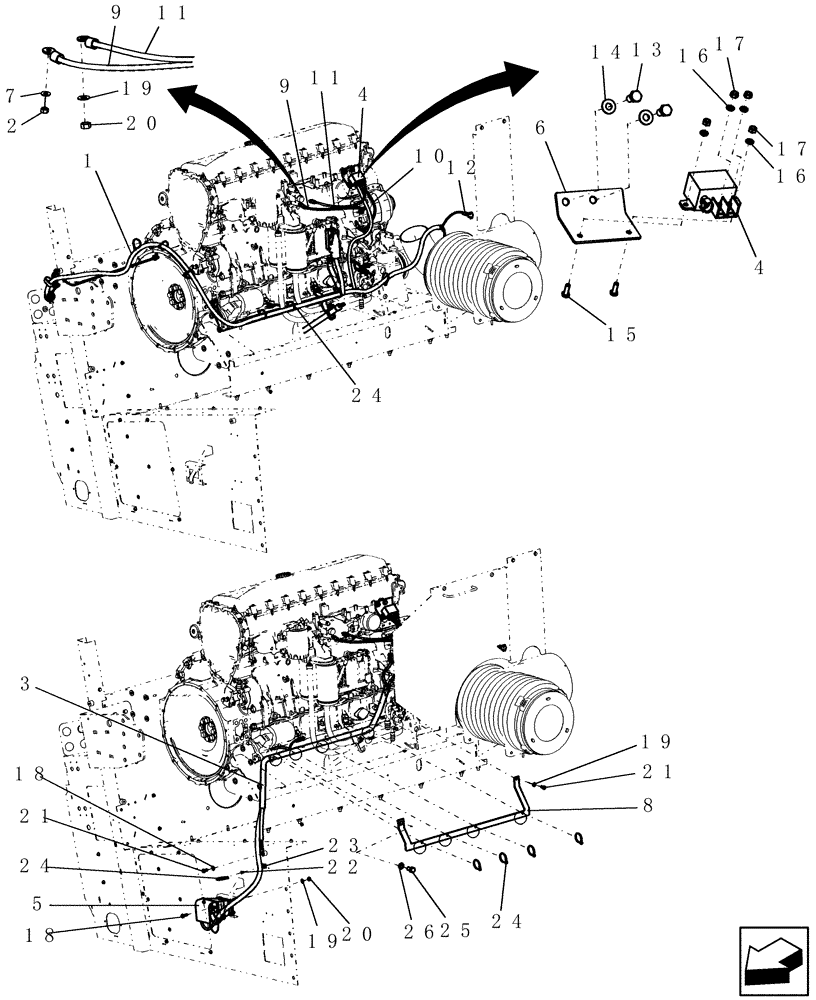

Запчасти Case IH 8010 (55.100.07[02]) - WIRE HARNESSES, ENGINE - 7010/9010 (55) - ELECTRICAL SYSTEMS

1

87371024

WIRE HARNESS

Engine

1шт.

2

9706755

NUT,M6, Cl 8

1шт.

3

87664683

WIRE HARNESS

Alternator

1шт.

4

86619908

RELAY,12V, 150A

Cold Start

1шт.

5

389120

RELAY

1шт.

6

87679268

BRACKET

Relay

1шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

8

87688537

SUPPORT ASSY.

Harness

1шт.

9

86611287

CABLE,490mm L

WIRE Black

1шт.

10

86611286

ELECTRICAL WIRE

WIRE Red

1шт.

11

86611285

ELECTRICAL WIRE

WIRE White

1шт.

12

82002966

POWER SOCKET,M18 x 1

1шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

353308

NUT,M6 x 1.0, Cl 8

4шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

20

9706690

NUT,M8 x 1.25, Cl 8

5шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

22

445394

RIVET,Pop, 3/16" x 1/2" OAL

5шт.

23

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

5шт.

24

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

25

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

1шт.

26

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.
