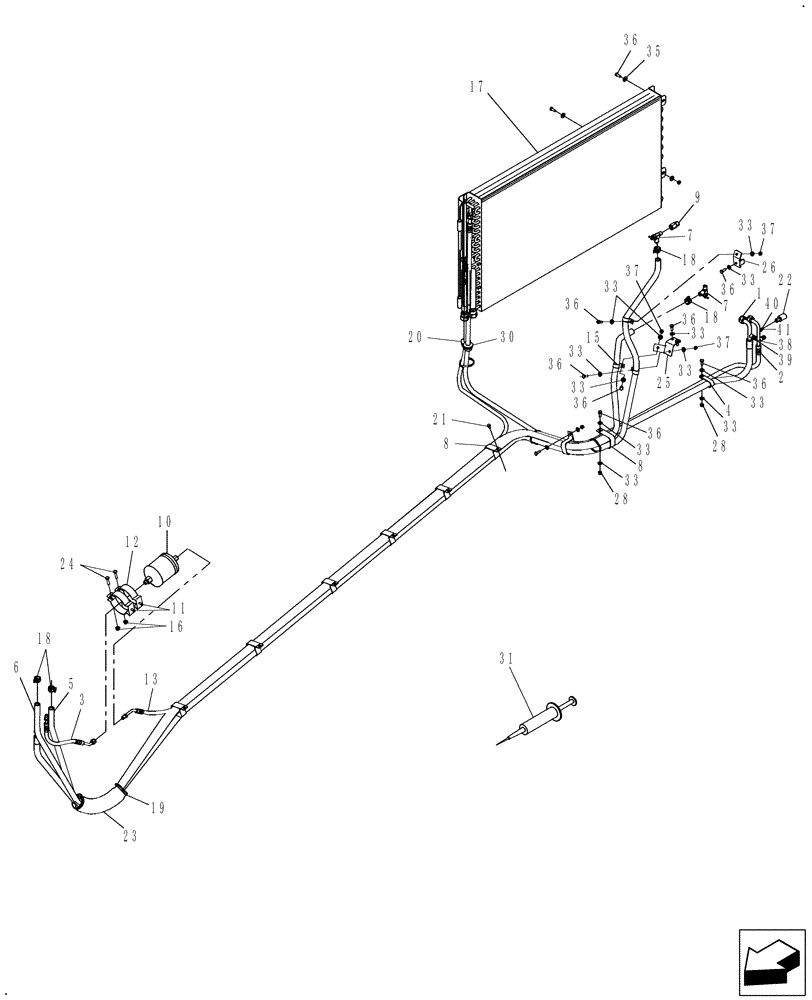

Запчасти Case IH 8010 (50.200.07[03]) - A/C & HEATER HOSES - 9010 (50) - CAB CLIMATE CONTROL

1

87705750

HOSE ASSY.

HVAC, Cab To Compressor Suction; L = 5000mm

1шт.

2

87684281

A/C HOSE

HOSE,LARGE HVAC, Compressor To Condenser; L = 3150mm

1шт.

3

87109562

FLEXIBLE HOSE,7.9mm ID x 475mm L

HVAC; L = 475mm

1шт.

4

87000220

HOSE CLAMP

1шт.

5

87672399

HEATER HOSE,15.50 mm ID, 4508.00 mm

1шт.

6

87672397

HEATER HOSE,15.50 mm ID, 5104.00 mm

HEATER HOSE, , Heater Supply 15.50 mm ID, 5104.00 mm

1шт.

7

301803R1

SHUT-OFF VALVE

2шт.

8

87000226

HOSE CLAMP

8шт.

9

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

10

87105840

RECEIVER-DRYER

1шт.

10

87280717

RECEIVER-DRYER

1шт.

Scandinavia Only

1шт.

11

86978776

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

2шт.

12

87105841

BRACKET

2шт.

13

87684283

LARGE HOSE

HOSE,LARGE

1шт.

14

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

15

700514

CLAMP,3.8mm, Coat, M8 Bolt

3шт.

16

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

17

87601210

CONDENSER

1шт.

18

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

19

529070

CABLE TIE,368.3mm L

CABLE STRAP

5шт.

20

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

21

412093

SELF-TAP SCREW

1шт.

22

87000227

SWITCH, A/C HIGH PRE

1шт.

23

84607268

SLEEVE

Cover

1шт.

24

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

25

87703182

BRACKET

Heater Hose

1шт.

26

87703161

BRACKET

Heater Hose

1шт.

28

126712A1

TUBE,3" OD, 1962 mm Length

3шт.

30

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

31

87589867

FLUID

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

35

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

4шт.

36

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

11шт.

37

9706690

NUT,M8 x 1.25, Cl 8

5шт.

38

86511146

VALVE,Shrader

Valve

1шт.

39

86511149

CAP

1шт.

40

86511147

CONTROL VALVE

Charge High Side

1шт.

41

86511148

CAP

1шт.
