Запчасти Case IH 8010 (50.200.07[02]) - A/C & HEATER HOSES - 8010 (50) - CAB CLIMATE CONTROL

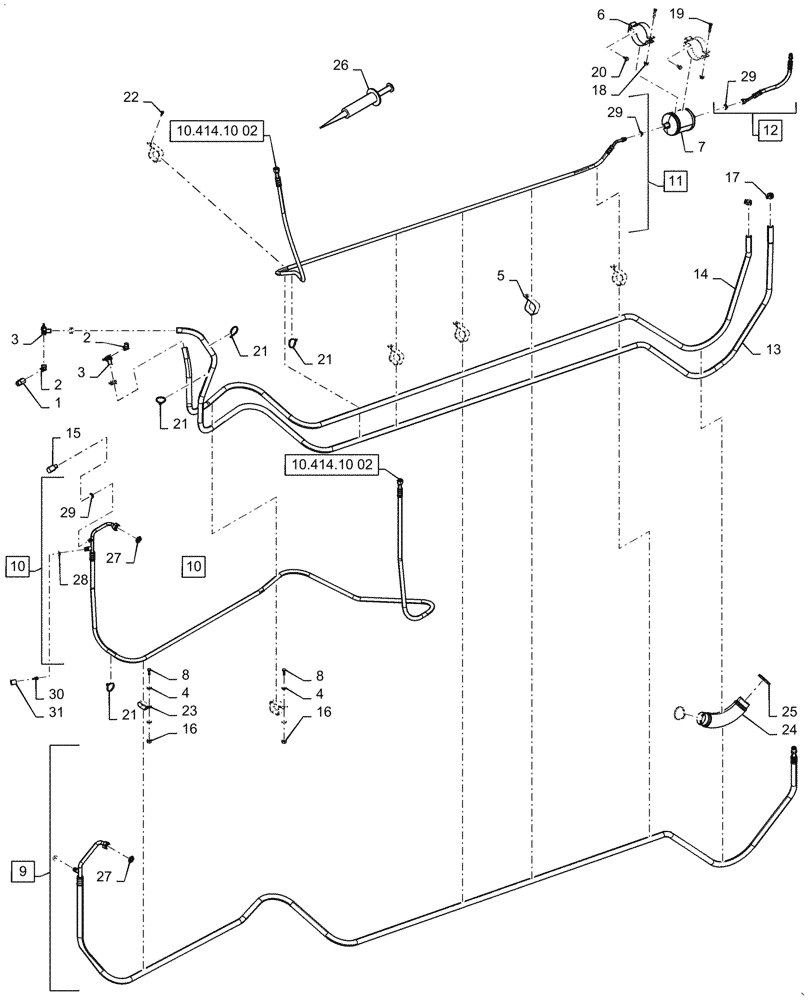

Схема запчастей Case IH 8010 - (50.200.07[02]) - A/C & HEATER HOSES - 8010 (50) - CAB CLIMATE CONTROL
10.414.10 02
4
14
8
5
21
19
12
29
4
7
2
23
1
16
27
21
9
31
21
30
22
3
17
28
24
10
15
26
2
13
3
29
25
21
20
16
6
8
11
18
29
27
10
10.414.10 02

Артикул

Название

Примечание

Количество

1

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

2

3905214

ELBOW

45°

2шт.

3

301803R1

SHUT-OFF VALVE

90°

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

5

87000226

HOSE CLAMP

Bundle

8шт.

6

87105841

BRACKET

Receiver Dryer

2шт.

7

87105840

RECEIVER-DRYER

A/C

1шт.

7

87280717

RECEIVER-DRYER

A/C

1шт.

Scandinavia Only

1шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

9

87337664

HOSE

Cab to Compressor Suction, Incl 28

1шт.

10

87548074

HOSE

To Discharge Port on Compressor, Incl 28 - 32

1шт.

11

86997294

A/C HOSE

Condenser to Dryer, Incl 30

1шт.

12

87109562

FLEXIBLE HOSE,7.9mm ID x 475mm L

HVAC, Incl 30

1шт.

13

87550243

HOSE

Heater Supply

1шт.

14

87550242

HOSE

Heater Return

1шт.

15

87000227

SWITCH, A/C HIGH PRE

High Pressure

1шт.

16

9706690

NUT,M8 x 1.25, Cl 8

2шт.

17

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

18

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

20

86978776

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

2шт.

21

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

4шт.

22

412093

SELF-TAP SCREW

M6 x 12

1шт.

23

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

24

84607268

SLEEVE

Proctection Cover

1шт.

25

529070

CABLE TIE,368.3mm L

2шт.

26

87589867

FLUID

A/C System Dye

1шт.

27

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

3шт.

28

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

29

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5шт.

30

414082A1

CORE

Valve

1шт.

31

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

Valve

1шт.

Выбрано товаров: 33
