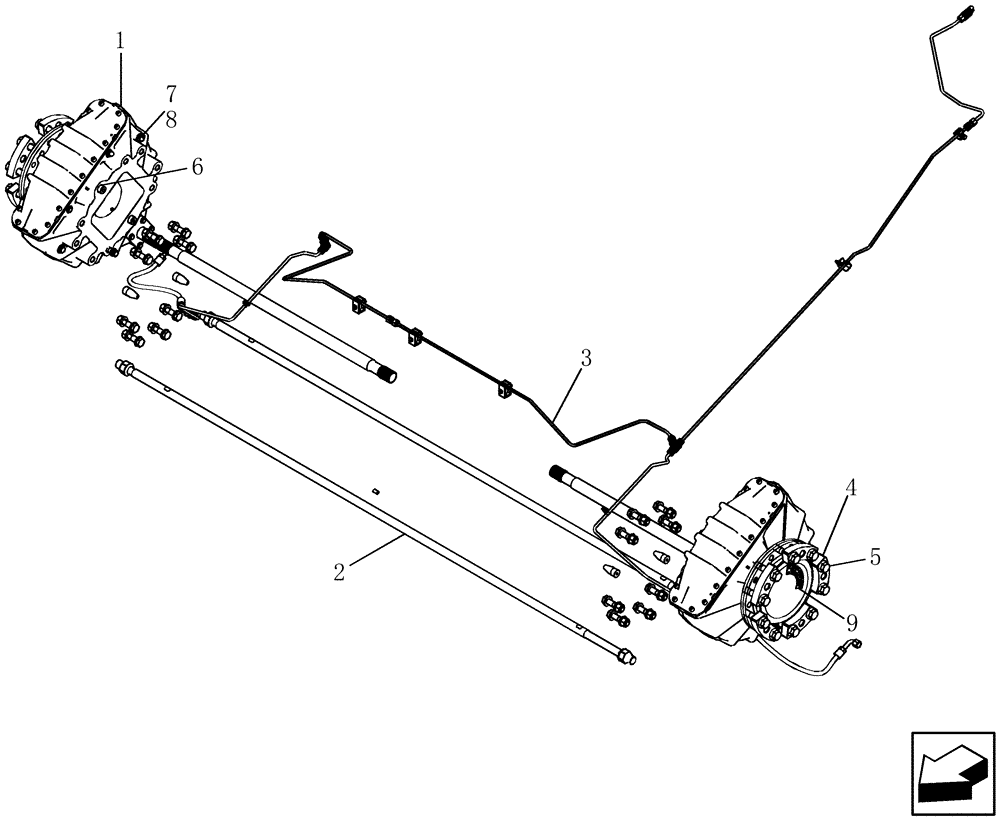

Запчасти Case IH 8010 (48.134.10[01]) - DIA TRACK KIT AFX8010, AFX8120, AFX9120 (48) - TRACKS & TRACK SUSPENSION

1

87734570

HOUSING

2шт.

84514129R

REMAN-TRANSMISSION

8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Reman for New PN 87734570

2шт.

84514129C

CORE-TRANSMISSION

Return Number

1шт.

2

87748776

SERVICE KIT

1шт.

3

87748777

HYD TUBE,410, 360 mm L

1шт.

4

87327940

PLATE

10шт.

5

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

20шт.

6

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

7

386287

BREATHER

2шт.

8

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.

9

87563204

DECAL

2шт.
