Запчасти Case IH 8010 (48.050.02) - KIT, LOWER SHIELDING, TRACK DRIVE - NA ONLY (48) - TRACKS & TRACK SUSPENSION

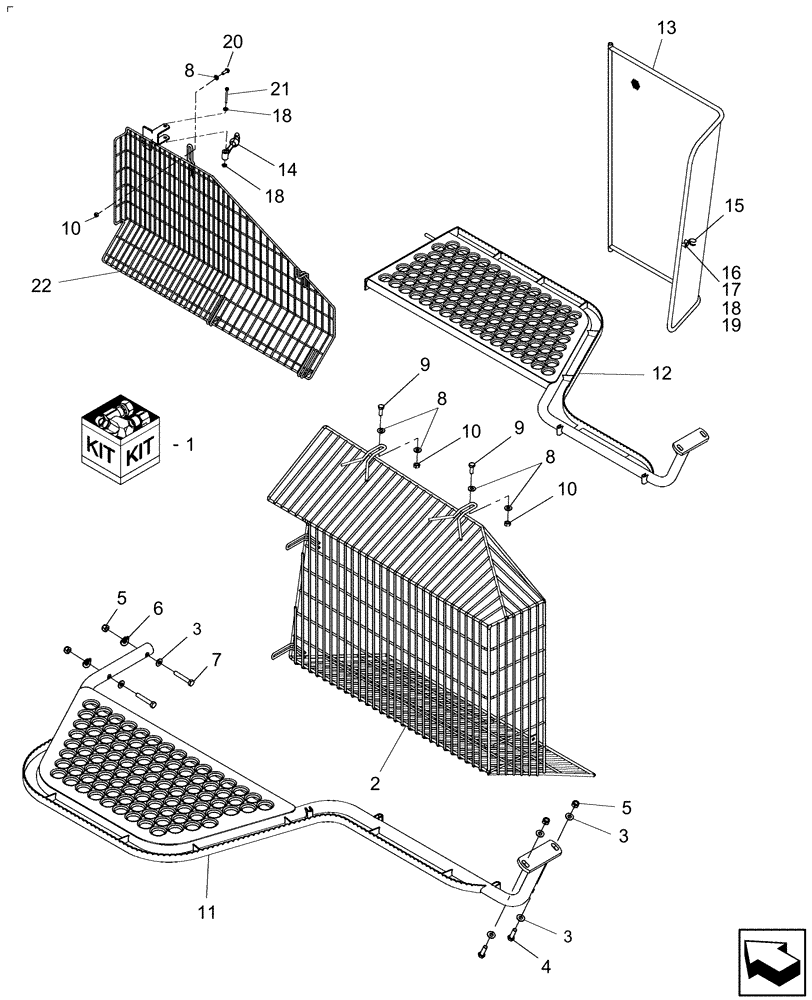

Схема запчастей Case IH 8010 - (48.050.02) - KIT, LOWER SHIELDING, TRACK DRIVE - NA ONLY (48) - TRACKS & TRACK SUSPENSION
8
3
8
16
1
3
12
10
14
6
22
15
20
13
18
8
19
18
9
2
11
9
18
17
4
10
7
3
-
5
5
10
21

Артикул

Название

Примечание

Количество

1

84129453

DIA KIT, HARVESTER

Lower Shielding, Track Drive; Includes: Shielding As Shown, Plus Instructions

1шт.

2

84194661

SHIELD

LH, Lower, Start Serial: Y9G207255

1шт.

2

87492002

SHIELD

LH, Lower, Serial Range: -Y9G207255

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

379401

WASHER,11mm ID x 30mm OD

2шт.

7

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

9

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

3шт.

11

84194652

PLATFORM ASSY.

RH, Start Serial: Y9G207255

1шт.

11

87475046

PLATFORM ASSY.

RH, Serial Range: -Y9G207255

1шт.

12

84130544

PLATFORM ASSY.

LH

1шт.

13

87485239

SHIELD

LH

1шт.

14

494307C1

LATCH

1шт.

15

764071C2

BRACKET

1шт.

16

86508566

BOLT,Hex, M5 x 30mm, Cl 8.8

2шт.

17

1277909C1

SPACER

2шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

19

86508813

NUT,M5, Cl 8

2шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

21

87400

COTTER PIN,3/16" x 2"

1шт.

22

87489339

GUARD ASSY.

Shield, RH

1шт.

Выбрано товаров: 24
