Запчасти Case IH 8010 (44.200.13) - KIT, DUAL SPEED - POWERED REAR AXLE (44) - WHEELS

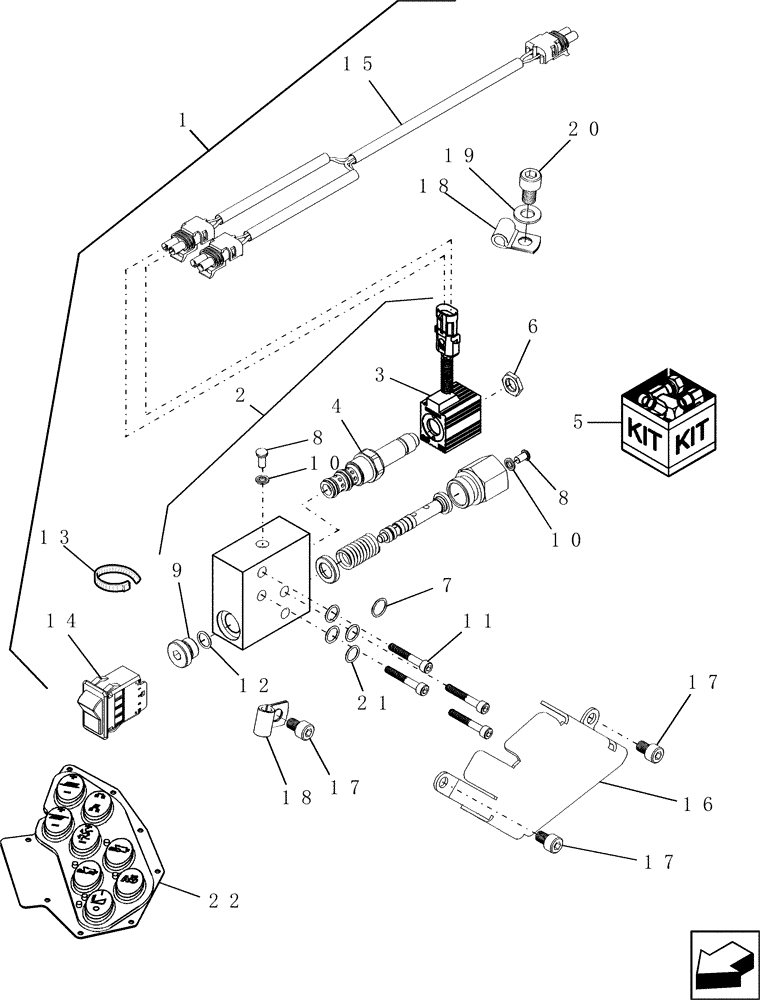

Схема запчастей Case IH 8010 - (44.200.13) - KIT, DUAL SPEED - POWERED REAR AXLE (44) - WHEELS
2
15
12
16
8
22
20
19
10
6
17
21
9
7
3
13
18
18
11
5
14
1
10
17
17
8
4

Артикул

Название

Примечание

Количество

1

84110799

DIA KIT, HARVESTER

Includes Refs 2 - 21

1шт.

2

87283383

VALVE

Includes Refs 3 - 12 and 21

1шт.

3

87283881

SOLENOID

1шт.

4

87283880

CARTRIDGE

1шт.

5

86509023

SEAL KIT

1шт.

6

590907

NUT

1/2"- 20, UNF

1шт.

7

165212

O-RING,0.551" ID x 0.691" OD x 0.07"

1шт.

8

87016478

HEX SOC SCREW,M6 x 10mm, Cl 12.9, Full Thd

2шт.

9

86598046

PLUG,M18 x 1.5 ORB

1шт.

10

87283879

SEALING WASHER

2шт.

11

87035492

HEX SOC SCREW,M6 x 40mm, Cl 12.9

4шт.

12

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

86566989

CABLE TIE,208mm L

CABLE STRAP

6шт.

14

84320238

TOGGLE SWITCH

1шт.

15

87283382

WIRE HARNESS

PRA Dual Speed

1шт.

16

87283381

SHIELD

2шт.

17

CAS2168745

SCREW,M8 x 12mm, Cl 8.8

M8 x 12

6шт.

18

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

4шт.

19

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

20

87301307

HEX SOC SCREW,M10 x 16mm, Cl 12.9

M10 x 16

2шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

87282484

RUBBER PAD

Console, R.H.

1шт.

Выбрано товаров: 22
