Запчасти Case IH 8010 (35.440.04) - HYDRAULIC CYLINDER, UNLOADING AUGER, SWING (35) - HYDRAULIC SYSTEMS

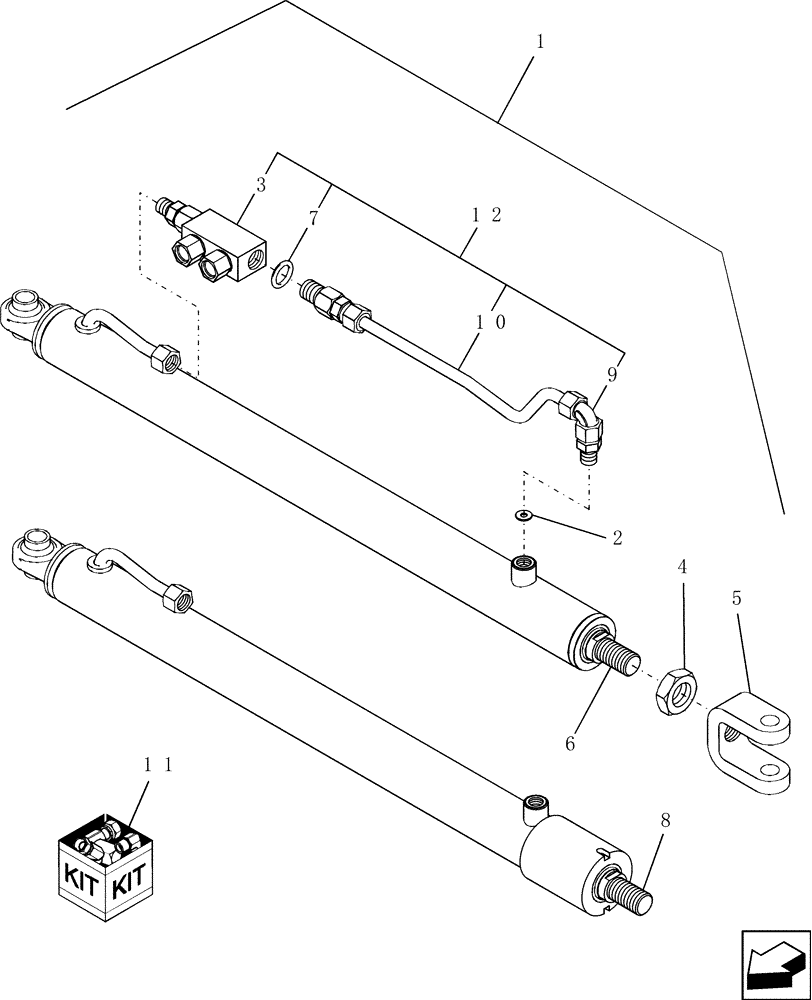

Схема запчастей Case IH 8010 - (35.440.04) - HYDRAULIC CYLINDER, UNLOADING AUGER, SWING (35) - HYDRAULIC SYSTEMS
2
10
9
3
11
4
12
1
6
5
8
7

Артикул

Название

Примечание

Количество

1

87552262

HYDRAULIC CYLINDER

1шт.

Prior To PIN HAJ202863

1шт.

1

84126280R

REMAN-HYD CYLINDER

Prior To PIN HAJ202863

1шт.

1

84126280C

CORE-HYD CYLINDER

Return Number

1шт.

1

87645216

HYDRAULIC CYLINDER

Unloading Auger, Swing

1шт.

PIN HAJ202863 & After

1шт.

1

84126280R

REMAN-HYD CYLINDER

PIN HAJ202863 & After

1шт.

1

84126280C

CORE-HYD CYLINDER

Return Number

1шт.

1

84126280

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 591mm Stroke

Unloading Auger, Swing, Replaces 87645216

1шт.

1

84126280R

REMAN-HYD CYLINDER

Unloading Auger, Swing

1шт.

1

84126280C

CORE-HYD CYLINDER

Return Number

1шт.

2

87031319

ORIFICE

Flow Regulator

1шт.

Services Cylinder 87552262

1шт.

2

87691175

FLOW CONTROL VALVE

Orifice, Flow Regulator

1шт.

Services Cylinder 87645216

1шт.

2

84219249

CONTROL VALVE

Orifice, Flow Regulator

1шт.

Services Cylinder 84126280

1шт.

3

NSS

NOT SOLD SEPARAT

18mm at 90 Degree Fitting; See Ref 12

1шт.

Services Cylinder 87552262

1шт.

3

87735676

VALVE, CHECK

1шт.

Services Cylinder 87645216

1шт.

3

84220776

CONTROL VALVE,M20 x 1.5 x M20 x 1.5 x M18 x 1.5 x M18 x 1.5

1шт.

Services Cylinder 84126280

1шт.

4

84022122

THIN NUT,M24 x 2.0, Cl 05

1шт.

5

87031322

YOKE

1шт.

6

84462328

ROD,32mm OD

Dia = 32MM

1шт.

Services Cylinder 87552262

1шт.

7

722441

GASKET

1шт.

8

NSS

NOT SOLD SEPARAT

Rod; Dia = 40MM

1шт.

Services Cylinder 87645216

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow

1шт.

Services Cylinder 87552262

1шт.

9

87719937

ADAPTER

Seal NSS

1шт.

Services 87645216

1шт.

10

NSS

NOT SOLD SEPARAT

Tube & Elbow

1шт.

Services Cylinder 87552262

1шт.

10

87735679

TUBE

& Elbow, Used on Cyl 84126280

1шт.

Services Cylinder 87645216

1шт.

11

84989045

SEAL KIT

Cylinder Repair

1шт.

Services Cylinder 87552262

1шт.

11

87691173

SEAL KIT

1шт.

Services Cylinder 87645216

1шт.

11

84218981

SEAL KIT

1шт.

Services Cylinder 84126280

1шт.

12

84461693

VALVE, CHECK

Includes: Refs 3, 7, 9, & 10

1шт.

Services Cylinder 87552262

1шт.

12

87691174

CHECK VALVE

Includes: Refs 3, 7, 9, & 10

1шт.

Services Cylinder 87645216

1шт.

12

84219274

CONTROL VALVE

Includes: Refs 3, 7, 9, & 10

1шт.

Services Cylinder 84126280

1шт.

Выбрано товаров: 50
