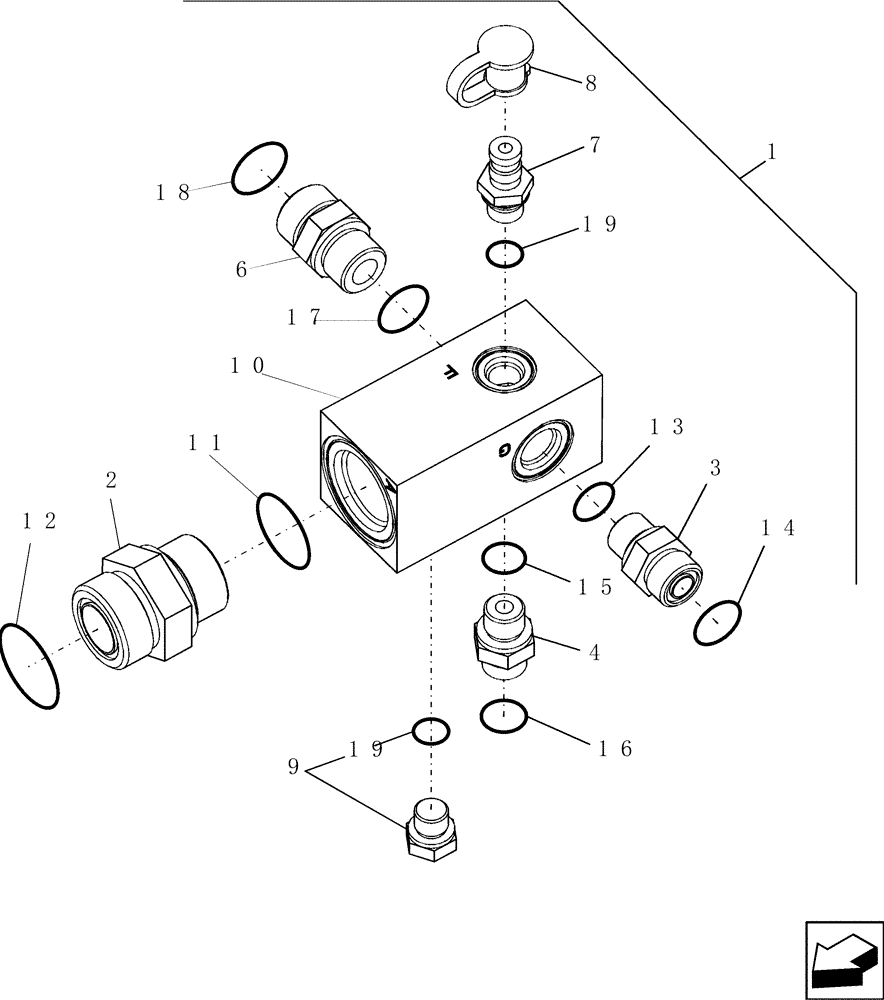

Запчасти Case IH 8010 (35.310.41[01]) - MANIFOLD, CHARGE PRESSURE - PRIOR TO PIN HAJ202001 - 7010/8010 (35) - HYDRAULIC SYSTEMS

1

87553802

VALVE

Pressure Control, Includes Refs 2, 3, 4, 6, 7, 8, 9, 10

1шт.

2

86579684

HYD CONNECTOR,1-11/16"-12 ORFS x M33 x 2.0 ORB

1шт.

3

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

4

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

6

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

7

84320565

COUPLING,M14 x 1.5

1шт.

8

86502604

DUST CAP

1шт.

9

86611704

PLUG,Hex, M14 x 1.5 ORB

1шт.

10

87283810

MANIFOLD

1шт.

11

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

12

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
