(33.202.20[03]) - VALVE, HYDRAULIC, PARK - COMPONENTS; PIN HAJ203150 & AFTER - 7010/8010

Запчасти Case IH 8010 (33.202.20[03]) - VALVE, HYDRAULIC, PARK - COMPONENTS; PIN HAJ203150 & AFTER - 7010/8010 (33) - BRAKES & CONTROLS

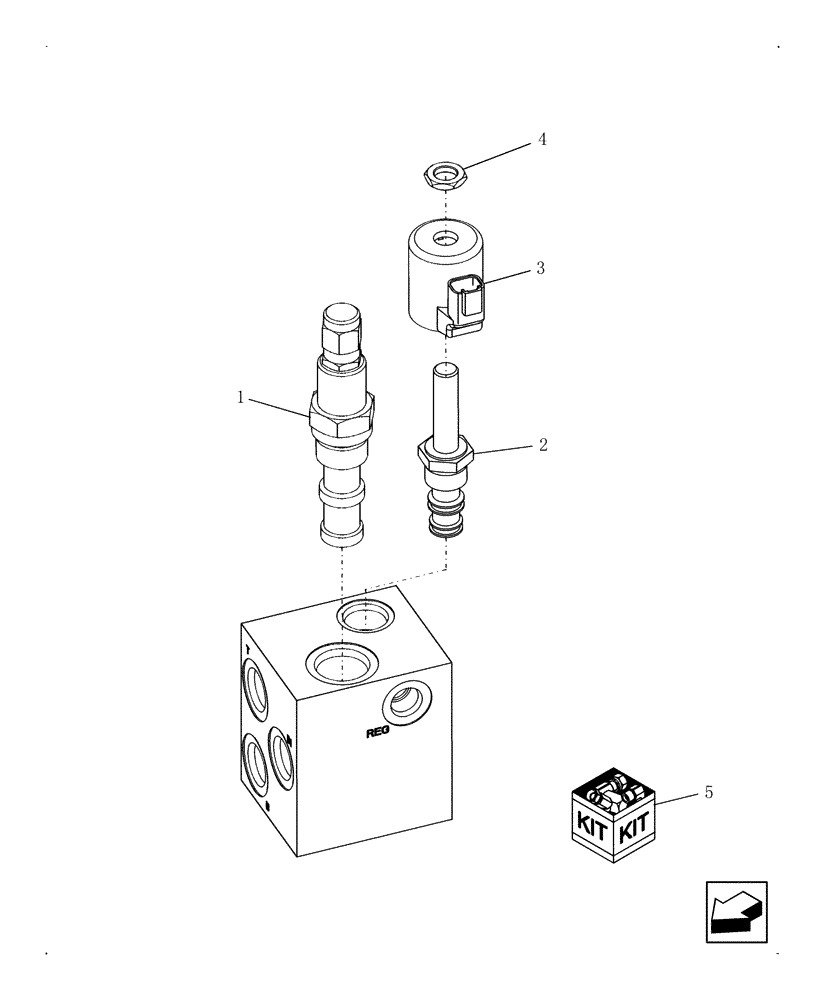

Схема запчастей Case IH 8010 - (33.202.20[03]) - VALVE, HYDRAULIC, PARK - COMPONENTS; PIN HAJ203150 & AFTER - 7010/8010 (33) - BRAKES & CONTROLS
1
3
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87280132

VALVE PRESSURE RELIE,1-1/16" - 12

See Also: Ref 5

1шт.

2

190711A1

VALVE

1шт.

3

87352779

SOLENOID

1шт.

4

195683A1

JAM NUT,1/2"-20

1шт.

5

1260872C91

SEAL KIT

Services Ref 2

1шт.
