Запчасти Case IH 8010 (33.202.19[03]) - VALVE, HYDRAULIC, PARK - CONNECTORS; PIN HAJ203150 & AFTER (33) - BRAKES & CONTROLS

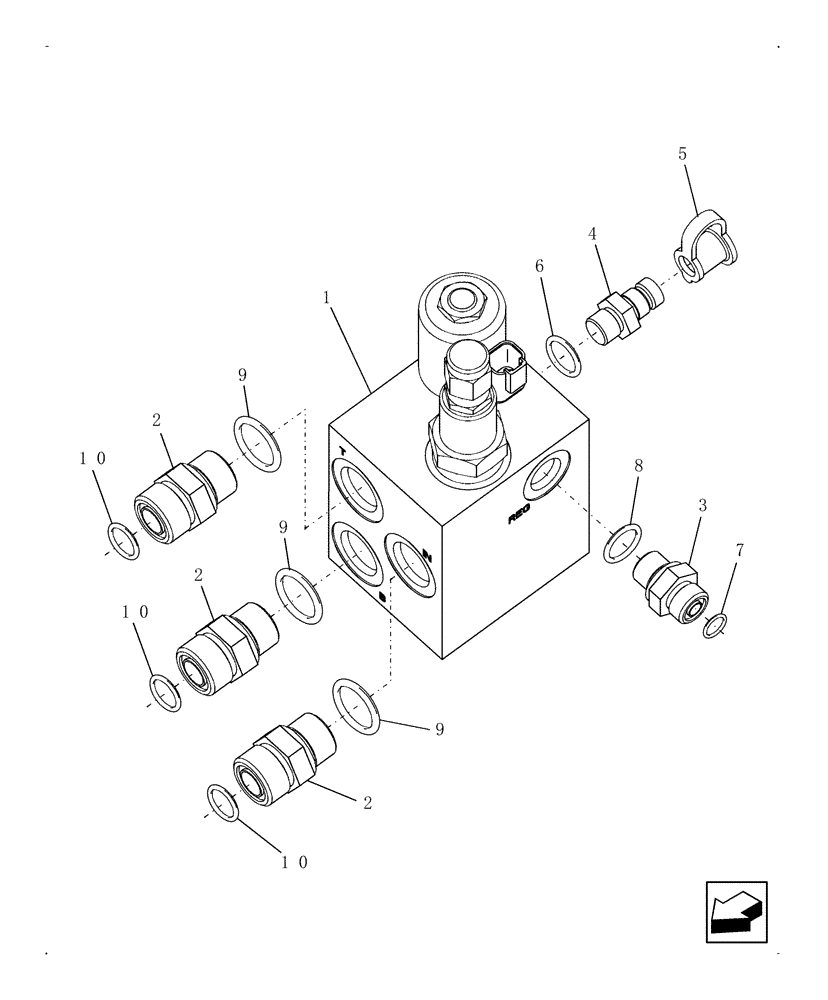

Схема запчастей Case IH 8010 - (33.202.19[03]) - VALVE, HYDRAULIC, PARK - CONNECTORS; PIN HAJ203150 & AFTER (33) - BRAKES & CONTROLS
4
9
10
2
1
5
9
8
7
6
2
2
10
9
3
10

Артикул

Название

Примечание

Количество

1

87708879

MANIFOLD

Hydraulic

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Includes: Refs 9 & 10

3шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Includes: Refs 7 & 8

1шт.

4

84320565

COUPLING,M14 x 1.5

Includes: Ref 6

1шт.

5

86502604

DUST CAP

1шт.

6

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

Выбрано товаров: 10
