Запчасти Case IH 8010 (33.202.05[02]) - SERVICE BRAKES - PIN HAJ202001 & AFTER - 7010/8010 (33) - BRAKES & CONTROLS

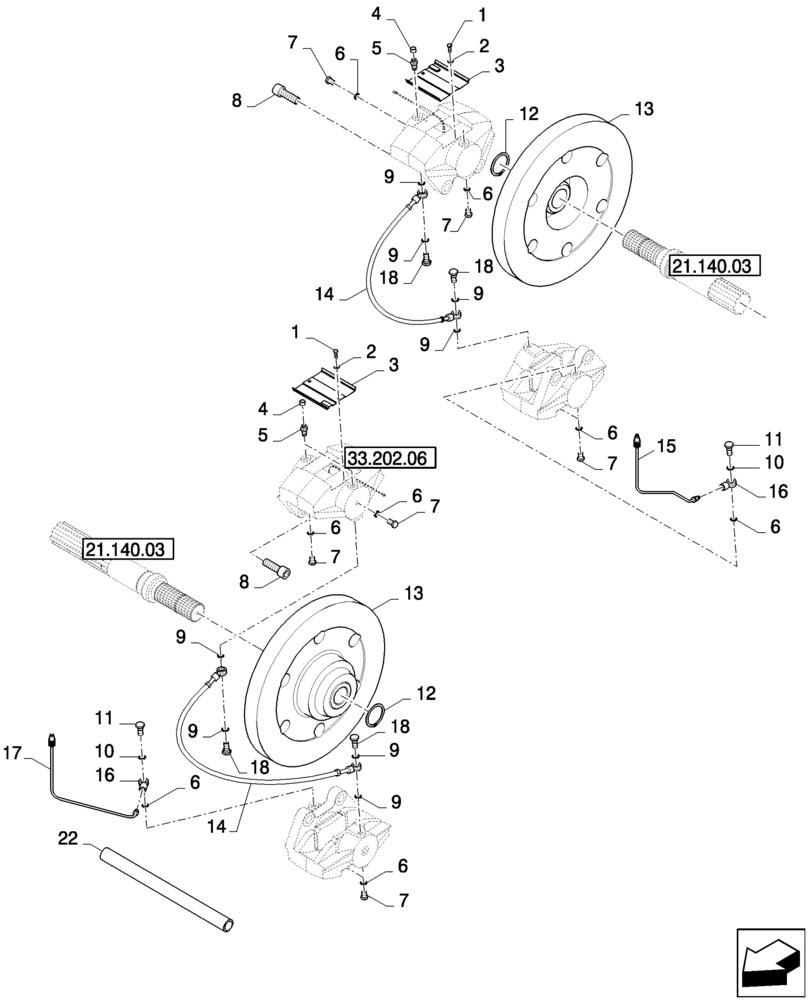

Схема запчастей Case IH 8010 - (33.202.05[02]) - SERVICE BRAKES - PIN HAJ202001 & AFTER - 7010/8010 (33) - BRAKES & CONTROLS

Артикул

Название

Примечание

Количество

1

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

4шт.

2

80322356

WASHER

M5

4шт.

3

84004317

PLATE

2шт.

4

89835349

CAP

Seal

4шт.

5

89832308

SCREW

Vent

4шт.

6

84439102

SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk

10шт.

7

89832307

SCREW

Sealing

8шт.

8

89817243

SCREW

Cylinder Head

8шт.

9

84449206

RING,10.2mm ID x 13.4mm OD x 1mm Thk

8шт.

10

80355607

SEALING RING

SEALRING

2шт.

11

89832304

BANJO BOLT

Hollow

2шт.

12

370007

SNAP RING,M45, Ext

2шт.

13

84071143

BRAKE DISC,330mm OD

For 16/71 Differential

2шт.

13

84071125

BRAKE DISC

For 20/61 Differential

2шт.

14

84447450

BRAKE LINE,360mm L

L = 360mm

2шт.

15

84801453

BRAKE LINE

For 16/71 Differential

1шт.

15

87330717

BRAKE LINE

For 20/61 Differential

1шт.

16

9832303

FITTING

2шт.

17

84801451

BRAKE LINE

For 16/71 Differential

1шт.

17

87330720

BRAKE LINE,4.75 mm DIA

Tube, Brake Duct, For 20/61 Differential

1шт.

18

84449205

BANJO BOLT,M10 x 1 x 17mm

4шт.

Выбрано товаров: 21
