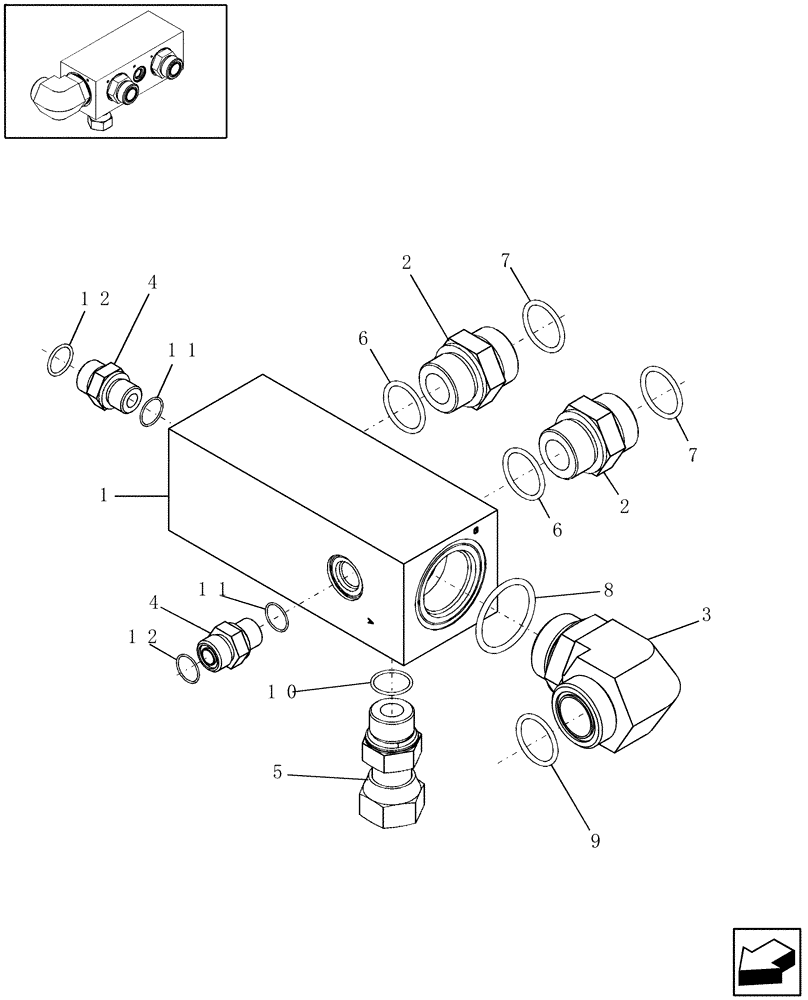

Запчасти Case IH 8010 (31.114.05[02]) - MANIFOLD, DRAIN BLOCK - PIN HAJ202001 & AFTER - 7010/8010 (31) - IMPLEMENT POWER TAKE OFF

1

87611498

MANIFOLD

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Includes: Ref 6 (1) & Ref 7 (1)

2шт.

3

86579700

ELBOW,90 Degree, 1 11/16"-12 ORFS x M42 x 2 ORB

Includes: Ref 8 (1) & Ref 9 (1)

1шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Includes: Ref 11 (1) & Ref 12 (1)

2шт.

5

86998396

FITTING

Includes: Ref 10

1шт.

6

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

8

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

9

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

11

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
