Запчасти Case IH 8010 (31.114.05[01]) - MANIFOLD, DRAIN BLOCK - PRIOR TO PIN HAJ202001 - 7010/8010 (31) - IMPLEMENT POWER TAKE OFF

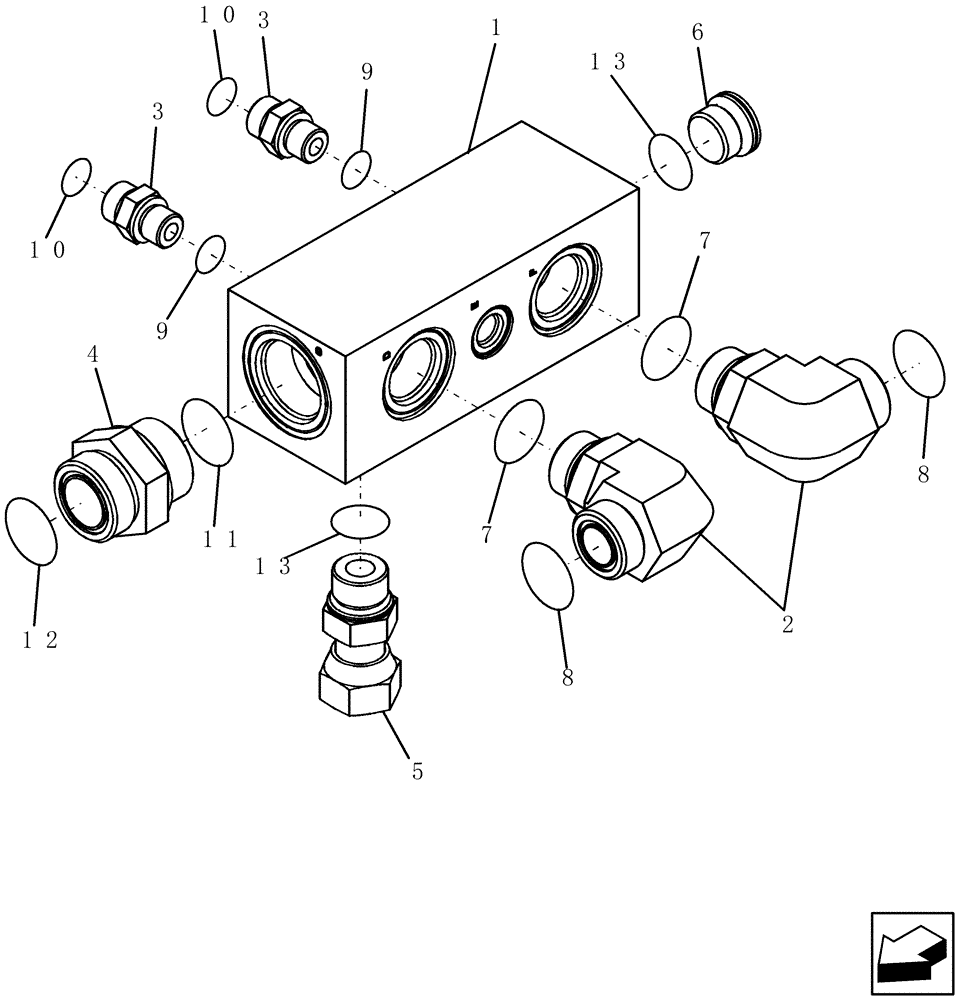

Схема запчастей Case IH 8010 - (31.114.05[01]) - MANIFOLD, DRAIN BLOCK - PRIOR TO PIN HAJ202001 - 7010/8010 (31) - IMPLEMENT POWER TAKE OFF
2
7
4
8
3
9
7
12
13
9
10
10
8
6
3
13
5
11
1

Артикул

Название

Примечание

Количество

87108152

MANIFOLD

Includes: Refs 1 - 13

1шт.

1

87108222

MANIFOLD

Drain Return

1шт.

2

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

2шт.

3

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

4

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

1шт.

5

86998396

FITTING

1шт.

6

86598048

PLUG,Hex Soc, M27 x 2, ORB

1шт.

7

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

12

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

13

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 14
