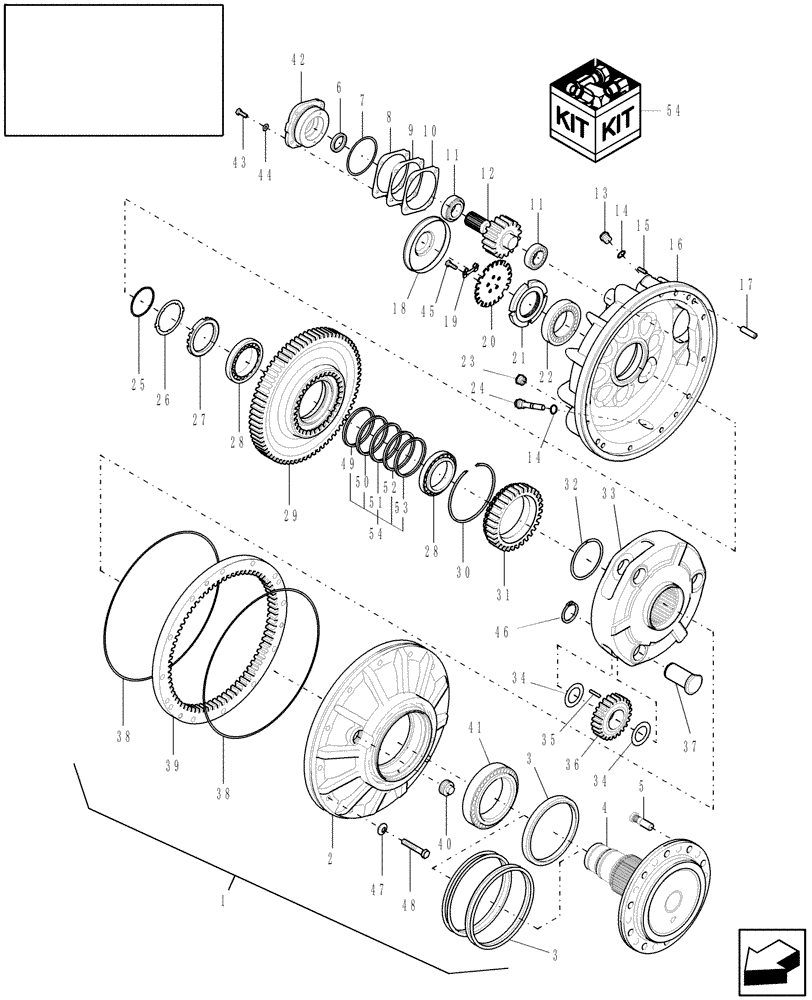

Запчасти Case IH 8010 (25.310.02[01]) - FINAL DRIVE, PLANETARY (25) - FRONT AXLE SYSTEM

1

84453963

FINAL DRIVE

FINAL REDUCTION GEARBOX Drive, Standard

1шт.

For NA Only

1шт.

1

84407411R

REMAN-FINAL DRIVE

7010 (2/07-9/08), 8010, PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Both AXIAL-FLOW COMBINE, FINAL REDUCTION GEARBOX Drive, Standard, Reman for New PN 84453963

1шт.

1

84407411C

CORE-FINAL DRIVE

Return Number

1шт.

1

0C

ORDER COMPONENTS

Final Drive

1шт.

For EU Only

1шт.

1

84453965

FINAL DRIVE

FINAL REDUCTION GEARBOX Drive

1шт.

W/Mud Seal

1шт.

For NA Only

1шт.

1

84407411R

REMAN-FINAL DRIVE

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Both AXIAL-FLOW COMBINE, FINAL REDUCTION GEARBOX Drive, W/Mud Seal, Reman for New PN 84453965

1шт.

1

84407411C

CORE-FINAL DRIVE

Return Number

1шт.

1

0C

ORDER COMPONENTS

Final Drive

1шт.

W/Mud Seal

1шт.

For EU Only

1шт.

2

84448821

HOUSING

Standard

1шт.

2

84074834

HOUSING

Mud

1шт.

3

9832264

SEAL,198.3mm ID x 230mm OD x 13mm Thk

Standard

1шт.

3

84074404

SEAL,272.47mm ID x 297.87mm OD x 39mm Thk

Seal, Mud

1шт.

4

84449320

DRIVEN SHAFT

Wheel

1шт.

For Standard Only

1шт.

For NA Only

1шт.

4

84449573

AXLE

Shaft, Wheel

1шт.

For Standard Only

1шт.

For EU Only

1шт.

4

84449575

AXLE

Shaft, Wheel

1шт.

W/Mud Seal

1шт.

For EU Only

1шт.

4

84449574

AXLE

Shaft, Wheel

1шт.

W/Mud Seal

1шт.

For NA Only

1шт.

5

87282493

STUD,M22 x 1.5 x 84mm

10шт.

For NA Only

1шт.

5

330291

WHEEL BOLT

10шт.

For EU Only

1шт.

6

5183845

SEAL

Shaft

1шт.

7

84074393

O-RING,5mm Thk x 120mm ID, 70 Duro

NBR70

1шт.

8

84074713

SHIM,0.5mm Thk

1ARшт.

9

84074712

SHIM,130mm ID x 72.5mm OD x 0.2mm Thk

2ARшт.

10

84074711

SHIM,0.05mm Thk

2ARшт.

11

84074701

TAPERED BEARING,45mm ID x 80mm OD x 26mm W

2шт.

12

84449593

GEAR,18T

Driving, 18T

1шт.

13

150006

DRAIN PLUG,M24 x 1.5

Fill

1шт.

14

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING Washer, 28.9 OD x 24.3 ID x 2.0 Thk

2шт.

15

84074543

SET SCREW,Hex Soc, M16 x 30

3шт.

16

84819478

COVER

Inner Shell

1шт.

17

84074391

DOWEL,16mm OD x 60mm L

16 x 60, M8 Internal Thread

2шт.

18

84448749

COVER

1шт.

19

84448750

LOCKING PLATE

1шт.

20

84448751

LOCKING PLATE

1шт.

21

84818180

LOCK NUT,M90 x 2

1шт.

22

84074719

TAPERED BEARING,90mm ID x 145mm OD x 35mm W

1шт.

23

84071596

PLASTIC PLUG,M31 x 19mm

Sight, Lower, 26 mm

2шт.

23

84817215

PLUG,3/4"

Upper, Plastic, 26 mm, Socket Head

2шт.

24

84074519

MAGNETIC PLUG,M24 x 1.5, 96L

PLUG, MAGNETIC

1шт.

25

84449172

SNAP RING,M92

(Out, 95.4 OD x 2.5 Thk)

1шт.

26

84449597

LOCKING PLATE

1шт.

27

84449598

LOCK NUT,M100 x 2

1шт.

28

84449190

TAPERED BEARING,100mm ID x 145mm OD x 24mm W

2шт.

29

84806528

GEAR,72T

72T x 33T

1шт.

30

84449173

SNAP RING,M199.5, Int.

(x 3 Thk)

1шт.

31

84806529

GEAR

33T

1шт.

32

84074395

SNAP RING,M123.6

(130.8 OD x 2.82 Thk)

1шт.

33

84449594

RETAINER

Carrier Planet

1шт.

34

84074023

SHIM,51.5mm ID x 80mm OD x 1mm Thk

6шт.

35

84074703

NEEDLE,8mm x 42mm

8 x 42

69шт.

36

84074702

PLANETARY GEAR,21T

21T

3шт.

37

84072219

PIN,50.5mm OD x 110.2mm L

100 x 50

3шт.

38

84074400

O-RING,4mm Thk x 500mm ID, 70 Duro

NBR70

2шт.

39

84074723

SPLINED RING,75T

1шт.

40

84074399

PLUG

HH, M45 x 1.5, Tapered

1шт.

41

84074720

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

42

84449197

FLANGE

Housing, Bearing

1шт.

43

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

44

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

45

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

46

370008

SNAP RING,M50, Ext

3шт.

47

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

48

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

12шт.

49

87375317

SHIM,4.6mm Thk

Adjusting

1шт.

50

87357938

SHIM,4.65mm Thk

Adjusting

1шт.

51

87357939

SHIM,4.75mm Thk

Adjusting

1шт.

52

87380319

SHIM,4.85mm Thk

Adjusting

1шт.

53

87380320

SHIM,4.9mm Thk

Adjusting

1шт.

54

87358151

SHIM KIT

Includes: Refs 49 - 53

1шт.
