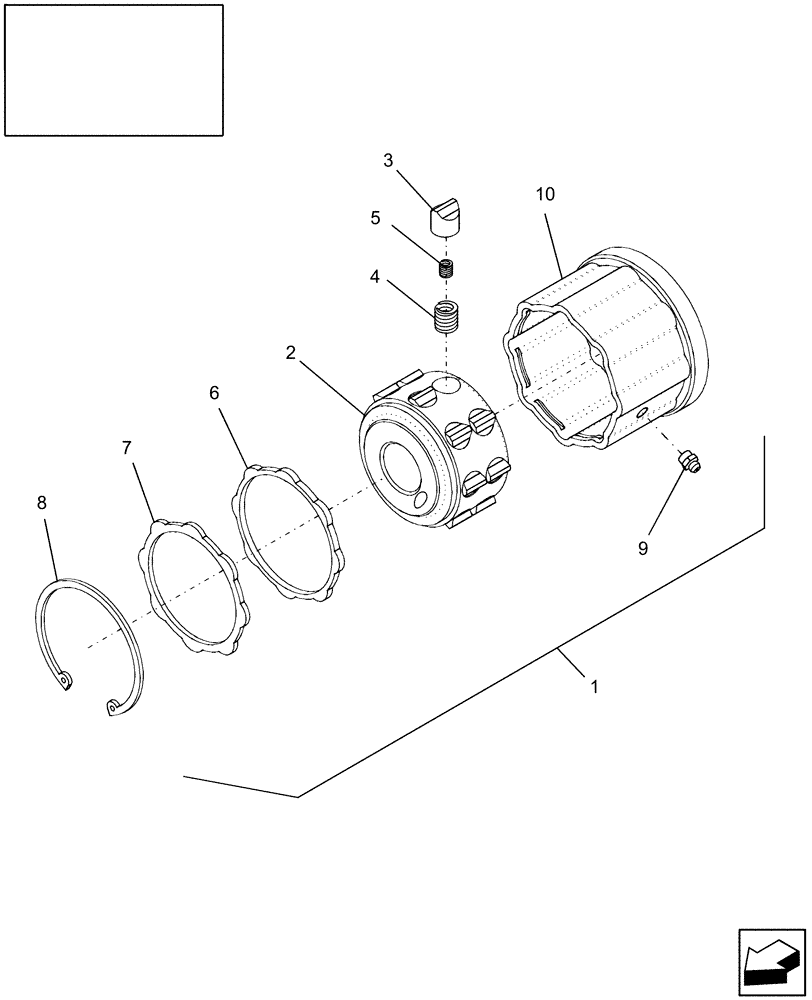

Запчасти Case IH 8010 (18.110.02) - CLUTCH ASSEMBLY, ELEVATOR HOUSING (18) - CLUTCH

1

87527860

CLUTCH ASSEMBLY

Incl Refs 2 Tru 10

1шт.

2

NSS

NOT SOLD SEPARAT

Hub, 1-3/8", 21 Spline

1шт.

3

275246

CAM

16шт.

4

386510

SPRING,Compression, 13mm OD X 13.2mm L

Outer

16шт.

5

297908A1

SPRING

Inner

16шт.

6

428144

SEALING RING

1шт.

7

86636027

DISC

1шт.

8

300633

SNAP RING,M80, Internal

1шт.

9

84447449

LUBE NIPPLE,M8.2 x 1

1шт.

10

NSS

NOT SOLD SEPARAT

Housing, Clutch

1шт.
