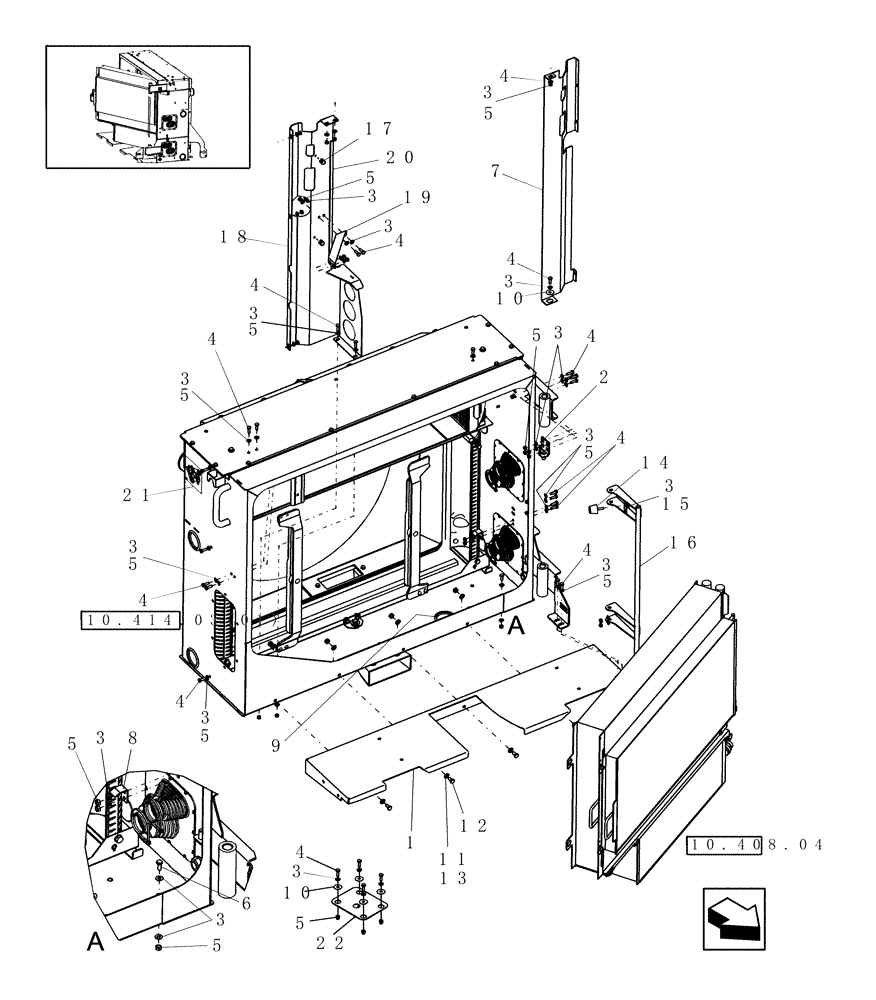

Запчасти Case IH 8010 (10.414.07[01]) - PLATFORM, COOLING BOX - PRIOR TO PIN HAJ202001 - 8010 (10) - ENGINE

1

87550268

PLATFORM ASSY.

1шт.

For Use With Metal Rotary Air Screen

1шт.

1

87550256

PLATFORM

1шт.

For Use With Plastic Rotary Air Screen

1шт.

2

87550691

BRACKET

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

87549777

PANEL

1шт.

8

87550692

BRACKET

1шт.

9

87000778

PLUG,89mm OD

1шт.

10

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

13

100016

NUT,M10 x 1.5, Cl 8

4шт.

14

87109195

BUMPER,5/16" - 18, 38mm OD

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

1шт.

16

87510582

HINGE

1шт.

17

87107423

LINCH PIN

2шт.

18

87550681

PANEL

1шт.

19

87550690

SUPPORT

1шт.

20

87282055

SEALANT

1шт.

21

87282434

DECAL

Engine Belt Routing

1шт.
