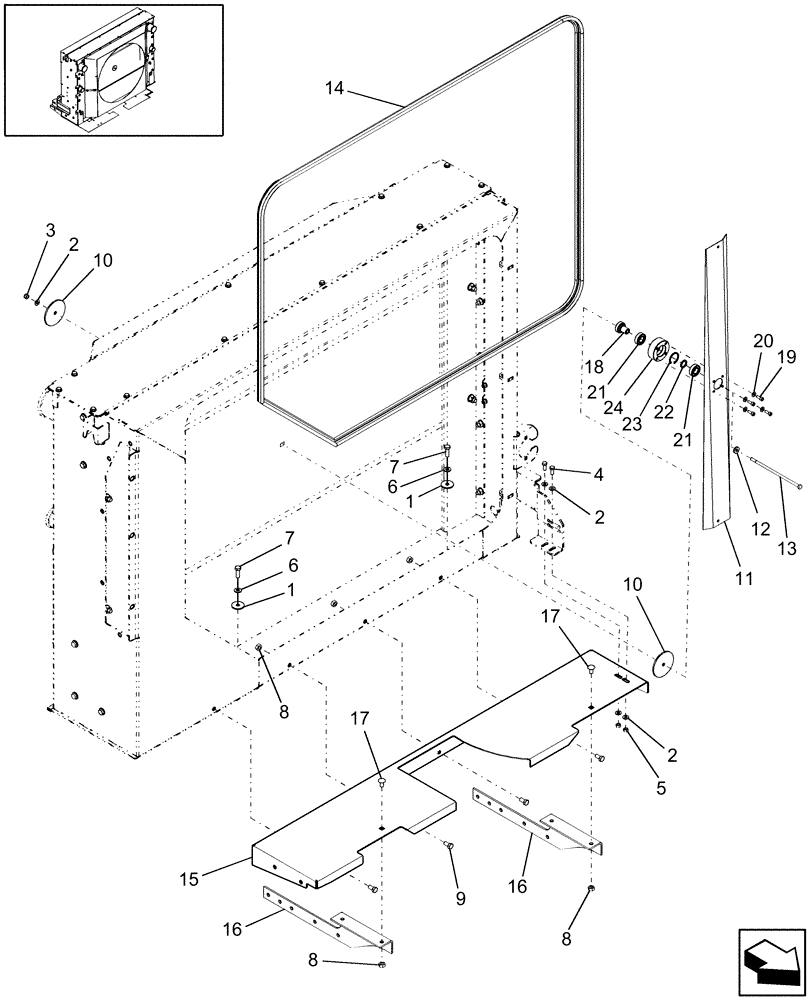

Запчасти Case IH 8010 (10.414.06[02]) - PLATFORM & FAN BLADE, COOLING BOX - 9010 (10) - ENGINE

1

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

3

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

5

9706690

NUT,M8 x 1.25, Cl 8

2шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

8

100016

NUT,M10 x 1.5, Cl 8

6шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

10

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

1шт.

11

87720406

FAN BLADE

BLADE

1шт.

12

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

1шт.

13

87695409

BOLT,Hex, M8 x 210mm, Cl 8.8

HH, M8 x 210, Cl 8.8

1шт.

14

401209

SEAL PROTECTION

1шт.

15

87611110

PLATE

1шт.

16

86976802

BRACKET

2шт.

17

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

18

84460219

SHAFT,9mm ID x 17mm OD, 24.5mm OD Shoulder, 32mm Head

1шт.

19

84058583

HEX SOC SCREW,BTN HD, M6 x 16mm, Cl 8.8

4шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

21

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

2шт.

22

84334251

WASHER,17.5mm ID x 24mm OD x 2mm Thk

1шт.

23

300642

CIRCLIP,M35 x 1.5mm W, Internal

1шт.

24

84437613

BUSHING,35mm ID x 65mm OD x 23mm Thk

1шт.
