Запчасти Case IH 8010 (10.414.01[02]) - FRAME & COOLERS - PIN HAJ202001 & AFTER - 8010 (10) - ENGINE

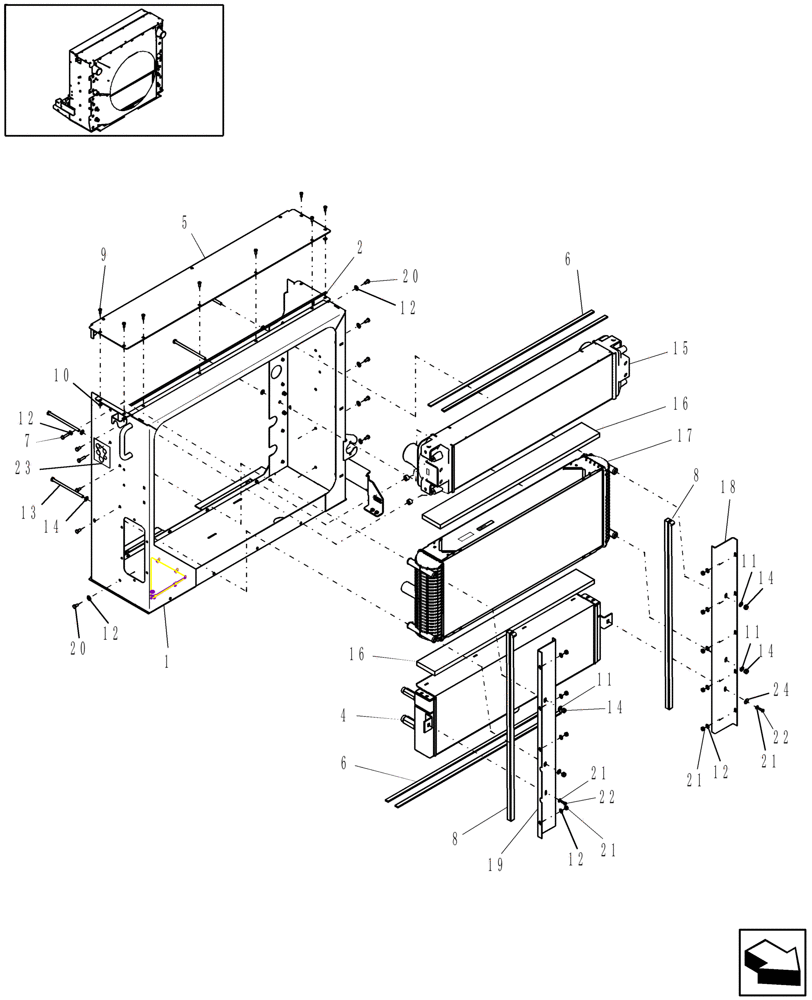

Схема запчастей Case IH 8010 - (10.414.01[02]) - FRAME & COOLERS - PIN HAJ202001 & AFTER - 8010 (10) - ENGINE
19
6
11
2
1
24
22
23
16
17
21
12
5
14
4
12
21
20
21
12
11
21
14
9
12
13
18
12
8
7
14
15
22
20
6
16
10
11
14
8

Артикул

Название

Примечание

Количество

1

87737846

FRAME ASSY

1шт.

2

87510717

SEALING STRIP,10mm W x 1459mm L x 3.174mm Thk

1шт.

3

100016

NUT,M10 x 1.5, Cl 8

8шт.

4

87601208

COOLER, OIL

Main

1шт.

5

87740229

COVER ASSY

1шт.

6

PL

PROCURE LOCALLY

Tape, Seal; 1" x 1" Polyurethane Foam

1шт.

7

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

8

87710390

SEALING STRIP,25.4mm W x 1190mm L x 25.4mm Thk

Sealing Element

2шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

13шт.

10

9706690

NUT,M8 x 1.25, Cl 8

4шт.

11

100038

NUT,M12 x 1.75, Cl 8

4шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

13

364053

BOLT,Hex, M12 x 1.75 x 220mm, Cl 8.8

4шт.

14

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.

15

87578692

INTERCOOLER,Charge Air

1шт.

16

87584962

SEALING STRIP

2шт.

17

87378361

RADIATOR

1шт.

18

87388370

PLATE

1шт.

19

87388375

PLATE

1шт.

20

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

9шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

23

87282434

DECAL

Belt Routing

1шт.

24

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

2шт.

Выбрано товаров: 24
