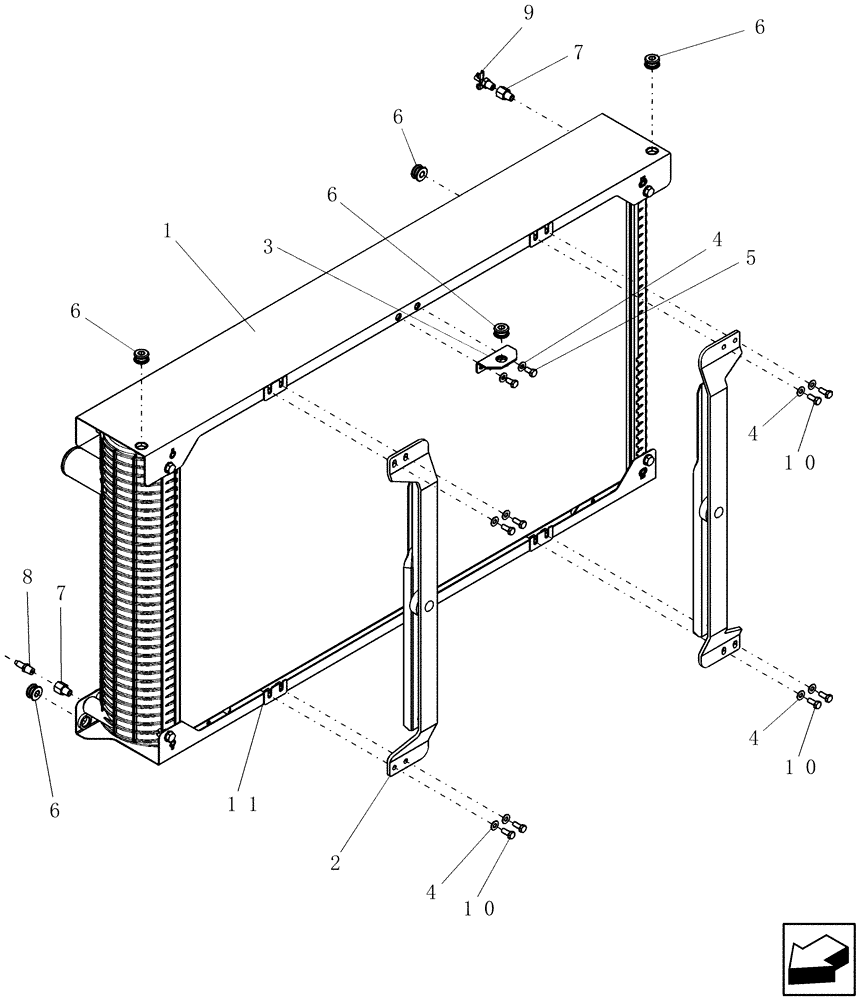

Запчасти Case IH 8010 (10.406.07[01]) - RADIATOR & DUAL WIPER BLADE ASSEMBLY - PRIOR TO PIN HAJ202001 - 8010 (10) - ENGINE

1

87284213

RADIATOR

1шт.

2

87579726

ARM ASSY.

Supporting, CAC Chaff Wiper

2шт.

3

87106644

BRACKET

Radiator

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

6

86976579

ISOLATOR,28.07mm OD x 25.91mm L

5шт.

7

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

2шт.

8

847367

FITTING,5/16" Hose x 1/4" NPTF, Barbed

1шт.

9

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

11

87589819

SHIM

1шт.
