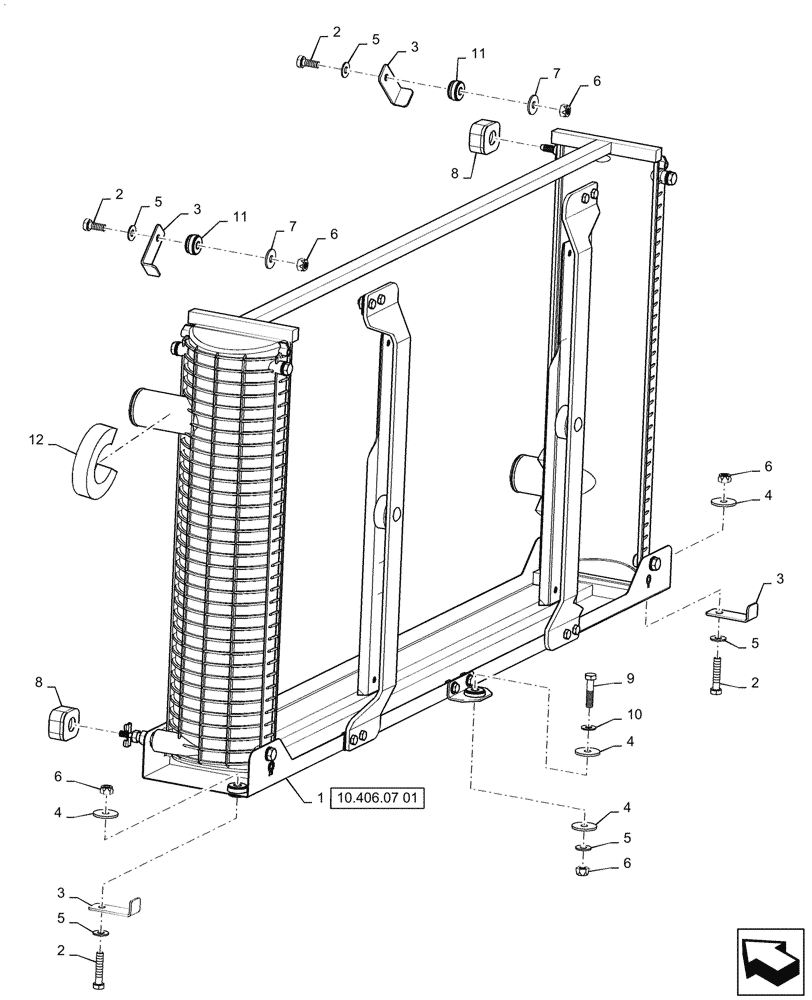

Запчасти Case IH 8010 (10.406.04[01]) - RADIATOR MOUNTING - PRIOR TO PIN HAJ202001 - 8010 (10) - ENGINE

1

0C

ORDER COMPONENTS

1шт.

2

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

3

87106857

BRACKET

Isomount Spacer

4шт.

4

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

6шт.

5

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

5шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.

7

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

8

87590631

SEAL

2шт.

9

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

11

86976579

ISOLATOR,28.07mm OD x 25.91mm L

1шт.

12

87105917

SEALANT

Radiator

2шт.
