(10.304.05[01]) - OIL PRESSURE REGULATION VALVE - 7010

Запчасти Case IH 8010 (10.304.05[01]) - OIL PRESSURE REGULATION VALVE - 7010 (10) - ENGINE

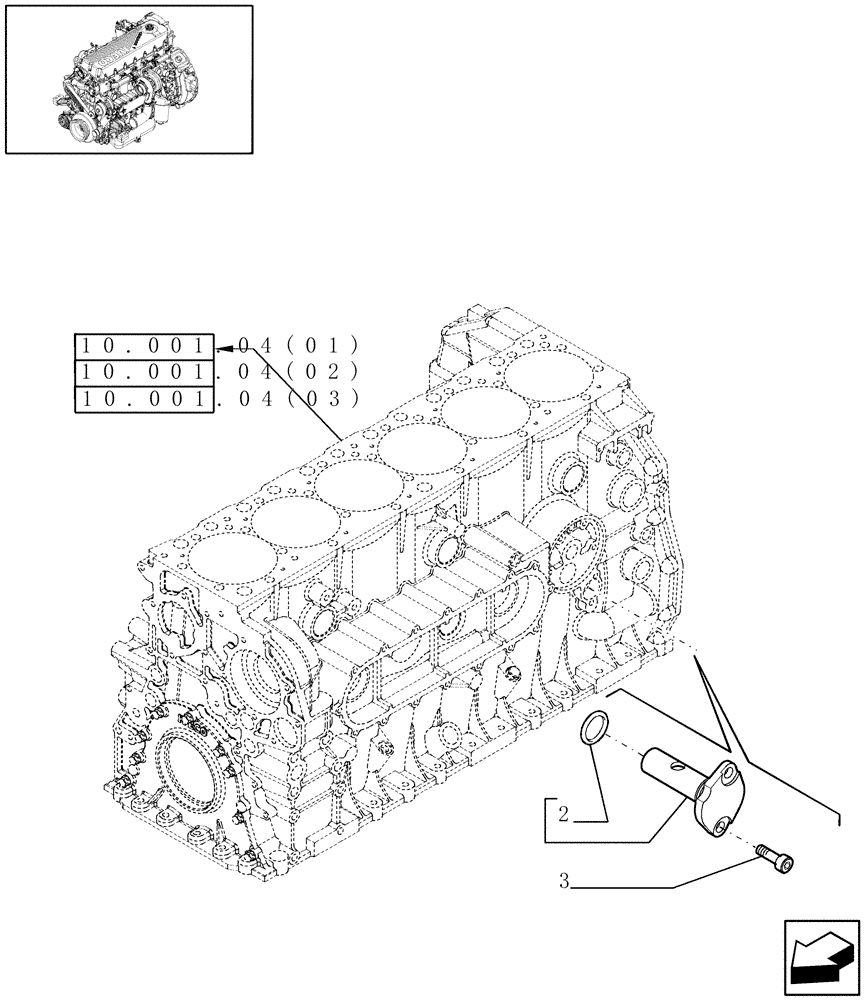

Схема запчастей Case IH 8010 - (10.304.05[01]) - OIL PRESSURE REGULATION VALVE - 7010 (10) - ENGINE
10.001.04(03)
10.001.04(02)
10.001.04(01)
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504191876

VALVE

ASSY

1шт.

2

14463281

O-RING,0.984" ID x 0.139" Width

D = 24.9 mm, Thk = 3.5 mm

1шт.

3

18053625

SCREW,M8 x 16mm

M8 x 16

2шт.
