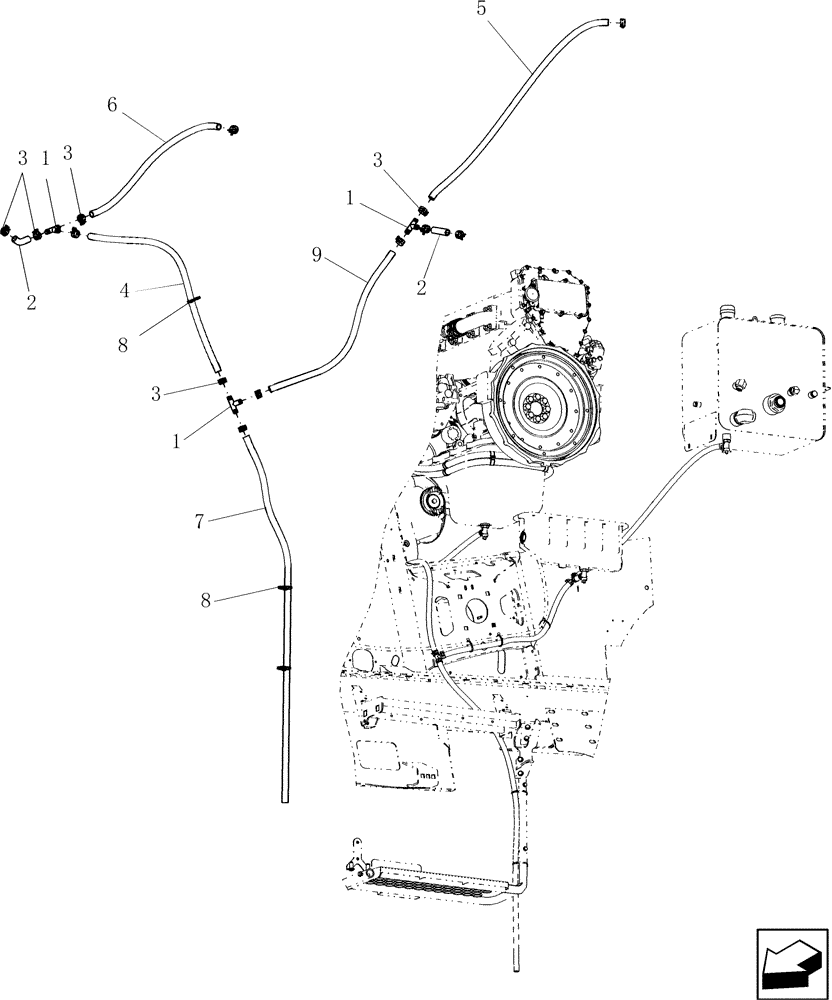

Запчасти Case IH 8010 (10.102.07[02]) - OIL DRAIN LINES - 9010 (10) - ENGINE

1

87107102

TEE,5/8" Barb

3шт.

2

1977295C1

TUBE

75mm; From Valves on Rotor Gearbox and PTO Gearbox Oil Pan

2шт.

Order Per Foot, As Needed

1шт.

3

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

13шт.

4

1977295C1

TUBE

1150mm

1шт.

Order Per Foot, As Needed

1шт.

5

1977295C1

TUBE

940mm; Drain - From Valve on Hydraulic Oil Reservoir

1шт.

Order Per Foot, As Needed

1шт.

6

1977295C1

TUBE

710mm; Drain - (1) From Valve on Engine Oil Pan

1шт.

Order Per Foot, As Needed

1шт.

7

1977295C1

TUBE

1500mm

1шт.

Order Per Foot, As Needed

1шт.

8

86566989

CABLE TIE,208mm L

CABLE STRAP

5шт.

9

1977295C1

TUBE

900mm

1шт.

Order Per Foot, As Needed

1шт.
