Запчасти Case IH 7240 (90.110.AU[04]) - TRIM, BODY, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

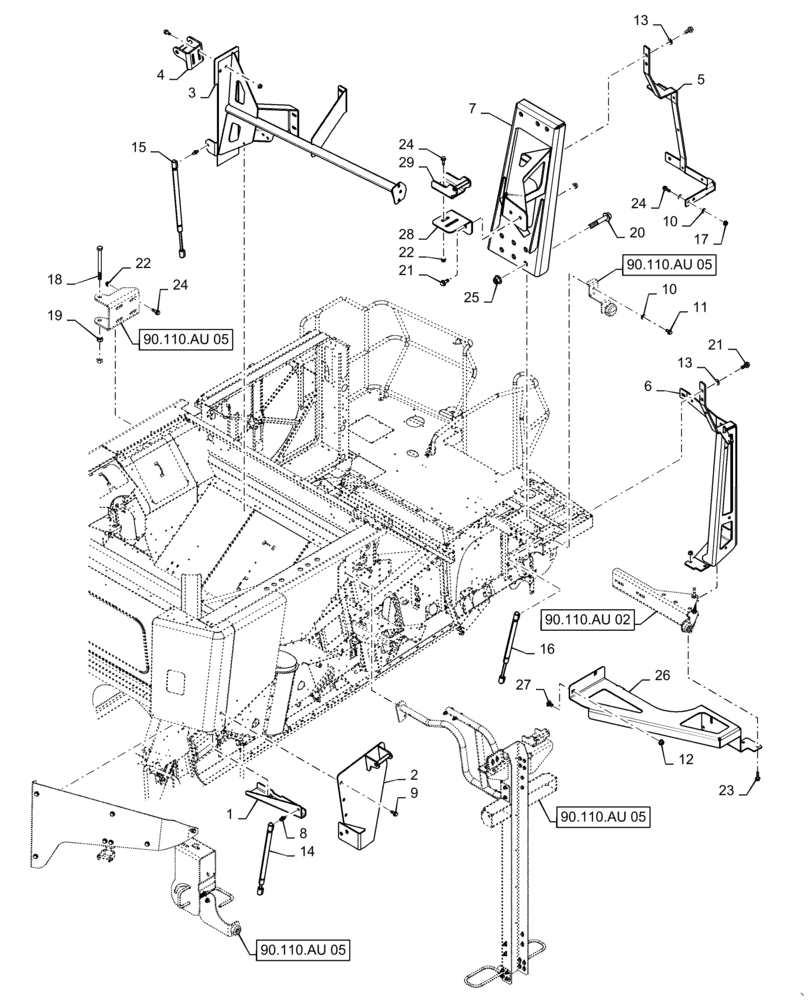

Схема запчастей Case IH 7240 - (90.110.AU[04]) - TRIM, BODY, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
8
19
20
1
24
90.110.au 05
28
10
21
4
90.110.au 05
22
6
24
11
13
12
10
5
13
25
22
27
17
2
26
90.110.au 05
16
21
3
9
7
90.110.au 02
15
90.110.au 05
29
24
14
23

Артикул

Название

Примечание

Количество

1

84337457

BRACKET

Panel Support

1шт.

2

87659014

SUPPORT ASSY.

Panel Latch

1шт.

3

47693306

SUPPORT

Panel

1шт.

4

87728296

BRACKET

Latch

1шт.

5

84183860

BRACKET

Inner Trim Strap

1шт.

6

84211637

BRACKET

Rear Support

1шт.

7

47519174

SUPPORT

Vertical

1шт.

8

83952214

BALL STUD,M8 x 29.5mm OAL

Strut Mount

3шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

11шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

11

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

14

87728305

STRUT

LH, Front

1шт.

15

87108532

STRUT

LH, Center

3шт.

16

87728304

STRUT

LH, Rear

1шт.

17

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

18

328048

BOLT,M12 x 1.75 x 147.68mm OAL, Cl 8.8

1шт.

19

9706685

NUT,M12 x 1.75, Cl 8

2шт.

20

47616478

BOLT,M16 x 105.4mm OAL, Cl 10.9

6шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

23

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

24

87698833

BOLT,M8 x 33.1mm, Cl 10.9

7шт.

25

87016581

FLANGE NUT,M16 x 2, CI 10

6шт.

26

47479906

BRACKET

Rear Support

1шт.

27

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

3шт.

28

84386382

SUPPORT

Shield

1шт.

29

87475017

BRACKET

Trim Panel

1шт.

Выбрано товаров: 29
