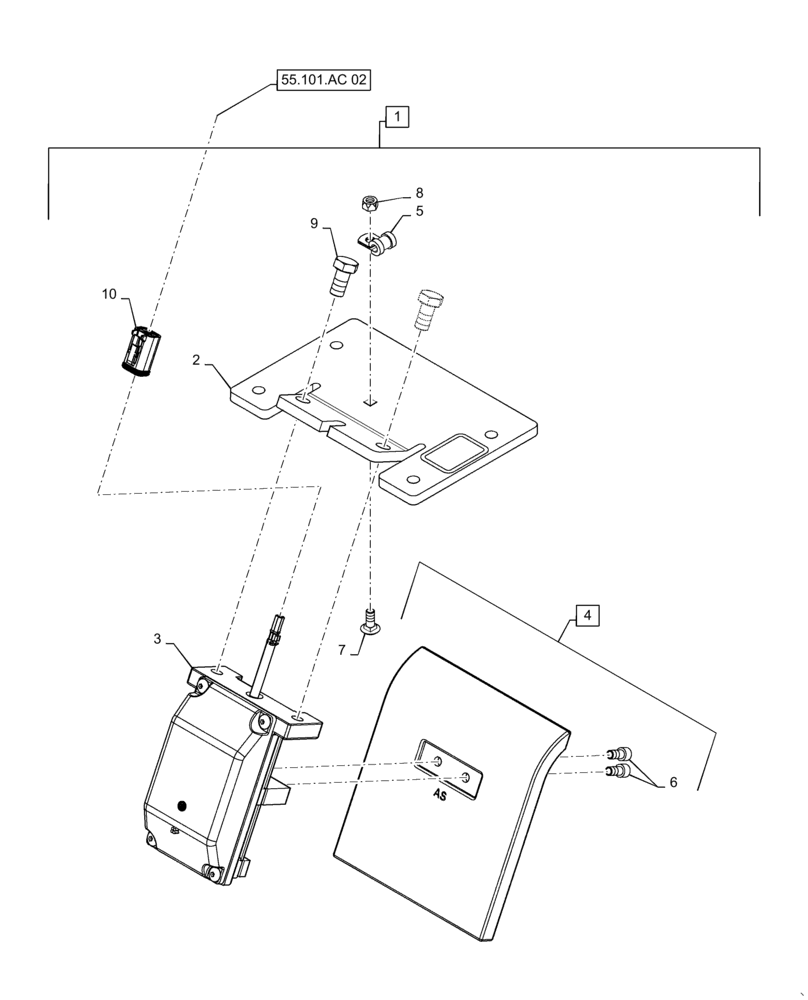

Запчасти Case IH 7240 (55.785.AS[02]) - VAR - 722611 - GRAIN ELEVATOR, SENSOR, YIELD MONITOR (55) - ELECTRICAL SYSTEMS

1

47552013

SENSOR

Grain Flow, Incl 2 - 10

1шт.

1

47552013R

REMAN-SENSOR

Grain Flow

1шт.

1

47552013C

CORE-SENSOR

Return Number

1шт.

2

NS

NOT SERVICED

Mounting Plate, Grain Flow Sensor, Incl in 1

1шт.

3

NS

NOT SERVICED

Load Cell, Incl in 1

1шт.

4

47592682

PLATE

Impact, Incl 6

1шт.

5

10440990

CLAMP,6mm, Coat, P Type

1шт.

6

81960

SCREW,1/4" - 20 x 1/2"

2шт.

7

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

1шт.

8

353308

NUT,M6 x 1.0, Cl 8

1шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

10

87694101

ELEC CONNECTOR,Female, 4 Cavities

Male, Grain Flow Sensor

1шт.
