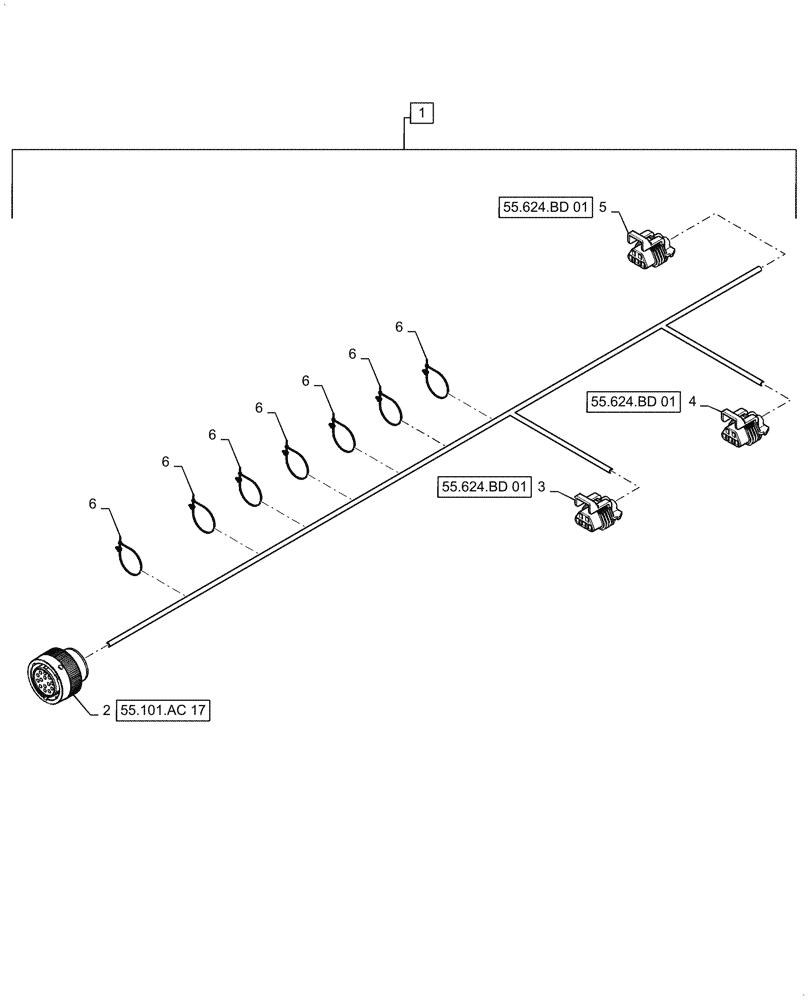

Запчасти Case IH 7240 (55.624.BD[02]) - CHAFF SPREADER ADJUSTER WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47501342
WIRE HARNESS
Spreader Adjust, Incl 2 - 6
1шт.
2
87703931
ELEC CONNECTOR
Expansion Harness, X-231
1шт.
2
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Expansion Harness, X-231
11шт.
3
87693327
WIRE CONNECTOR
Spread Adjust, LH, X-541
1шт.
3
87693358
LOCK
Spread Adjust, LH, X-541
1шт.
3
87689629
SEAL
Spread Adjust, LH, X-541
1шт.
3
87688852
ELEC. TERMINAL PIN
Spread Adjust, LH, X-541
5шт.
3
87689629
SEAL
Spread Adjust, LH, X-541
5шт.
4
87693327
WIRE CONNECTOR
Spread Adjust, Center, X-543
1шт.
4
87693358
LOCK
Spread Adjust, Center, X-543
1шт.
4
87689629
SEAL
Spread Adjust, Center, X-543
1шт.
4
87688852
ELEC. TERMINAL PIN
Spread Adjust, Center, X-543
5шт.
4
87689629
SEAL
Spread Adjust, Center, X-543
5шт.
5
87693327
WIRE CONNECTOR
Spread Adjust, RH, X-542
1шт.
5
87693358
LOCK
Spread Adjust, RH, X-542
1шт.
5
87689629
SEAL
Spread Adjust, RH, X-542
1шт.
5
87688852
ELEC. TERMINAL PIN
Spread Adjust, RH, X-542
5шт.
5
87689629
SEAL
Spread Adjust, RH, X-542
5шт.
6
87741307
SECURING STRAP
Fir Tree
7шт.
Выбрано товаров: 19
