Запчасти Case IH 7240 (55.624.BD[01]) - VAR - 425340, 425543 - WIRE HARNESS, CHAFF SPREADER, ADJUSTER (55) - ELECTRICAL SYSTEMS

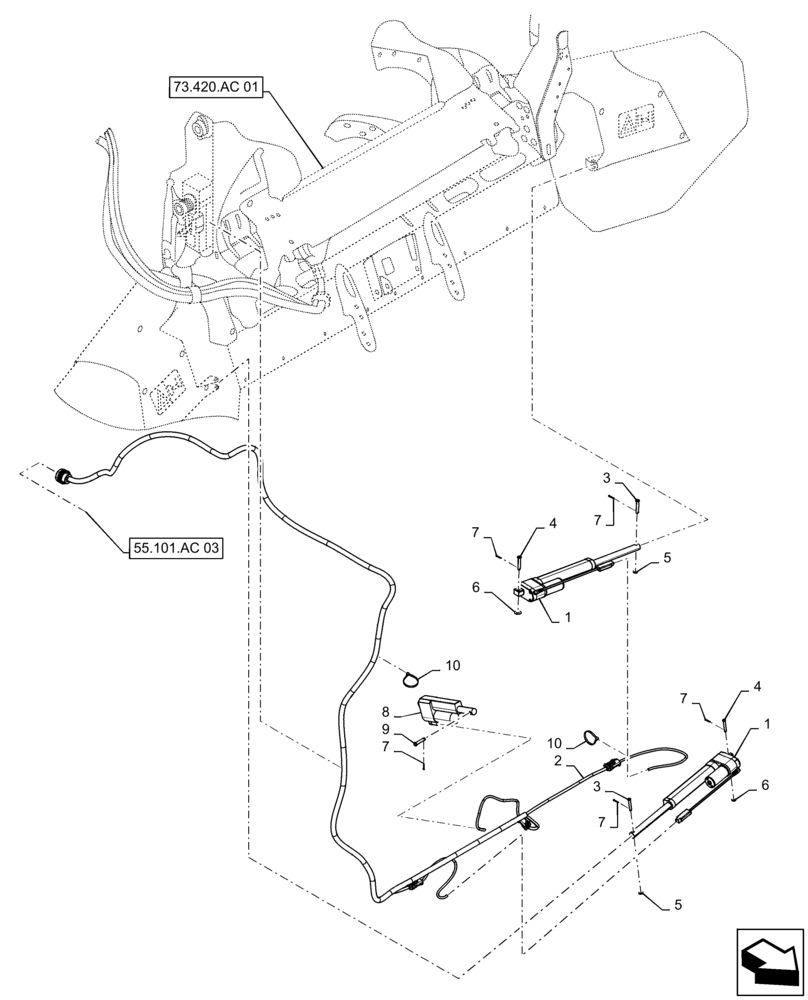

Схема запчастей Case IH 7240 - (55.624.BD[01]) - VAR - 425340, 425543 - WIRE HARNESS, CHAFF SPREADER, ADJUSTER (55) - ELECTRICAL SYSTEMS
7
7
7
10
6
1
3
73.420.ac 01
4
10
3
7
5
7
9
1
55.101.ac 03
2
8
6
5
4

Артикул

Название

Примечание

Количество

1

84208481

ACTUATOR

Spreader Adjust, 174mm Stroke Length

2шт.

1

84208481R

REMAN-ELECTRIC MOTOR

2шт.

1

84208481C

CORE-ELECTRIC MOTOR

Return Number

2шт.

2

47501342

WIRE HARNESS

Spreader Adjust

1шт.

3

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

2шт.

4

84256797

HEADED PIN,7.94mm OD x 44.45mm L

5/16" OD x 1-3/4" OAL, Gr 5

2шт.

5

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

2шт.

6

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

7

300408

COTTER PIN,M3.2 x 14mm OAL

6шт.

8

84277017

ACTUATOR

50mm Stroke Length, No Limit Switches

1шт.

9

84218886

PIN

5/16" OD x 1-5/8" OAL, Gr 2

2шт.

10

86566989

CABLE TIE,208mm L

11шт.

Выбрано товаров: 12
