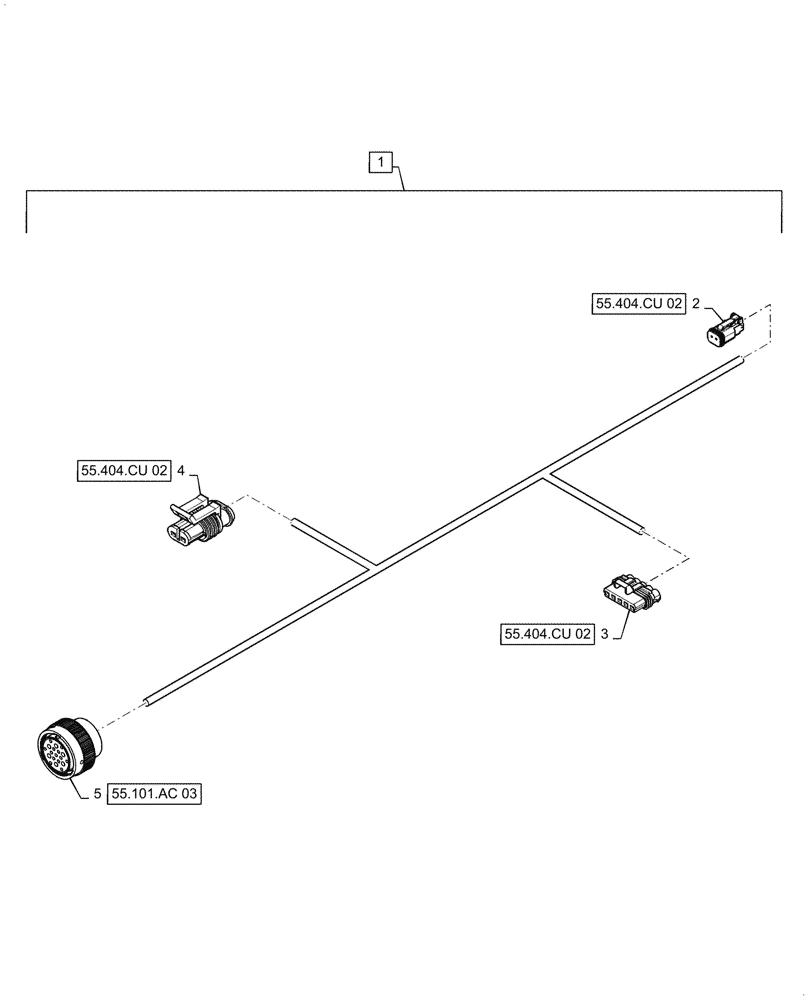

Запчасти Case IH 7240 (55.404.CU[05]) - VAR - 425344 - UNLOADING TUBE WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

84538980

WIRE HARNESS

Unload Tube, Incl 2 - 5

1шт.

2

87695909

ELEC CONNECTOR,Female, 2 Pole

Unload Tube Light, X-322

1шт.

2

87712180

ELEC CONNECTOR

Unload Tube Light, X-322

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Unload Tube Light, X-322

2шт.

3

87693690

ELEC CONNECTOR

Pivot Spout Actuator, X-392

1шт.

3

84199352

ELEC CONNECTOR

Pivot Spout Actuator, X-392

1шт.

3

87693731

STOP LOCK

Pivot Spout Actuator, X-392

1шт.

3

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Pivot Spout Actuator, X-392

2шт.

3

87680710

SEAL

Pivot Spout Actuator, X-392

2шт.

3

87680656

CONTACT

Pivot Spout Actuator, X-392

3шт.

3

87680701

SEAL

Pivot Spout Actuator, X-392

3шт.

4

82012083

WIRE CONNECTOR,Female

Front Marker Light Harness, X-641

1шт.

4

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Front Marker Light Harness, X-641

2шт.

4

82012084

SEAL,1.4mm ID

Front Marker Light Harness, X-641

2шт.

5

87703940

ELEC CONNECTOR

LH Main Frame, X-640

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Main Frame, X-640

7шт.

5

87695923

TERMINAL

LH Main Frame, X-640

2шт.
