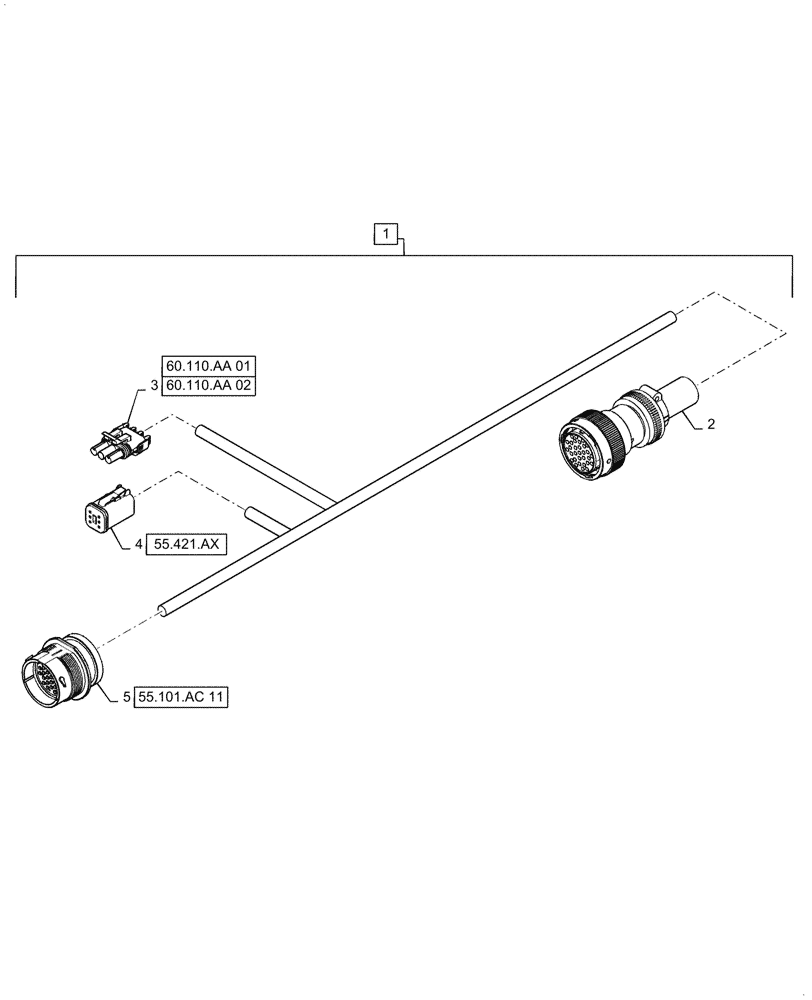

Запчасти Case IH 7240 (55.101.AC[26]) - FEEDER WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47612346

WIRE HARNESS

Feeder, Incl 2 - 5

1шт.

2

87716976

ELEC CONNECTOR

Header, X-032

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Header, X-032

26шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Header, X-032

2шт.

3

87644909

WIRE CONNECTOR,Female, 3 Pins

Lateral Float, X-081

1шт.

3

87680701

SEAL

Lateral Float, X-081

1шт.

3

87692856

CABLE TERMINAL

Lateral Float, X-081

3шт.

3

87680701

SEAL

Lateral Float, X-081

3шт.

4

87694109

ELEC CONNECTOR

Third Axle, X-976

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Third Axle, X-976

6шт.

5

47635336

ELEC CONNECTOR

Front Frame Harness, X-025

1шт.

5

47696698

Front Frame Harness, X-025

ELEC CONNECTOR

1шт.

5

87695623

ELEC. TERMINAL PIN

Front Frame Harness, X-025

28шт.

5

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Front Frame Harness, X-025

2шт.
