Запчасти Case IH 7240 (55.101.AC[24]) - LOWER FRAME REAR WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

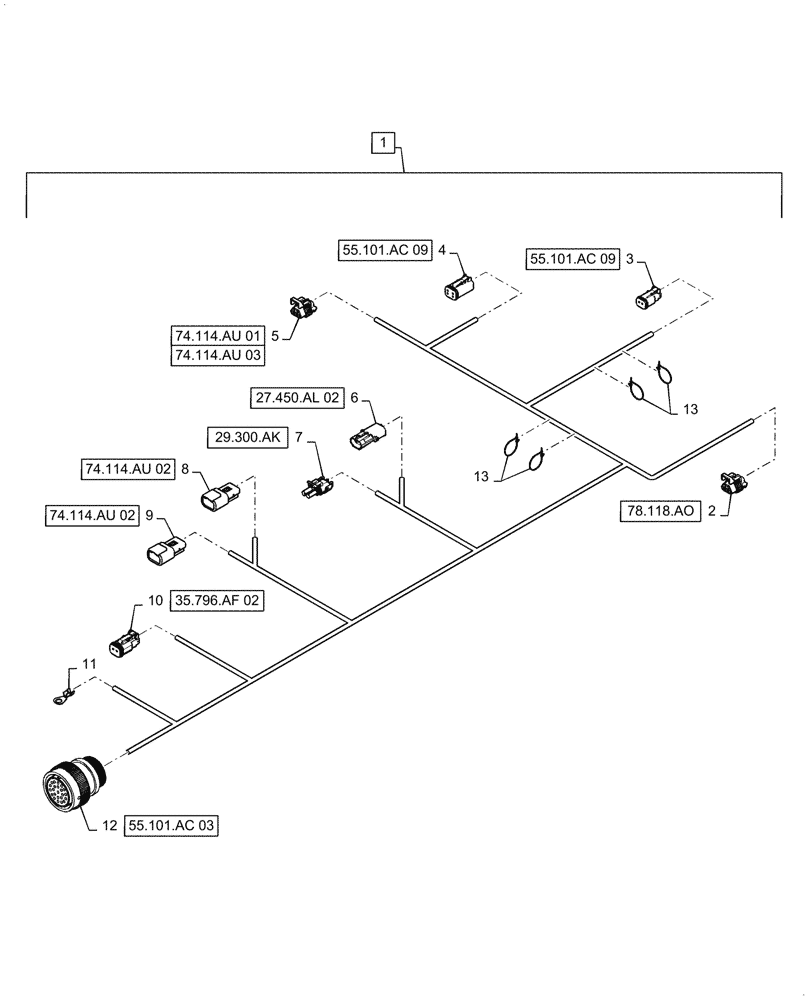

Схема запчастей Case IH 7240 - (55.101.AC[24]) - LOWER FRAME REAR WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS
35.796.af 02
11
9
1
13
13
5
12
3
10
6
7
8
2
4
29.300.ak
74.114.au 02
74.114.au 02
78.118.ao
55.101.ac 03
74.114.au 03
74.114.au 01
27.450.al 02
55.101.ac 09
55.101.ac 09

Артикул

Название

Примечание

Количество

1

47427782

WIRE HARNESS

Lower Frame Rear, Incl 2 - 13

1шт.

2

87693327

WIRE CONNECTOR

Lower Sieve Actuator, X-228

1шт.

2

87693358

LOCK

Lower Sieve Actuator, X-228

1шт.

2

87688852

ELEC. TERMINAL PIN

Lower Sieve Actuator, X-228

5шт.

2

87689629

SEAL

Lower Sieve Actuator, X-228

5шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Sieve Shake RPM, X-181

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Sieve Shake RPM, X-181

2шт.

4

87694153

CONTACT HOUSING,Female, 4 Cavities

Sieve Loss, X-232

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Sieve Loss, X-232

1шт.

4

84074640

LOCKING TAB,Wedge Lock

Sieve Loss, X-232

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Sieve Loss, X-232

3шт.

5

87693327

WIRE CONNECTOR

Upper Sieve Actuator, X-227

1шт.

5

87693358

LOCK

Upper Sieve Actuator, X-227

1шт.

5

87688852

ELEC. TERMINAL PIN

Upper Sieve Actuator, X-227

5шт.

5

87689629

SEAL

Upper Sieve Actuator, X-227

5шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

2 Speed Rear Axle, X-293

1шт.

6

87692880

CABLE TERMINAL

2 Speed Rear Axle, X-293

2шт.

6

87680701

SEAL

2 Speed Rear Axle, X-293

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

Rear Wheel Assist Solenoid, X-233

1шт.

7

87692856

CABLE TERMINAL

Rear Wheel Assist Solenoid, X-233

2шт.

7

87680701

SEAL

Rear Wheel Assist Solenoid, X-233

2шт.

8

84817101

ELEC CONNECTOR,Male, 16 - 20 SAE

Lower Sieve Switch, X-226

1шт.

8

84817102

LOCKING TAB,Wedge Lock, 3-Pin

Lower Sieve Switch, X-226

1шт.

8

87696141

TERMINAL

Lower Sieve Switch, X-226

3шт.

9

84817101

ELEC CONNECTOR,Male, 16 - 20 SAE

Upper Sieve Switch, X-225

1шт.

9

84817102

LOCKING TAB,Wedge Lock, 3-Pin

Upper Sieve Switch, X-225

1шт.

9

87696141

TERMINAL

Upper Sieve Switch, X-225

3шт.

10

87695909

ELEC CONNECTOR,Female, 2 Pole

Chaff Spreader Solenoid, X-235

1шт.

10

87712180

ELEC CONNECTOR

Chaff Spreader Solenoid, X-235

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Chaff Spreader Solenoid, X-235

2шт.

11

84127303

TERMINAL

Ground, X-950

1шт.

12

87704434

ELEC CONNECTOR

Expansion Harness, X-072

1шт.

12

87696197

NUT

Expansion Harness, X-072

1шт.

12

87696199

SEALING RING

Expansion Harness, X-072

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Expansion Harness, X-072

22шт.

13

87741307

SECURING STRAP

Fir Tree

5шт.

Выбрано товаров: 36
