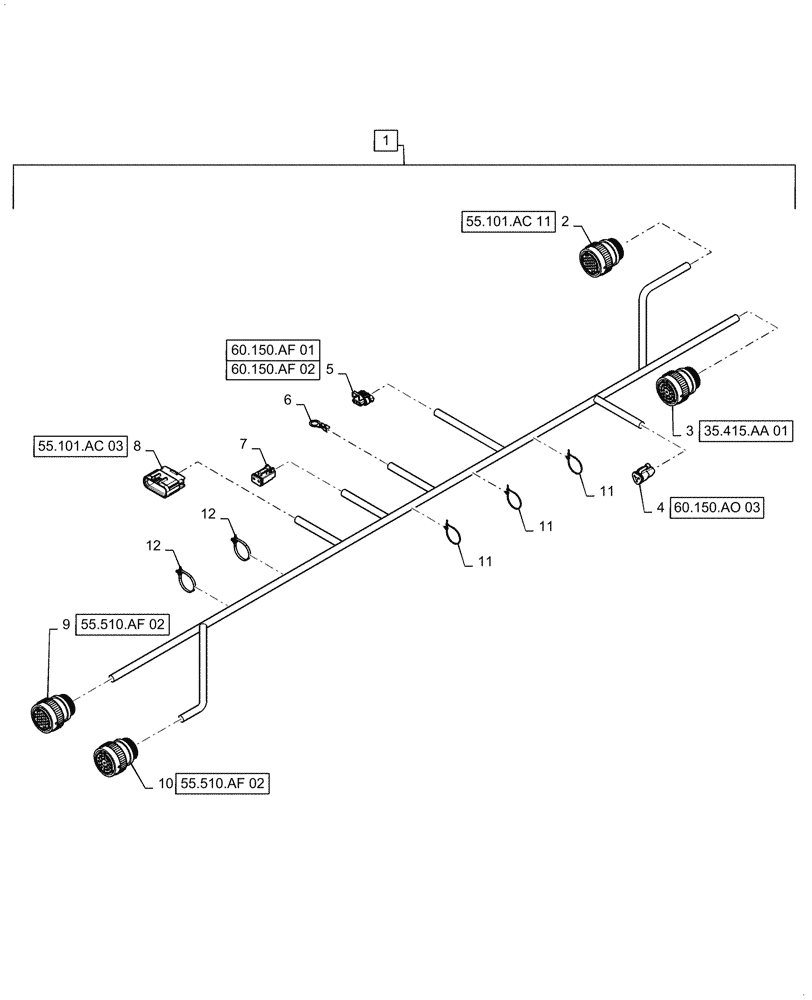

Запчасти Case IH 7240 (55.101.AC[23]) - MAIN FRAME FRONT WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47613017

WIRE HARNESS

Main Frame Front, Incl 2 - 12

1шт.

2

87704522

ELEC CONNECTOR

Feeder, X-025

1шт.

2

87696197

NUT

Feeder, X-025

1шт.

2

87696199

SEALING RING

Feeder, X-025

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Feeder, X-025

2шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Feeder, X-025

28шт.

3

87704434

ELEC CONNECTOR

Valve Stack, X-021

1шт.

3

87696197

NUT

Valve Stack, X-021

1шт.

3

87696199

SEALING RING

Valve Stack, X-021

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Valve Stack, X-021

14шт.

4

87695580

ELEC CONNECTOR,Female, 3 Pole

Feeder RPM, X-284

1шт.

4

84074639

LOCKING TAB,Wedge Lock

Feeder RPM, X-284

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Feeder RPM, X-284

3шт.

5

87693712

ELEC CONNECTOR,Female, 3 Cavities

Feed Rate Sensor, X-525

1шт.

5

87688852

ELEC. TERMINAL PIN

Feed Rate Sensor, X-525

3шт.

5

87689629

SEAL

Feed Rate Sensor, X-525

3шт.

6

84398834

TERMINAL

Ground, X-953

1шт.

7

87711966

PLUG

Vertical Knives, X-473

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Vertical Knives, X-473

2шт.

8

84137497

LH Mainframe, X-050

ELEC CONNECTOR

1шт.

8

87745379

PLUG

LH Mainframe, X-050

1шт.

8

84193152

TERMINAL

LH Mainframe, X-050

5шт.

8

84143101

SEAL

LH Mainframe, X-050

5шт.

9

87704522

ELEC CONNECTOR

Front Frame A, X-001

1шт.

9

87696197

NUT

Front Frame A, X-001

1шт.

9

87696199

SEALING RING

Front Frame A, X-001

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Front Frame A, X-001

26шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Front Frame A, X-001

2шт.

10

87704434

ELEC CONNECTOR

Front Frame B, X-002

1шт.

10

87696197

NUT

Front Frame B, X-002

1шт.

10

87696199

SEALING RING

Front Frame B, X-002

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Front Frame B, X-002

16шт.

10

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Front Frame B, X-002

2шт.

11

87741307

SECURING STRAP

Fir Tree

3шт.

12

84266055

PLASTIC

Fir Tree Clip

2шт.
