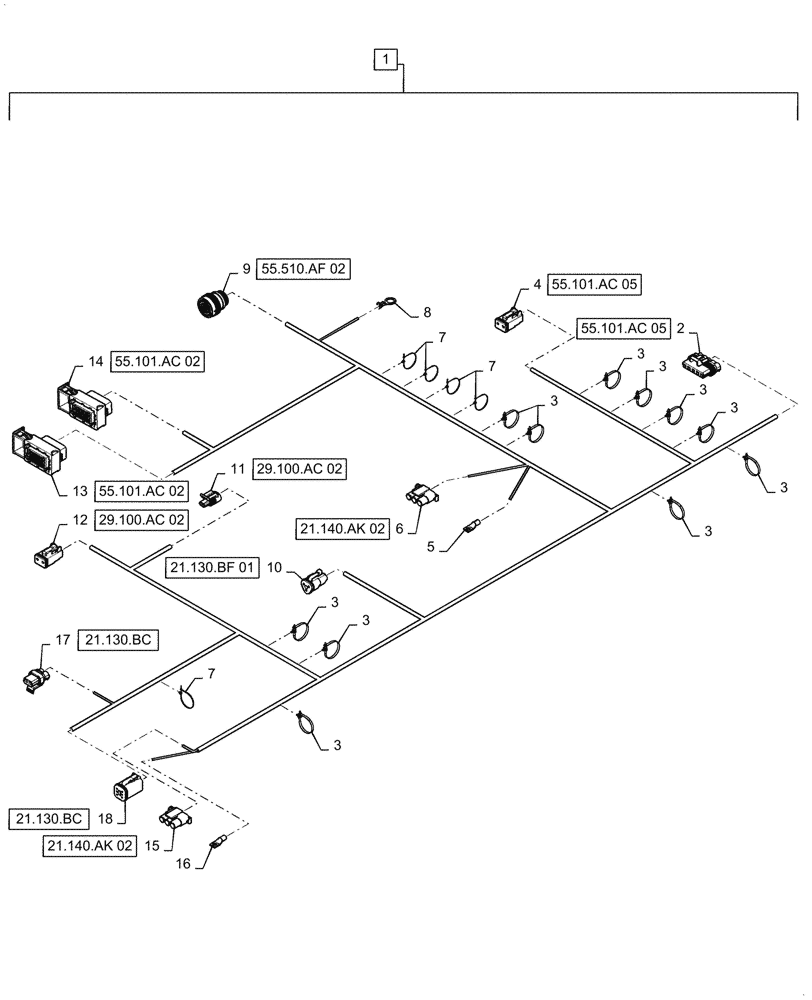

Запчасти Case IH 7240 (55.101.AC[19]) - FRONT LOWER FRAME WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47501341

WIRE HARNESS

Front Lower Frame, Incl 2 - 18

1шт.

2

87693690

ELEC CONNECTOR

Shoe Motor, X-088

1шт.

2

87693731

STOP LOCK

Shoe Motor, X-088

1шт.

2

87680656

CONTACT

Shoe Motor, X-088

3шт.

2

87680701

SEAL

Shoe Motor, X-088

3шт.

2

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Shoe Motor, X-088

2шт.

2

87680710

SEAL

Shoe Motor, X-088

2шт.

3

84266055

PLASTIC

Fir Tree

11шт.

4

87711966

PLUG

Electrical, Cleaning Fan RPM, X-089

1шт.

4

87712180

ELEC CONNECTOR

Cleaning Fan RPM, X-089

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cleaning Fan RPM, X-089

2шт.

5

84138836

TERMINAL

RH Brake End, X-295

1шт.

6

87691459

RH Brake Pads, X-085

ELEC CONNECTOR

1шт.

6

87691484

RH Brake Pads, X-085

ELEC. TERMINAL PIN

2шт.

7

87741307

SECURING STRAP

Fir Tree

5шт.

8

84127303

TERMINAL

Ground, X-945

1шт.

9

87704432

Cab, X-011

ELEC CONNECTOR

1шт.

9

87696197

NUT

Cab, X-011

1шт.

9

87696199

SEALING RING

Cab, X-011

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab, X-011

15шт.

9

87695923

TERMINAL

Cab, X-011

4шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

Ground RPM, X-087

1шт.

10

84074639

LOCKING TAB,Wedge Lock

Ground RPM, X-087

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Ground RPM, X-087

3шт.

11

82012093

WIRE CONNECTOR

Hydrostat Temp, X-091

1шт.

11

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Hydrostat Temp, X-091

2шт.

12

87711966

PLUG

Ground Drive Motor, X-092

1шт.

12

87712180

ELEC CONNECTOR

Ground Drive Motor, X-092

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Ground Drive Motor, X-092

2шт.

13

84155775

MULTIPOLE CONNECTOR,Female, 24 Cavities

H Bridge CN2, X-023

1шт.

13

87714248

LOCKING TAB,Wedge Lock

H Bridge CN2, X-023

1шт.

13

87708543

CABLE TERMINAL

H Bridge CN2, X-023

11шт.

13

87697192

CABLE TERMINAL,Tin, 1.00 - 2.50mm

H Bridge CN2, X-023

1шт.

14

87699386

MULTIPOLE CONNECTOR,Female, 24 Pole

H Bridge CN3, X-024

1шт.

14

87714248

LOCKING TAB,Wedge Lock

H Bridge CN3, X-024

1шт.

14

84361889

ELEC. TERMINAL PIN

H Bridge CN3, X-024

4шт.

14

87708543

CABLE TERMINAL

H Bridge CN3, X-024

11шт.

15

87691459

LH Brake Pads, X-084

ELEC CONNECTOR

1шт.

15

87691484

LH Brake Pads, X-084

ELEC. TERMINAL PIN

2шт.

16

84138836

TERMINAL

LH Brake Ground, X-294

1шт.

17

87679438

WIRE CONNECTOR,Female

Trans Shift Motor, X-094

1шт.

17

84806458

COLLAR

Trans Shift Motor, X-094

1шт.

17

87680710

SEAL

Trans Shift Motor, X-094

1шт.

17

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Trans Shift Motor, X-094

2шт.

17

87680710

SEAL

Trans Shift Motor, X-094

2шт.

18

87708148

ELEC CONNECTOR

Shift Position, X-093

1шт.

18

87694150

LOCKING TAB,Wedge Lock

Shift Position, X-093

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Shift Position, X-093

6шт.
