Запчасти Case IH 7240 (55.015.AB[07]) - ENGINE, WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

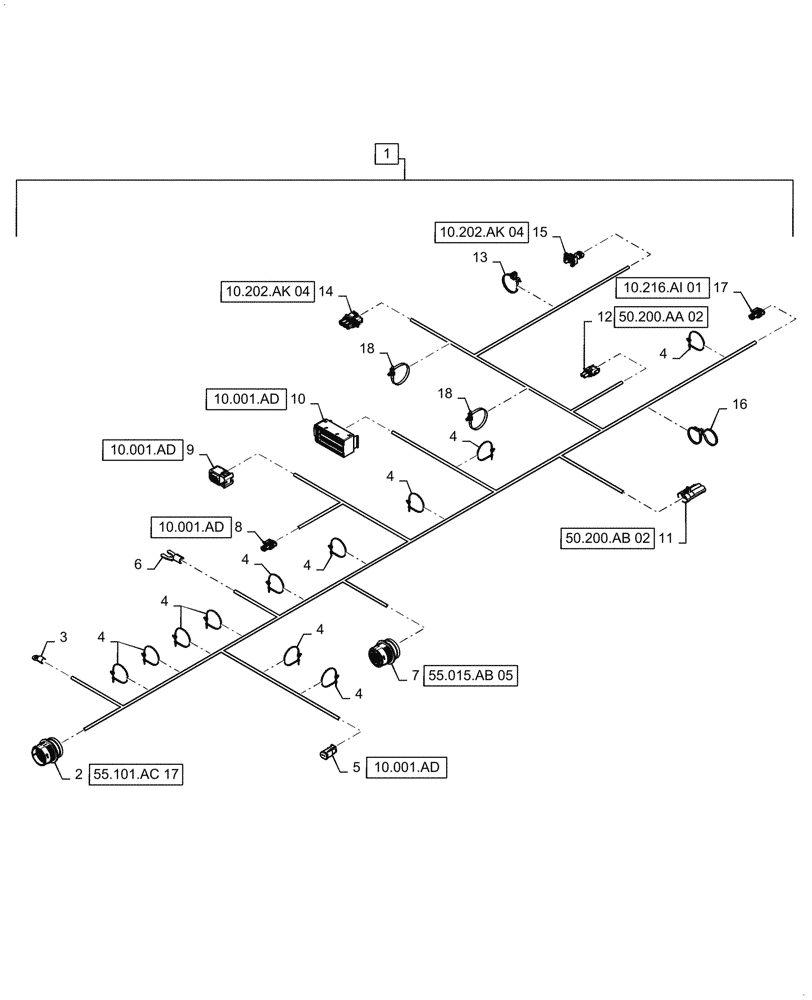

Схема запчастей Case IH 7240 - (55.015.AB[07]) - ENGINE, WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS
50.200.aa 02
4
18
4
11
6
4
14
12
3
18
8
2
4
16
13
4
7
10
4
5
17
1
15
4
4
9
4
55.101.ac 17
55.015.ab 05
10.216.ai 01
10.001.ad
10.001.ad
10.001.ad
10.001.ad
10.202.ak 04
10.202.ak 04
50.200.ab 02

Артикул

Название

Примечание

Количество

1

47973760

WIRE HARNESS

Engine, Incl 2 - 17

1шт.

2

47635336

ELEC CONNECTOR

To Expansion Harness, X-100

1шт.

2

47696698

To Expansion Harness, X-100

ELEC CONNECTOR

1шт.

2

84068583

PLUG,12 - 16 Ga, White

To Expansion Harness, X-100

12шт.

2

87695623

ELEC. TERMINAL PIN

To Expansion Harness, X-100

15шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

To Expansion Harness, X-100

4шт.

3

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Engine Ground, X-942

1шт.

4

87741307

SECURING STRAP

Fir Tree

11шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Engine Fan Solenoid, X-037

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Engine Fan Solenoid, X-037

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Engine Fan Solenoid, X-037

2шт.

6

84280973

Relay Coil, X-389

TERMINAL

1шт.

6

84286327

SEAL

Relay Coil, X-389

1шт.

7

84320484

ELEC CONNECTOR

To SCR Harness, X-637

1шт.

7

84068583

PLUG,12 - 16 Ga, White

To SCR Harness, X-637

11шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To SCR Harness, X-637

20шт.

8

82012083

WIRE CONNECTOR,Female

Grid Heater Coil, X-211

1шт.

8

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Grid Heater Coil, X-211

2шт.

8

82012084

SEAL,1.4mm ID

Grid Heater Coil, X-211

2шт.

9

84152563

ELEC CONNECTOR

Plug "C", X-608

1шт.

9

82035902

PLUG

Plug "C", X-608

1шт.

9

84129571

PLUG

Plug "C", X-608

2шт.

9

84152586

TERMINAL,Tin, 1.50 - 2.50mm

Plug "C", X-608

2шт.

9

87691478

SEAL

Plug "C", X-608

2шт.

9

84152576

TERMINAL

Plug "C", X-608

2шт.

9

84129570

SEAL

Plug "C", X-608

2шт.

10

84300197

ELEC CONNECTOR

To ECU, X-193

1шт.

10

84300193

LOCK

To ECU, X-193

1шт.

10

84300198

ELEC CONNECTOR

To ECU, X-193

1шт.

10

87497297

ELBOW

To ECU, X-193

1шт.

10

84300195

TERMINAL

To ECU, X-193

41шт.

11

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

A/C High Pressure, X-216

1шт.

11

87688862

LOCKING TAB

A/C High Pressure, X-216

1шт.

11

87688814

TERMINAL

A/C High Pressure, X-216

2шт.

11

87688858

SEAL

A/C High Pressure, X-216

2шт.

12

84364857

A/C Clutch, X-215

ELEC CONNECTOR

1шт.

12

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

A/C Clutch, X-215

2шт.

12

84286327

SEAL

A/C Clutch, X-215

2шт.

13

47762175

Cable Tie

CLIP

1шт.

14

87705967

ELEC CONNECTOR

Inlet Air Humd/Temp, X-607

1шт.

14

87702681

TERMINAL

Inlet Air Humd/Temp, X-607

4шт.

14

87691480

SEAL

Inlet Air Humd/Temp, X-607

4шт.

15

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Filter Switch, X-202

1шт.

15

87702681

TERMINAL

Air Filter Switch, X-202

2шт.

15

84607242

SEAL

Air Filter Switch, X-202

2шт.

16

47712804

Cable Tie

CLIP

1шт.

17

82012083

WIRE CONNECTOR,Female

Fuel Level Sensor, X-184

1шт.

17

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Fuel Level Sensor, X-184

2шт.

17

82012084

SEAL,1.4mm ID

Fuel Level Sensor, X-184

2шт.

18

47762175

Fir Tree

CLIP

2шт.
