Запчасти Case IH 7240 (39.101.AC[02]) - MAIN FRAME (39) - FRAMES AND BALLASTING

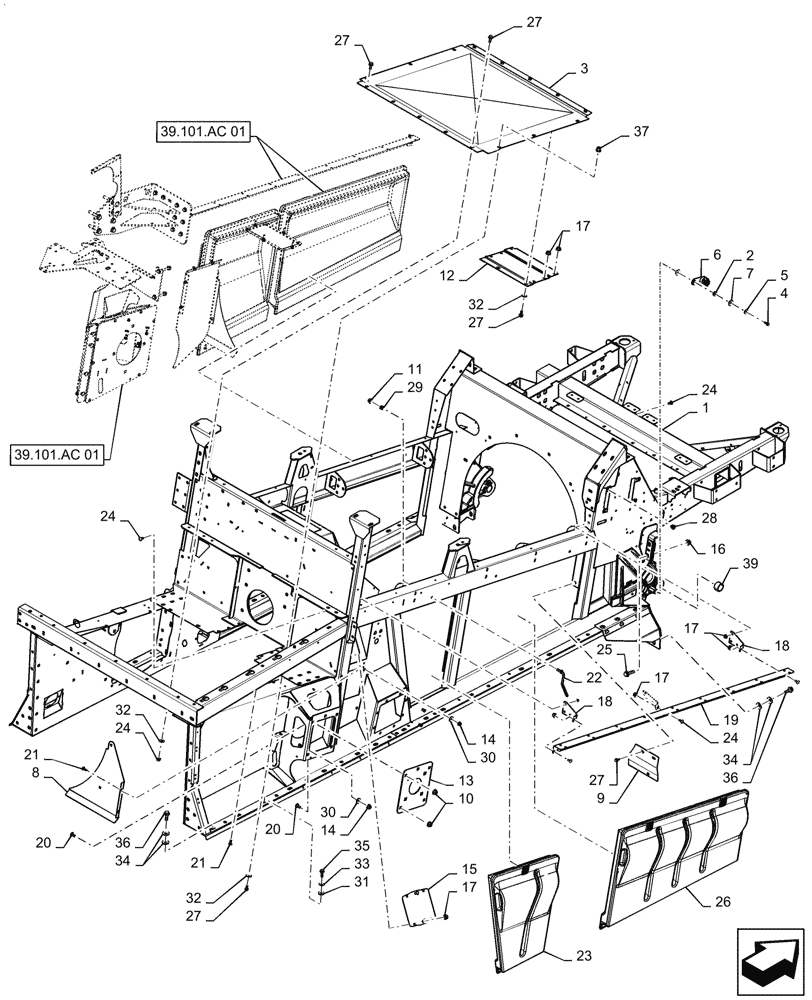

Схема запчастей Case IH 7240 - (39.101.AC[02]) - MAIN FRAME (39) - FRAMES AND BALLASTING
39.101.ac 01
18
16
27
12
17
24
33
23
22
30
31
24
29
13
37
27
34
1
32
8
35
17
20
20
4
9
18
14
17
39
27
19
28
11
24
7
21
27
14
6
5
34
36
17
15
10
36
32
26
30
24
25
32
3
27
2
21
39.101.ac 01

Артикул

Название

Примечание

Количество

1

47515778

FRAME

Threshing, Main

1шт.

2

87662443

SPACER

15.875mm OD x 12.445mm ID x 4.6mm L

2шт.

3

47695833

PANEL

Rear Frame

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

6

87282765

SENSOR

Feeder Height Position

1шт.

7

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

2шт.

8

87107515

PLATE

RH

1шт.

9

87516812

COVER

RH

1шт.

10

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

5шт.

11

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

3шт.

12

87685701

COVER ASSY

Rear, 412mm L x 293.2mm W

1шт.

13

87282128

BRACKET

RH, Mounting, 300mm L x 255mm W

1шт.

14

87681210

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

15

87727894

COVER PLATE

RH, 230mm L x 210mm W

1шт.

16

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

26шт.

18

84402169

BRACKET

Channel Mounting

3шт.

19

84402167

CHANNEL

2090mm L x 111mm W

1шт.

20

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

5шт.

21

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

8шт.

22

87106461

HANDLE

Latch Access Door

3шт.

23

86975029

DOOR

RH, Rotor, Rear

1шт.

24

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

12шт.

25

87675533

BOLT,M16 x 75.4mm, Cl 10.9

2шт.

26

87000991

DOOR

RH, Rotor, Front

1шт.

27

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

19шт.

28

86610200

THREADED INSERT,M8 x 1.25

4шт.

29

87281904

SPRING

Compression, 15.09mm OD x 22mm OAL

3шт.

30

140041

WASHER,M8 x 28mm OD x 3mm Thk

6шт.

31

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

13шт.

32

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

16шт.

33

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

13шт.

34

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

16шт.

35

87695413

BOLT,M12 x 51.8mm, Cl 10.9

13шт.

36

87698746

BOLT,Hex, M16 x 45mm, Cl 10.9

8шт.

37

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

2шт.

38

48064094

KIT

Topsheet, 6mm

1шт.

39

87280254

BUSHING,44.62mm ID x 50.86mm OD x 30mm L

Feeder Pivot

2шт.

Выбрано товаров: 39
