Запчасти Case IH 7240 (35.752.AC) - HYDRAULIC MOTOR, ENGINE, FAN (35) - HYDRAULIC SYSTEMS

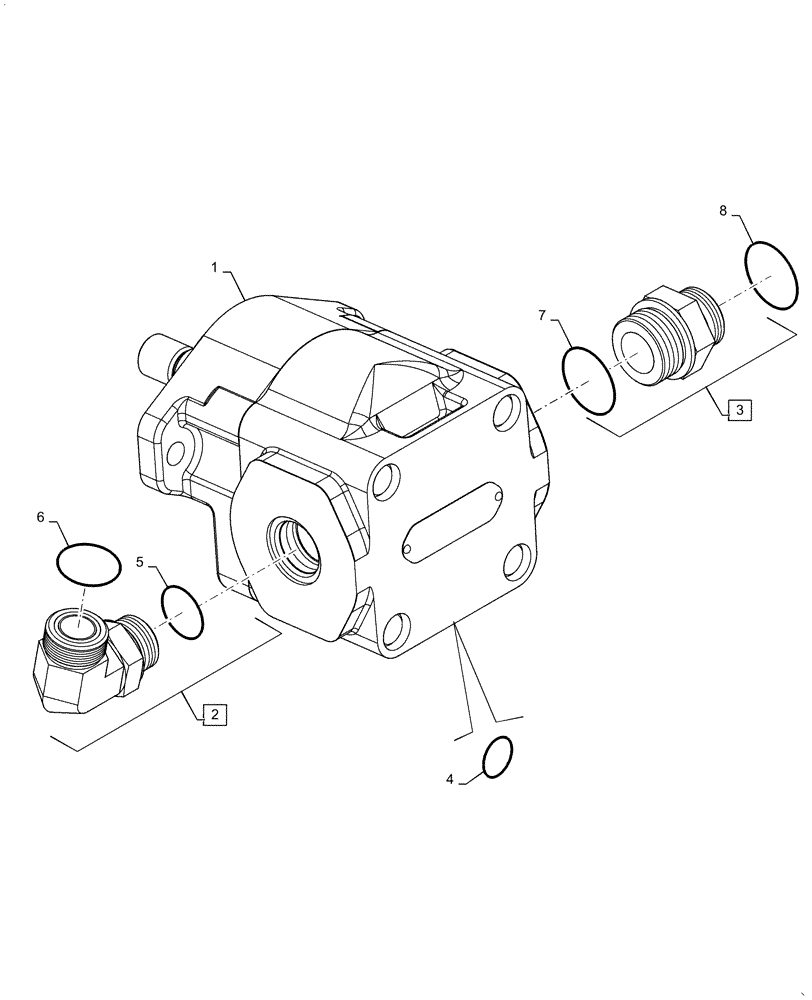

Схема запчастей Case IH 7240 - (35.752.AC) - HYDRAULIC MOTOR, ENGINE, FAN (35) - HYDRAULIC SYSTEMS
2
5
1
6
4
3
7
8

Артикул

Название

Примечание

Количество

1

47490657

MOTOR-PUMP

Hydraulic, Fan Drive

1шт.

2

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 5 - 6

1шт.

3

87530372

Connector, Incl 7

CONNECTING LINK

1шт.

4

47590624

SEAL KIT

Services 1, Contains 12 Seals

1шт.

5

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

7

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

Выбрано товаров: 8
