Запчасти Case IH 7240 (10.254.AD[03]) - EXHAUST SYSTEM (10) - ENGINE

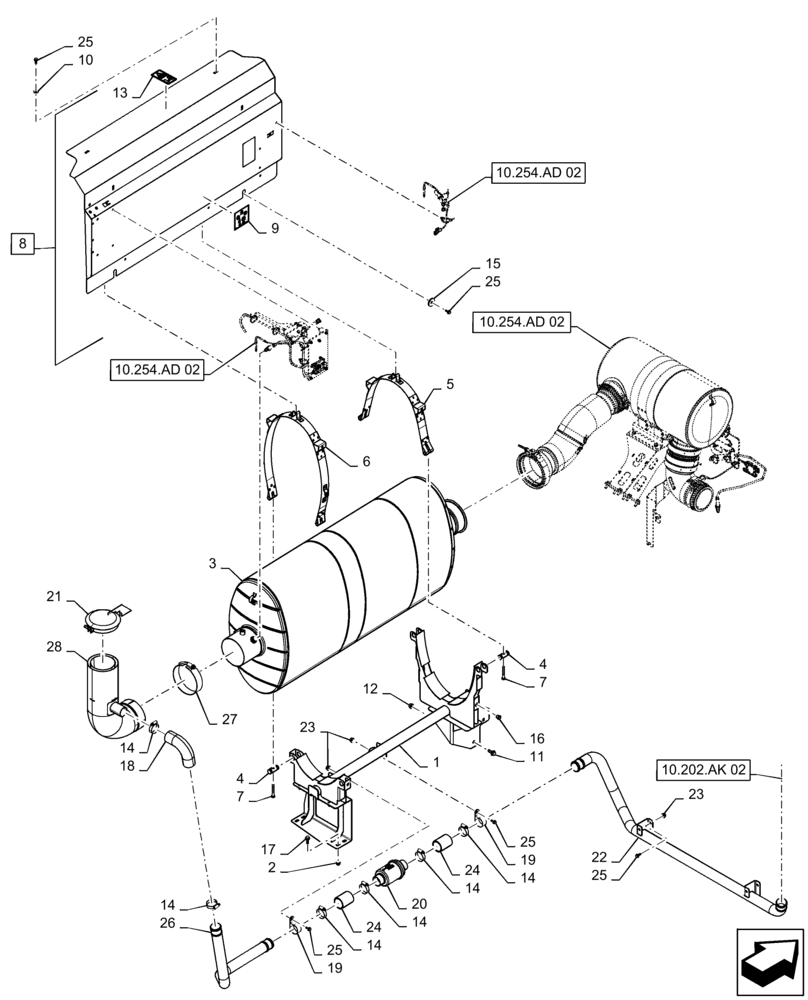

Схема запчастей Case IH 7240 - (10.254.AD[03]) - EXHAUST SYSTEM (10) - ENGINE
26
5
25
25
14
1
24
10.254.ad 02
4
20
24
13
7
18
28
10.202.ak 02
8
15
21
22
16
9
12
2
19
14
25
23
10.254.ad 02
10
3
7
27
14
14
19
4
17
23
11
25
6
14
10.254.ad 02
14
25

Артикул

Название

Примечание

Количество

1

47468835

SUPPORT

Muffler

1шт.

2

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

3

47447511

MUFFLER

Selective Catalytic Reduction

1шт.

4

84123471

PIN,22mm OD x 58mm OAL, 2 Grooves

4шт.

5

47367111

STRAP

Muffler Securing, 439.2mm ID x 363mm H

1шт.

6

84591328

STRAP

Muffler Securing, 325mm ID x 592mm H

1шт.

7

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

4шт.

8

47701752

SHIELD

Heat, Incl 9, 13

1шт.

9

47692590

DECAL

Def Tank - Clean Machine

1шт.

10

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

3шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

3шт.

13

84004742

DECAL

Caution, Hot Surface

1шт.

14

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

6шт.

15

395606

WASHER,13mm ID x 42mm OD x 5mm Thk

2шт.

16

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

2шт.

17

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

18

47457681

ELBOW,50.8mm ID, 90 Degree

Aspiration

1шт.

19

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

20

87443913

VALVE

Check, 51mm OD x 197.5mm L

1шт.

21

47730231

CAP

Exhaust

1шт.

22

47604471

TUBE,50mm OD

Aspiration

1шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

24

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

2шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

26

47528683

TUBE

Aspiration, 50.8mm OD x 685.8mm L

1шт.

27

47655904

CLAMP,157.73mm ID x 38.1mm W

Exhaust Stack

1шт.

28

47488251

EXHAUST SYSTEM PIPE

Upper Stack

1шт.

Выбрано товаров: 28
