Запчасти Case IH 7240 (60.150.AE[03]) - VAR - 425070, 425225, 425547, 425549, 722744 - GEARBOX, HEADER, FEEDER (60) - PRODUCT FEEDING

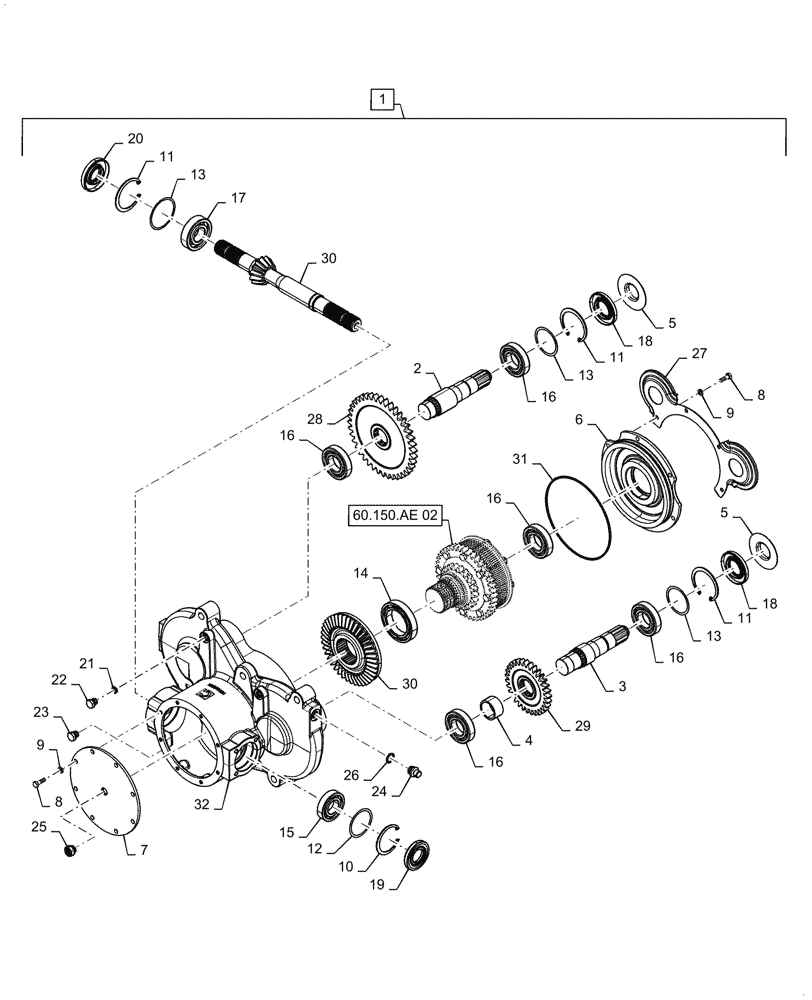

Схема запчастей Case IH 7240 - (60.150.AE[03]) - VAR - 425070, 425225, 425547, 425549, 722744 - GEARBOX, HEADER, FEEDER (60) - PRODUCT FEEDING
60.150.ae 02
31
18
32
11
19
29
10
1
30
8
16
16
14
17
20
12
26
21
9
16
16
9
2
5
11
16
5
6
30
11
18
23
13
24
13
27
28
15
4
7
13
25
22
8
3

Артикул

Название

Примечание

Количество

1

47534010

GEARBOX

Feeder, Header, Incl 2 - 32

1шт.

1

47534010R

REMAN-GEARBOX

Feeder, Header, Incl 2 - 32

1шт.

1

47534010C

CORE-GEARBOX

Core Return Number

1шт.

2

87282003

SHAFT

Conveyor Drive

1шт.

3

87536812

SHAFT

Rock Trap

1шт.

4

87536813

SPACER

Gear

1шт.

5

87282006

GUARD

Shield, Cover

2шт.

6

87696846

COVER

Gearbox

1шт.

7

87282008

COVER

Gearbox Front

1шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

14шт.

9

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

14шт.

10

370018

SNAP RING,M72, Internal

1шт.

11

300633

SNAP RING,M80, Internal

3шт.

12

87282023

SHIM KIT

62mm x 72mm

1шт.

13

87282025

SHIM KIT

72mm x 80mm

3шт.

14

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

15

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

16

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

5шт.

17

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

18

87612665

OIL SEAL,38.3mm ID x 80mm OD x 10mm Thk

2шт.

19

87612666

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

1шт.

20

87612667

OIL SEAL,33.3mm ID x 80mm OD x 12mm Thk

1шт.

21

128999

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

22

86611704

PLUG,Hex, M14 x 1.5 ORB

Hex Head

2шт.

23

87282043

MAGNETIC PLUG

Drain

1шт.

24

87282044

PLUG,M18 x 1.5, 28mm L

Breather, Pressure Relief

1шт.

25

87282045

SIGHTGLASS

Plug

1шт.

26

42283

SEALING RING

Pressure Relief Plug

1шт.

27

47510324

BRACKET

Feeder Gearbox

1шт.

28

87696844

GEAR

Driven, Conveyor, 40T

1шт.

29

87282001

GEAR

Driven, Rock Trap, 31T

1шт.

30

87282018

GEAR SET

Bevel

1шт.

31

87345122

O-RING,0.139" Thk x 7.984" ID, -266, Cl 7, 75 Duro

1шт.

32

47452971

TRANSMISSION HOUSING

Gearbox

1шт.

Выбрано товаров: 34
