Запчасти Case IH 7240 (55.510.AF[06]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

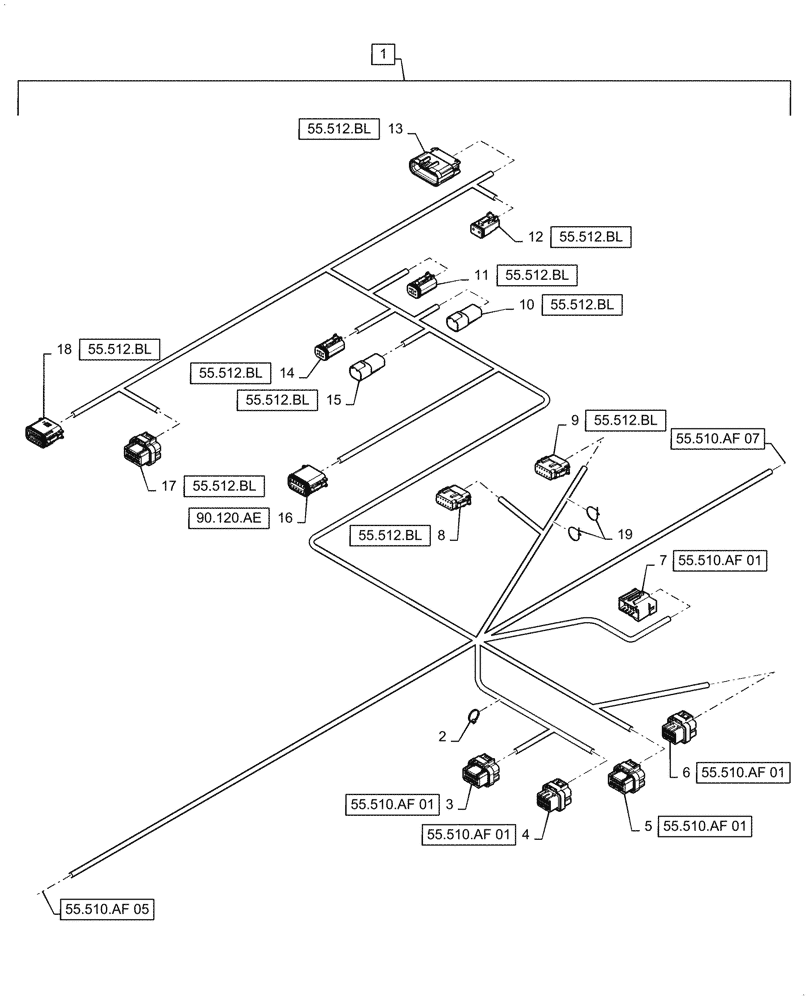

Схема запчастей Case IH 7240 - (55.510.AF[06]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS
90.120.ae
12
11
3
8
16
14
10
9
13
18
4
19
6
2
17
7
1
5
15
55.510.af 07
55.512.bl
55.512.bl
55.512.bl
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.512.bl
55.512.bl
55.512.bl
55.512.bl
55.512.bl
55.512.bl
55.512.bl
55.510.af 05

Артикул

Название

Примечание

Количество

1

47884931

WIRE HARNESS

Cab Main, Incl 2 - 19, Continued

1шт.

2

84332778

STRAP,148mm L x 16mm W

1шт.

3

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

ECU2 CN4B (Top), X-019B

1шт.

3

82017048

CABLE TERMINAL

ECU2 CN4B (Top), X-019B

11шт.

3

87410950

ELEC. TERMINAL PIN,Female

ECU2 CN4B (Top), X-019B

2шт.

4

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

ECU2 CN4A (Top), X-019A

1шт.

4

87410950

ELEC. TERMINAL PIN,Female

ECU2 CN4A (Top), X-019A

5шт.

4

82017048

CABLE TERMINAL

ECU2 CN4A (Top), X-019A

11шт.

5

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM1 CN4B (Bottom), X-015B

1шт.

5

82017048

CABLE TERMINAL

UCM1 CN4B (Bottom), X-015B

11шт.

5

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN4B (Bottom), X-015B

2шт.

6

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM1 CN4A (Bottom), X-015A

1шт.

6

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN4A (Bottom), X-015A

6шт.

6

82017048

CABLE TERMINAL

UCM1 CN4A (Bottom), X-015A

7шт.

7

87352746

ELEC CONNECTOR

Splice Block, X-179

1шт.

7

87352747

CAP

Splice Block, X-179

1шт.

7

87693733

RETAINER

Splice Block, X-179

1шт.

7

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Splice Block, X-179

9шт.

7

87693249

ELEC. TERMINAL PIN

Splice Block, X-179

1шт.

8

87700156

CONTACT HOUSING,Female, 12 Pole

AM53-2 (NTRIP), X-320B

1шт.

8

84322203

CLIP

AM53-2 (NTRIP), X-320B

1шт.

8

87700155

ELEC CONNECTOR,Female, 12 Cavities

AM53-2 (NTRIP), X-320B

1шт.

8

87705198

WEDGE

AM53-2 (NTRIP), X-320B

1шт.

8

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

AM53-2 (NTRIP), X-320B

5шт.

9

87700156

CONTACT HOUSING,Female, 12 Pole

AM53-1 (Data Transfer), X-320A

1шт.

9

84322203

CLIP

AM53-1 (Data Transfer), X-320A

1шт.

9

87700155

ELEC CONNECTOR,Female, 12 Cavities

AM53-1 (Data Transfer), X-320A

1шт.

9

87705198

WEDGE

AM53-1 (Data Transfer), X-320A

1шт.

9

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

AM53-1 (Data Transfer), X-320A

5шт.

10

87694102

ELEC CONNECTOR

AM53-1 Port to Display, X-051B

1шт.

10

87694145

ELEC CONNECTOR

AM53-1 Port to Display, X-051B

1шт.

10

87695623

ELEC. TERMINAL PIN

AM53-1 Port to Display, X-051B

3шт.

11

87694101

ELEC CONNECTOR,Female, 4 Cavities

AM53-1 Port, X-051A

1шт.

11

87694148

ELEC CONNECTOR

AM53-1 Port, X-051A

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

AM53-1 Port, X-051A

3шт.

12

87711966

PLUG

Display Harness, X-507

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Display Harness, X-507

2шт.

13

47726796

ELEC CONNECTOR

Display Harness, X-506

1шт.

13

87688853

WIRE CONNECTOR

Display Harness, X-506

1шт.

13

84193152

TERMINAL

Display Harness, X-506

4шт.

13

84143101

SEAL

Display Harness, X-506

4шт.

13

87697670

ELEC. TERMINAL PIN

Display Harness, X-506

5шт.

13

47626006

RUBBER SEAL

Display Harness, X-506

5шт.

14

87708147

ELEC CONNECTOR,Female, 4 Cavities

AM53-2 Port, X-078A

1шт.

14

84074640

LOCKING TAB,Wedge Lock

AM53-2 Port, X-078A

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

AM53-2 Port, X-078A

3шт.

15

87694154

CONTACT HOUSING,Male, 4 Pole

AM53-2 Port to GPS, X-078B

1шт.

15

87694145

ELEC CONNECTOR

AM53-2 Port to GPS, X-078B

1шт.

15

87695623

ELEC. TERMINAL PIN

AM53-2 Port to GPS, X-078B

3шт.

16

84146309

ELEC CONNECTOR

Seat Control Unit, X-073

1шт.

16

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Seat Control Unit, X-073

2шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Seat Control Unit, X-073

4шт.

17

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

RH Console, X-009

1шт.

17

87410950

ELEC. TERMINAL PIN,Female

RH Console, X-009

2шт.

17

82017048

CABLE TERMINAL

RH Console, X-009

6шт.

18

87708149

ELEC CONNECTOR

RH Console, X-041

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Console, X-041

10шт.

19

87741307

SECURING STRAP

Fir Tree

2шт.

Выбрано товаров: 58
