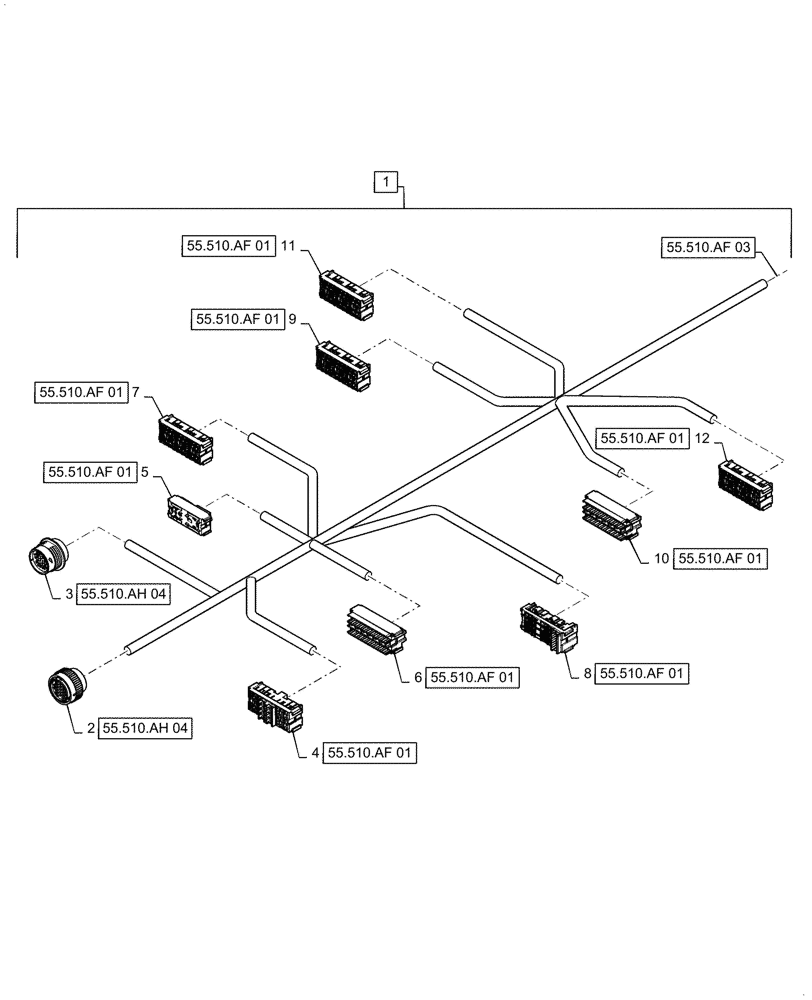

Запчасти Case IH 7240 (55.510.AF[02]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47884931

WIRE HARNESS

Cab Main, Incl 2 - 12

1шт.

2

87696950

CONNECTOR,ELECTRIC

Lower Roof Harness, X-007

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Lower Roof Harness, X-007

27шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Lower Roof Harness, X-007

3шт.

3

87426768

MULTIPOLE CONNECTOR,Male, 29 Pole

Lower Roof Harness, X-077

1шт.

3

87695623

ELEC. TERMINAL PIN

Lower Roof Harness, X-077

6шт.

4

84529039

MODULE

Cab Main Fuse Module, X-726D

1шт.

4

87301957

TERMINAL CONNECTOR,1 - 2 mm2

Cab Main Fuse Module, X-726D

2шт.

4

84529032

TERMINAL

Cab Main Fuse Module, X-726D

8шт.

4

84491250

TERMINAL

Cab Main Fuse Module, X-726D

4шт.

4

84127682

ELEC CONNECTOR

Cab Main Fuse Module, X-726D

1шт.

4

84546216

TERMINAL

Cab Main Fuse Module, X-726D

4шт.

4

84491251

TERMINAL

Cab Main Fuse Module, X-726D

4шт.

5

87733587

ELEC CONNECTOR

Cab Main Relay Module, X-727D

1шт.

5

84164961

TERMINAL

Cab Main Relay Module, X-727D

2шт.

5

84247613

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

Cab Main Relay Module, X-727D

2шт.

6

87733581

FUSE BOX

Cab Main Fuse Module, X-727A

1шт.

6

84123442

TERMINAL

Cab Main Fuse Module, X-727A

21шт.

6

84127682

ELEC CONNECTOR

Cab Main Fuse Module, X-727A

4шт.

7

84526304

MODULE

Cab Main Relay Module, X-727C

1шт.

7

84491250

TERMINAL

Cab Main Relay Module, X-727C

8шт.

7

84529032

TERMINAL

Cab Main Relay Module, X-727C

14шт.

7

84546216

TERMINAL

Cab Main Relay Module, X-727C

4шт.

7

84491251

TERMINAL

Cab Main Relay Module, X-727C

4шт.

8

84529037

MODULE

Cab Main Relay Module, X-272B

1шт.

8

84491252

ELEC. TERMINAL PIN

Cab Main Relay Module, X-272B

4шт.

8

84491250

TERMINAL

Cab Main Relay Module, X-272B

4шт.

9

84526304

MODULE

Cab Main Relay Module, X-728C

1шт.

9

84491250

TERMINAL

Cab Main Relay Module, X-728C

6шт.

9

84529032

TERMINAL

Cab Main Relay Module, X-728C

9шт.

9

84491251

TERMINAL

Cab Main Relay Module, X-728C

2шт.

10

87733581

FUSE BOX

Cab Main Fuse Module, X-728A

1шт.

10

84127682

ELEC CONNECTOR

Cab Main Fuse Module, X-728A

8шт.

10

84123442

TERMINAL

Cab Main Fuse Module, X-728A

15шт.

11

84526304

MODULE

Cab Main Relay Module, X-728D

1шт.

11

84529032

TERMINAL

Cab Main Relay Module, X-728D

14шт.

11

84491251

TERMINAL

Cab Main Relay Module, X-728D

10шт.

11

84546216

TERMINAL

Cab Main Relay Module, X-728D

2шт.

12

84526304

MODULE

Cab Main Relay Module, X-728B

1шт.

12

84529032

TERMINAL

Cab Main Relay Module, X-728B

10шт.

12

84491250

TERMINAL

Cab Main Relay Module, X-728B

2шт.

12

84546216

TERMINAL

Cab Main Relay Module, X-728B

4шт.

12

84491251

TERMINAL

Cab Main Relay Module, X-728B

8шт.
