Запчасти Case IH 7240 (50.200.AB[01]) - CONDENSER, A/C & HEATER HOSES (50) - CAB CLIMATE CONTROL

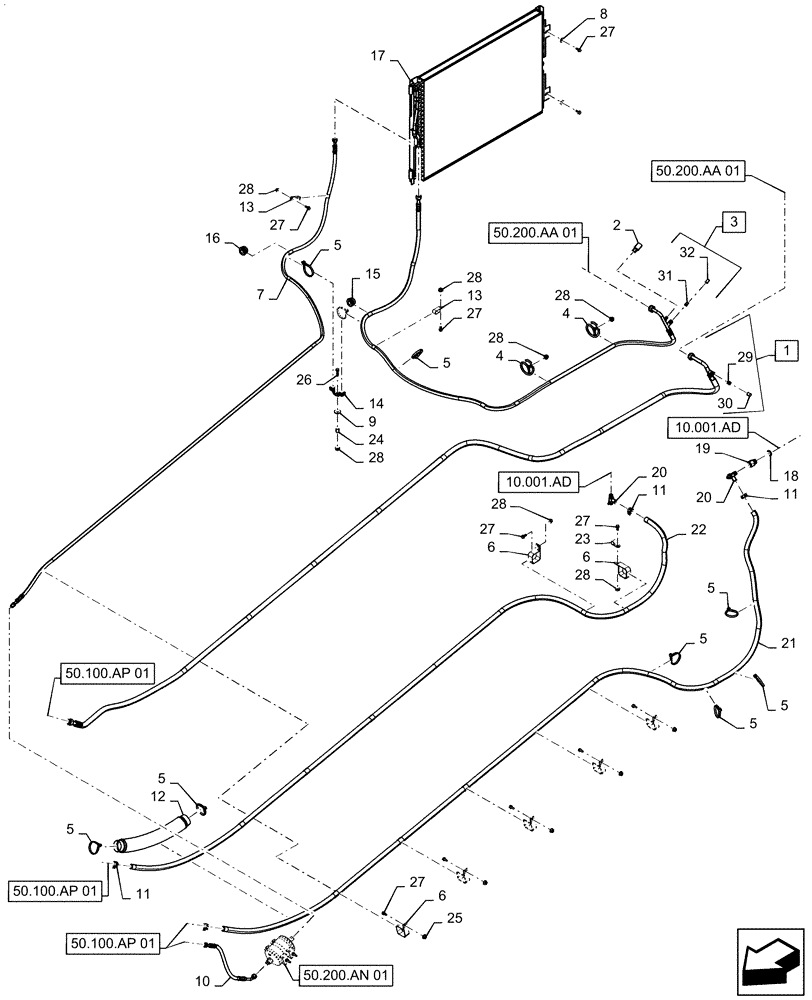

Схема запчастей Case IH 7240 - (50.200.AB[01]) - CONDENSER, A/C & HEATER HOSES (50) - CAB CLIMATE CONTROL
50.200.an 01
19
28
27
28
18
27
24
5
28
5
28
14
5
12
11
20
5
10
13
15
3
7
11
30
21
5
6
17
5
27
2
27
29
4
6
28
6
27
11
26
32
5
1
28
5
16
4
31
22
8
23
13
9
27
25
28
20
10.001.ad
10.001.ad
50.100.ap 01
50.100.ap 01
50.100.ap 01
50.200.aa 01
50.200.aa 01

Артикул

Название

Примечание

Количество

1

47390562

A/C HOSE

Suction, 15.9mm ID x 24.5mm OD x 5040mm L, Incl 29, 30

1шт.

2

87000227

SWITCH, A/C HIGH PRE

Open At 400 P.S.I., Close At 250 P.S.I.

1шт.

3

47390564

A/C HOSE

Compressor Discharge, 10.5mm ID x 18.4mm OD x 3560mm L, Incl 31, 32

1шт.

4

84062500

HOLDER

A/C Line

2шт.

5

529070

CABLE TIE,368.3mm L

9шт.

6

87000226

HOSE CLAMP

A/C Line, 26mm W

7шт.

7

47390563

A/C HOSE

Condensor to Dryer, 8mm ID x 15.7mm OD x 3735mm L

1шт.

8

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

9

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

10

84397843

A/C HOSE

Cab to Dryer, 7.9mm ID x 15.3mm OD x 429mm L

1шт.

11

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

12

84607268

SLEEVE

Protective, 105.4mm OD x 400mm L

1шт.

13

620019

CLAMP

Hose, 3/4" W

2шт.

14

84360209

BASE

Tie, 89.4mm L

1шт.

15

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

16

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

17

87610363

CONDENSER

A/C

1шт.

18

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

19

47555220

ADAPTER

M22 x 1.5 x 3/8" - 18

1шт.

20

301803R1

SHUT-OFF VALVE

90°, Return/Supply Line

2шт.

21

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Supply, Cut From Bulk, 4.52M

1шт.

22

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Return, Cut From Bulk, 4.23M

1шт.

23

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

24

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

1шт.

25

86981461

FLANGE NUT,M8 x 1.25, Cl 8

5шт.

26

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

1шт.

27

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

11шт.

28

87681210

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

29

86511146

VALVE,Shrader

A/C Suction Hose

1шт.

30

86511149

CAP

A/C Suction Hose

1шт.

31

86511147

CONTROL VALVE

Shrader, A/C Discharge Hose

1шт.

32

86511148

CAP

A/C Discharge Hose

1шт.

Выбрано товаров: 32
