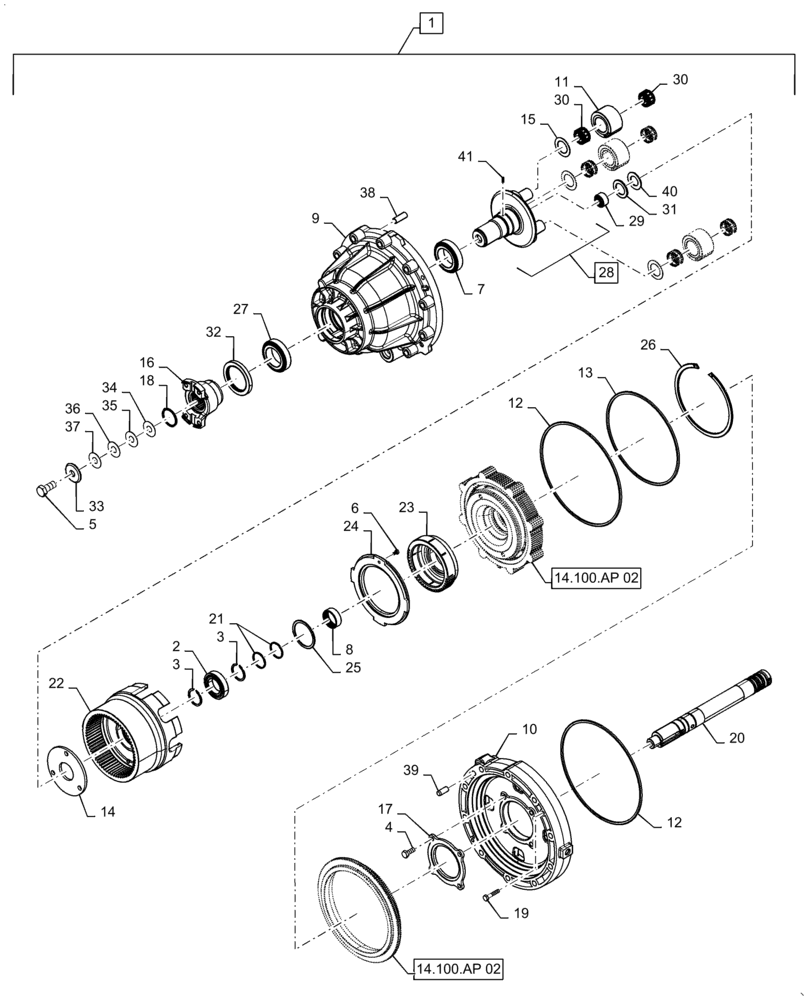

Запчасти Case IH 7240 (14.100.AP[01]) - VAR - 425465, 425361, 425362, 425464 - VARIATOR, ROTOR (14) - MAIN GEARBOX & DRIVE

1

86998846

VARIATOR

Rotor Variator, Incl 2 - 41

1шт.

1

86998846R

REMAN-GEARBOX

Rotor Variator

1шт.

1

86998846C

CORE-GEARBOX

Return Number

1шт.

2

A75193

BALL BEARING,1.5748" ID x 2.6882" OD x 0.5906" Thk

1шт.

3

87281477

SNAP RING

37mm ID x 40.4mm OD

2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

7шт.

5

514-1021

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

1шт.

6

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

1шт.

7

225805A1

BEARING ASSY,60mm ID x 95mm OD x 23mm W

1шт.

8

86996784

NEEDLE BEARING,39.99mm ID x 46.98mm OD x 15.85mm W

1шт.

9

87281492

HOUSING

Case, Front

1шт.

10

86999536

PLATE

Center

1шт.

11

87281450

PLANETARY GEAR

25T, 38mm ID x 67.5mm OD x 40mm W

3шт.

12

87281428

RING

Reverse Piston, Outer, 253mm ID x 264.4mm OD x 3.4mm W

2шт.

13

87281429

RING

Reverse Piston, Inner, 221mm ID x 232.4mm OD x 3.4mm W

1шт.

14

87281451

PLATE WASHER

47mm ID x 127mm OD x 6mm Thk

1шт.

15

87281508

THRUST WASHER

32mm ID x 50mm OD x 1.2mm Thk

3шт.

16

87281433

YOKE

5C, Driveshaft, Output

1шт.

17

87281434

RETAINER

86mm ID x 120mm OD

1шт.

18

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

19

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

20

87675694

SHAFT

Rotor Variator, Sun Gear, 13T, 390.5mm L

1шт.

21

84205621

SEALING RING

Shaft Seal, 37.64mm ID x 41.20mm OD x 2.3mm W

2шт.

22

87281443

RING GEAR,207mm OD, W/ Ring Gear

Drum, 65T, 47mm ID

1шт.

23

87281445

HUB

39T, Drive, 63.5mm ID x 137.2mm OD

1шт.

24

87281446

PLATE

Clutch End, 126mm ID x 183mm OD

1шт.

25

87281447

RING,64.7mm ID x 71.3mm OD x 2.1mm Thk

Forward Piston, Inner

1шт.

26

87281501

SNAP RING

193.2mm OD

1шт.

27

87281696

BEARING ASSY,50mm ID x 110mm OD x 29.25mm W

1шт.

28

87640687

SHAFT ASSY.

Output, Incl 41

1шт.

29

87678416

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 16mm W

1шт.

30

87281504

NEEDLE BEARING,32mm ID x 38mm OD x 20mm W

6шт.

31

87281505

THRUST BEARING,30mm ID x 47mm OD x 2.8mm Thk

1шт.

32

S8820S00F

OIL SEAL

65mm ID x 88mm OD

1шт.

33

S8860S00F

THRUST WASHER

18mm ID x 50mm OD

1шт.

34

S9950S00F

SHIM,0.1mm Thk

1шт.

35

S9960S00F

SHIM,0.31mm Thk

1шт.

36

S9970S00F

SHIM,0.51mm Thk

1шт.

37

S9980S00F

SHIM,0.71mm Thk

1шт.

38

352828A1

SPRING

Return, 8mm ID x 12mm OD

24шт.

39

837-12030

DOWEL,M12 x 30mm OAL

2шт.

40

87281507

THRUST WASHER

25mm ID x 45mm OD

1шт.

41

14161370

LOCK PIN,M3 x 8mm OAL, Slotted

1шт.
