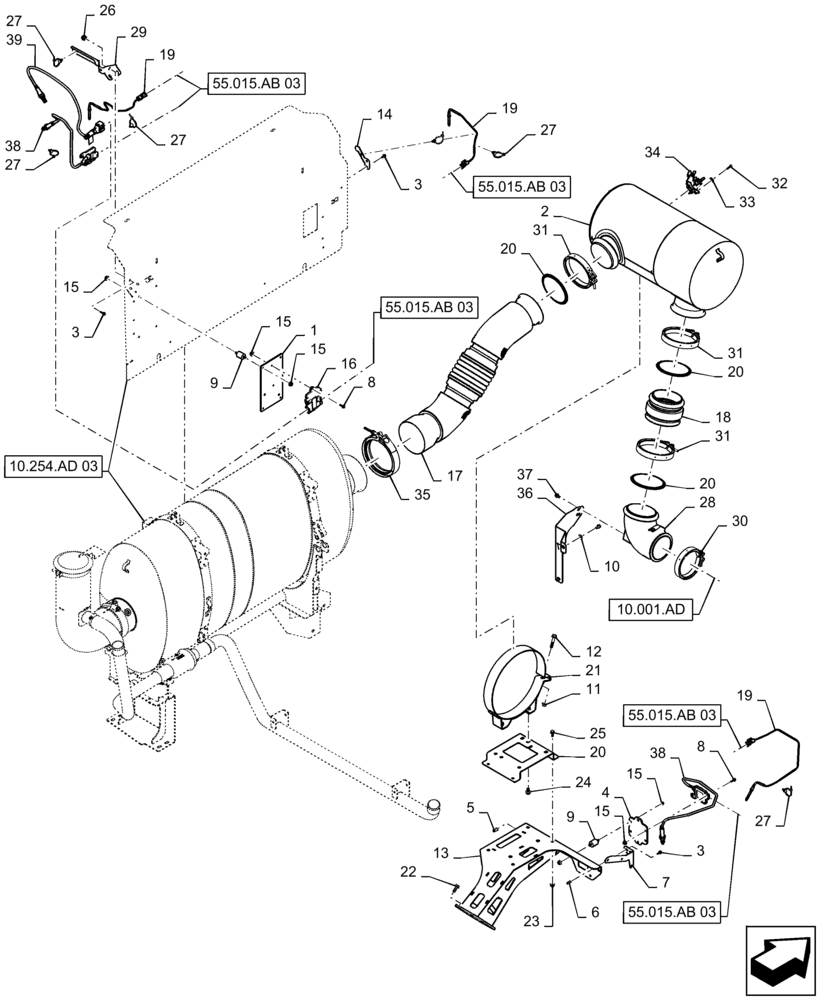

Запчасти Case IH 7240 (10.254.AD[02]) - EXHAUST SYSTEM (10) - ENGINE

1

47687878

SUPPORT

Bracket, NOX Sensor, 241.3mm L x 136.5mm W

1шт.

2

47447524

MUFFLER

Diesel Oxidation Catalyst

1шт.

3

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

7шт.

4

47687880

SUPPORT

Bracket, NOX Sensor, 108mm L x 134.6mm W

1шт.

5

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

3шт.

6

84578718

RIVET,Flng, 9mm OD x 18mm L

2шт.

7

47697691

SUPPORT

Bracket, Mounting, ECU

1шт.

8

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

6шт.

9

47671808

DAMPER,M6 x 1.0 x 15mm, 25mm OD x 60mm OAL

6шт.

10

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

11

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

12

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

2шт.

13

47697692

SUPPORT

Bracket, DOC Muffler

1шт.

14

47604814

SUPPORT

Exhaust Temperature Sensor, Bracket

1шт.

15

86050300

FLANGE NUT,M6 x 1.0, Cl 10

18шт.

16

47368959

ECU

NH3

1шт.

17

47630076

TUBE,Flex Section

Exhaust, 721mm L

1шт.

18

47433465

FLEXIBLE JOINT,Reducer, 135mm ID to 124mm ID

1шт.

19

47478880

TEMPERATURE SENDER,50mm, Closed

Temperature, Exhaust

3шт.

20

47684294

GASKET,133.8mm ID x 154mm OD, 5 Layer

Exhaust

3шт.

21

47647302

CLAMP,326mm ID, M10 x 1.5

DOC Muffler

2шт.

22

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

24

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

26

86610198

INSERT,M6 x 1

5шт.

27

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

13шт.

28

47433952

ELBOW,124mm ID to 110mm ID

1шт.

29

47705212

SUPPORT

Bracket. NOX Sensor, 306mm L

1шт.

30

47415584

CLAMP,138mm ID

Turbo

1шт.

31

47390971

CLAMP,158mm ID, T - Bolt

3шт.

32

14432221

HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8

3шт.

33

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

34

47537810

INJECTOR, EMISSIONS,12 KG/HR

Denox, 2.2

1шт.

34

47537810R

REMAN-INJEC EMISSION

Denox

1шт.

34

47537810C

CORE-INJEC EMISSION

Return Number

1шт.

35

47511343

CLAMP,156mm ID, T - Bolt, V - Band

Exhaust

1шт.

36

47701926

SUPPORT

Exhaust Elbow

1шт.

37

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

38

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX

2шт.

39

47520140

SENSOR,8 Pin

NOX

1шт.
