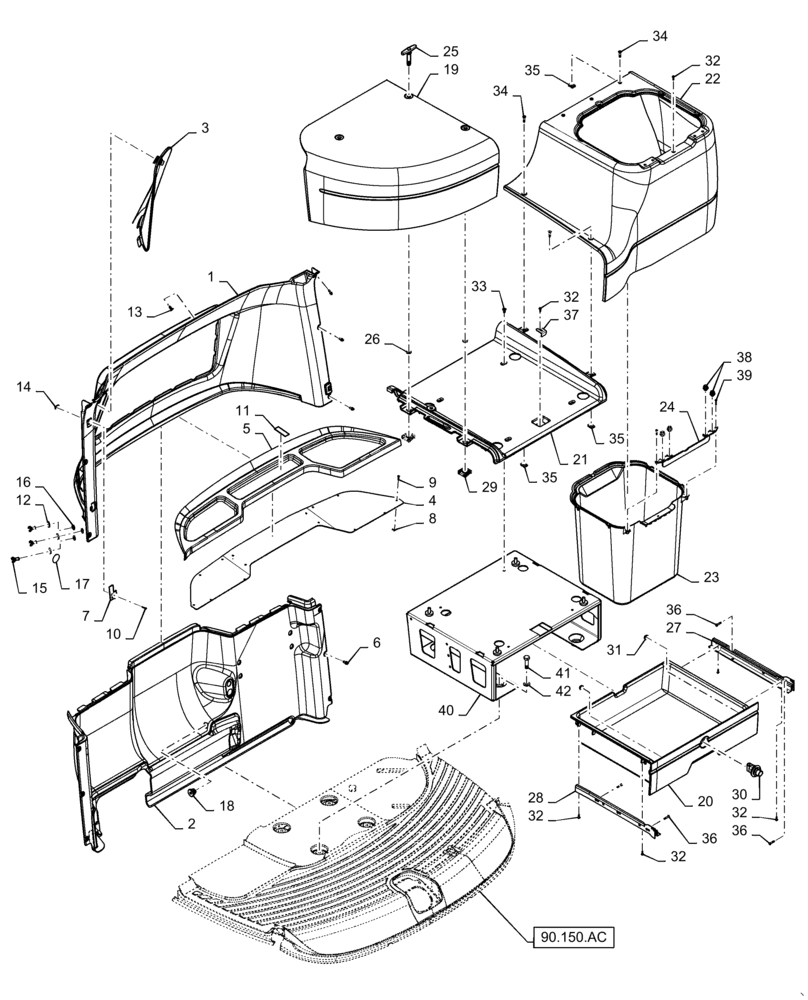

Запчасти Case IH 7240 (90.160.AH[01]) - VAR - 425357 - PANEL, CAB, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47497633

LINER

Rear, Upper, Case IH Deluxe

1шт.

2

47637109

LINER

Rear, Lower, Case IH

1шт.

3

47422229

COVER ASSY

Fuse Panel, Deluxe

1шт.

4

84562813

REINFORCEMENT

Rear

1шт.

5

47683687

LID

Rear, Parcel Shelf

1шт.

6

84563392

PLASTIC PLUG

Push, 30mm L

12шт.

7

86520824

HOOK

Coat

1шт.

8

47395852

SPRING NUT

Retainer

14шт.

9

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

14шт.

10

86050251

SCREW,Phillips Drive, Pan HD, M4 x 25mm, Cl 4.8

2шт.

11

87284035

FASTENER,25.4mm W x 76mm OAL

Dual Lock

8шт.

12

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

13

93199C1

FASTENER

Plastic, Tree Clip

3шт.

14

47608153

SPRING NUT

M4

2шт.

15

87532870

THREADED INSERT,Rivnut, M4, 8mm OD x 16.6mm OAL, 11.9mm Shoulder

3шт.

16

84563251

PLUG

Plastic, Case IH

3шт.

17

87283846

TAPE

25.4mm OD

6шт.

18

47519636

GROMMET

Hydro

1шт.

19

84577164

COVER

Case IH, Wheat

1шт.

20

84546825

TRAY

Case IH, Wheat

1шт.

21

84546257

COVER

Case IH, Wheat

1шт.

22

84547127

PEDESTAL

Instructional Seat, Case IH

1шт.

23

84547153

TRAY

Removable

1шт.

24

84547155

BRACKET

Support

1шт.

25

84511750

PLUG

Hold Down

3шт.

26

84499241

RETAINER

Washer

3шт.

27

84393181

GUIDE

LH, 350mm L

1шт.

28

84404363

GUIDE

RH, 350mm L

1шт.

29

87732164

LOCKING PLATE

Quarter Turn Lock Receiver

3шт.

30

84402856

LOCK

Storage Bin

1шт.

31

84553150

BUMPER

Rubber

2шт.

32

47391906

SCREW,Torx, M3.5 x 1.65 x 12mm

11шт.

33

84187819

SCREW,Torx Flat Hd, M6 x 12mm, Cl 5.8

4шт.

34

47399711

SCREW,M5 x 0.8 x 20mm OAL

5шт.

35

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

5шт.

36

86555127

SCREW,M4 x 0.7 x 23.25mm OAL, Cl 4.8, Cntr Sunk

4шт.

37

84553364

BRACKET

Bolt

1шт.

38

86610198

INSERT,M6 x 1

4шт.

39

84492991

SCREW,Torx, M3.5 x 1.65 x 20mm

2шт.

40

47415393

SUPPORT

Seat

1шт.

41

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

42

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.
