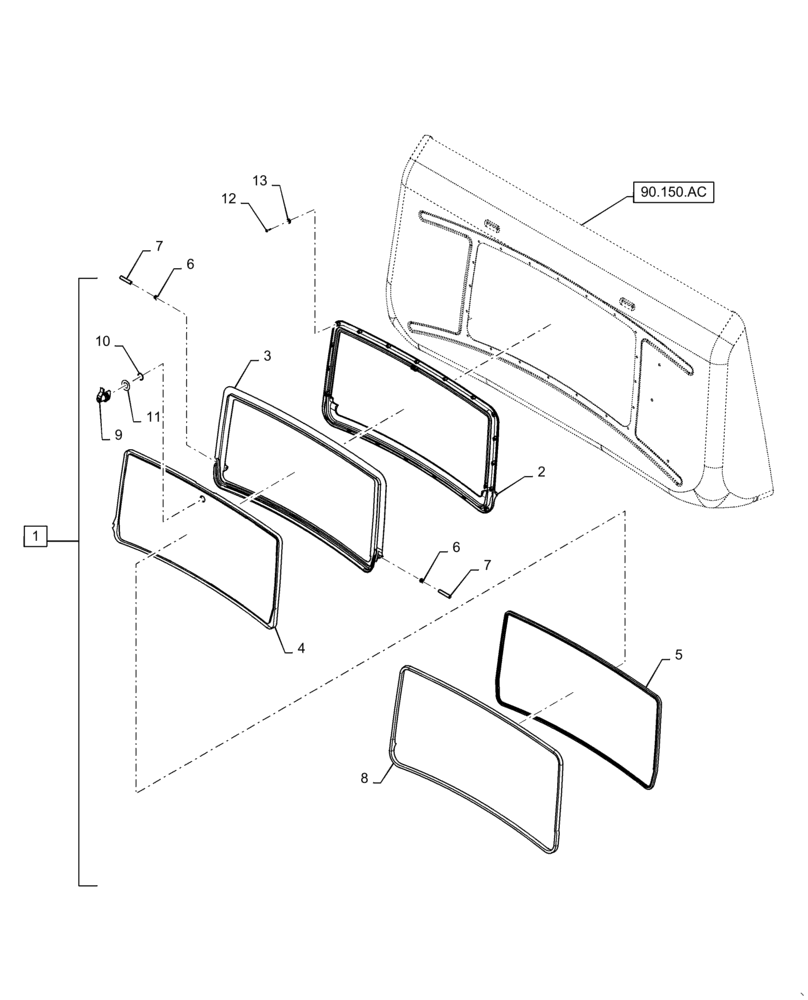

Запчасти Case IH 7240 (90.156.AB) - WINDOW, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47622357

WINDOW

Rear Cab, Incl 2 - 11

1шт.

2

47405343

WINDOW FRAME

Outer

1шт.

3

84555896

WINDOW FRAME

Inner

1шт.

4

84555903

GLASS

Rear Window

1шт.

5

47617495

SEAL

Bulb, 2.33M L, Cut to Length

1шт.

6

84561230

PLUG

Push - In, Wheat

2шт.

7

84561226

PIN,8mm OD x 45mm L

2шт.

8

9501985

SEALING STRIP

Rubber, Cut to Length

1шт.

9

84555904

LOCK

Twist

1шт.

10

84564282

SEAL,11.3mm ID x 14.1mm OD x 0.8mm Thk

Glass

1шт.

11

84606473

PLATE

Lock Mounting

1шт.

12

84404455

SCREW,Spcl Tap, Rd Wshr Hd Torx, M3.5 x 12mm

20шт.

13

47383775

SEALING RING

2.5mm ID x 14mm OD x 1.75mm Thk

20шт.
