Запчасти Case IH 7240 (90.151.AC) - VAR - 425186, 425187, 425188, 425376, 425556 - SEAT ACCESSORY (90) - PLATFORM, CAB, BODYWORK AND DECALS

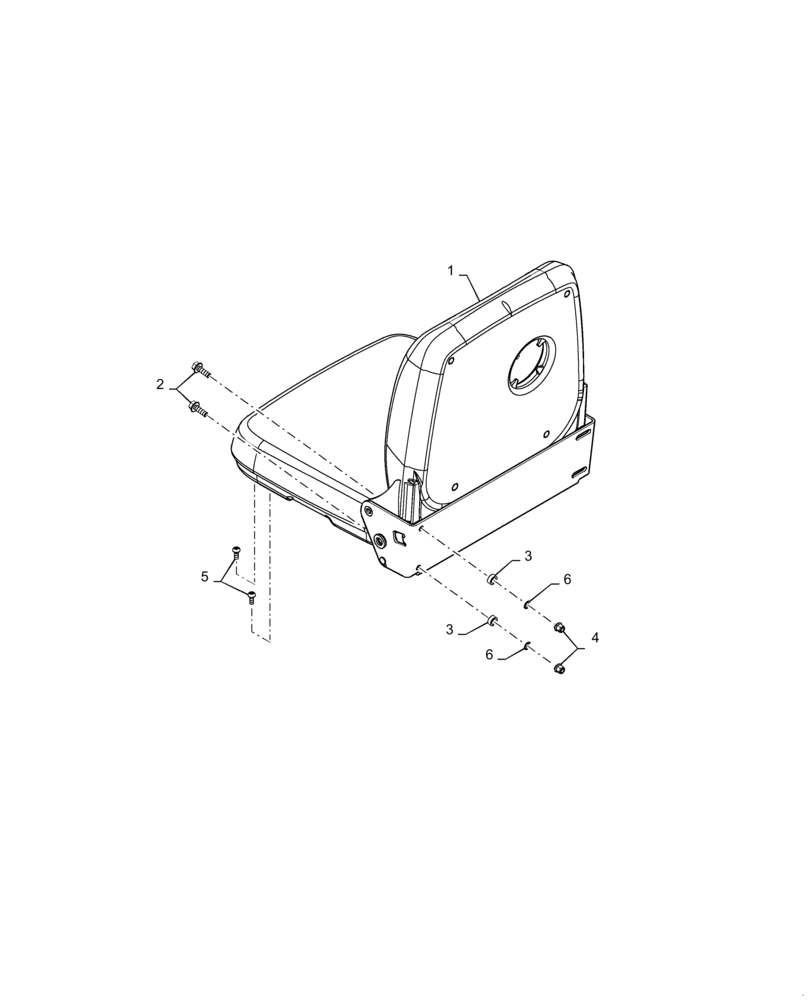

Схема запчастей Case IH 7240 - (90.151.AC) - VAR - 425186, 425187, 425188, 425376, 425556 - SEAT ACCESSORY (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
3
1
4
3
6
6
2

Артикул

Название

Примечание

Количество

1

47377843

INSTRUCTIONAL SEAT

Cut & Sewn/ FabriForm, - VAR - 425186, 425187

1шт.

1

47377792

INSTRUCTIONAL SEAT

Leather, - VAR - 425188, 425376, 425556

1шт.

2

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

3

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

4шт.

4

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

5

84187812

SCREW,Torx, Pan HD, M6 x 16mm, Cl 4.8

4шт.

6

11087976

CIRCLIP,Ext., M8, BLO

1шт.

Выбрано товаров: 7
