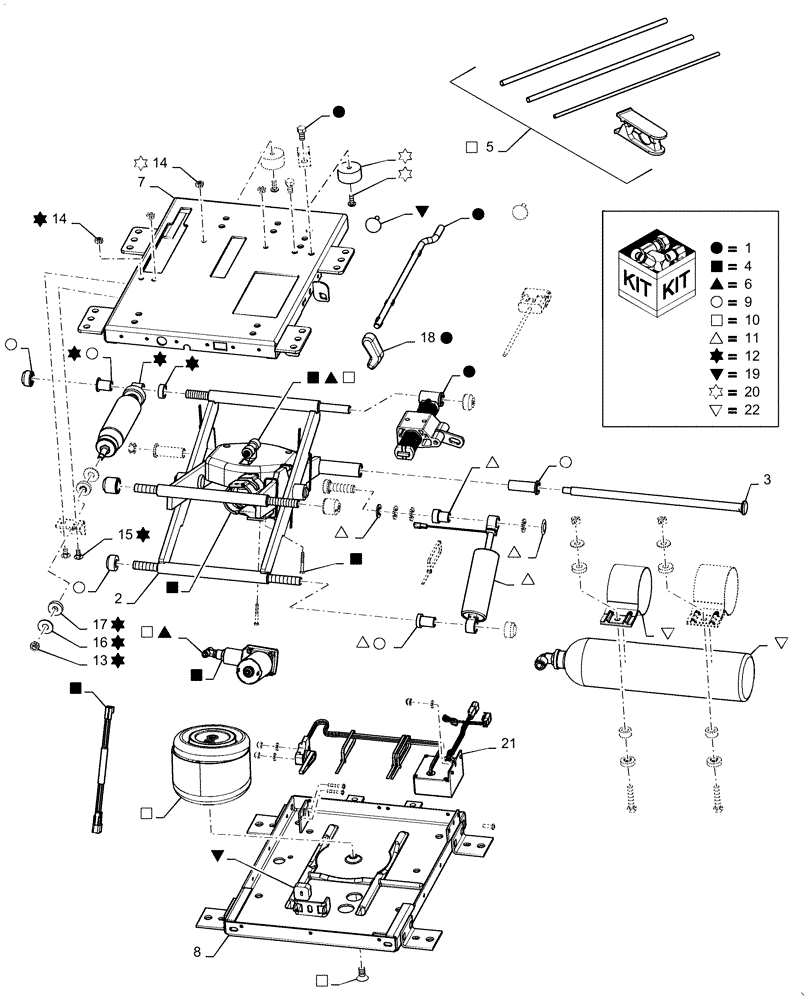

Запчасти Case IH 7240 (90.124.AN[02]) - VAR - 425556 - SEAT SUSPENSION, SEMI-ACTIVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84244765

SERVICE KIT

Isolator Latch, Incl 18

1шт.

2

47368671

SERVICE KIT

Frame, Scissors

1шт.

3

143786A1

SHAFT,308.9mm L

Bearing

1шт.

4

47368672

SERVICE KIT

Air Compressor, 12V

1шт.

5

47368664

SERVICE KIT

Air Line Tubing

1шт.

6

47368666

SERVICE KIT

Air Line Fittings

1шт.

7

47368675

PLATE

Upper Housing

1шт.

8

47368698

SERVICE KIT

Lower Housing

1шт.

9

87347967

BEARING ASSY

Seat

1шт.

10

47368706

SERVICE KIT

Air Spring

1шт.

11

47368729

SERVICE KIT

Semi-Active Shock

1шт.

12

227546A1

KIT

Isolator Shock, Incl 13 - 17

1шт.

13

230-4715

LOCK NUT,5/16"-24, GA

1шт.

14

231-1444

NUT,1/4"-20, GB

2шт.

15

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

17

A49679

BUSHING

Shock Absorber

2шт.

18

84189454

SEAT ACCESSORY

Seat Control Knob

1шт.

19

84603019

KIT

Bumper

1шт.

20

87347960

SERVICE KIT

Air Tank

1шт.

21

47368735

SERVICE KIT

Damping Control

1шт.

22

84482049

KIT

Bumper

1шт.
